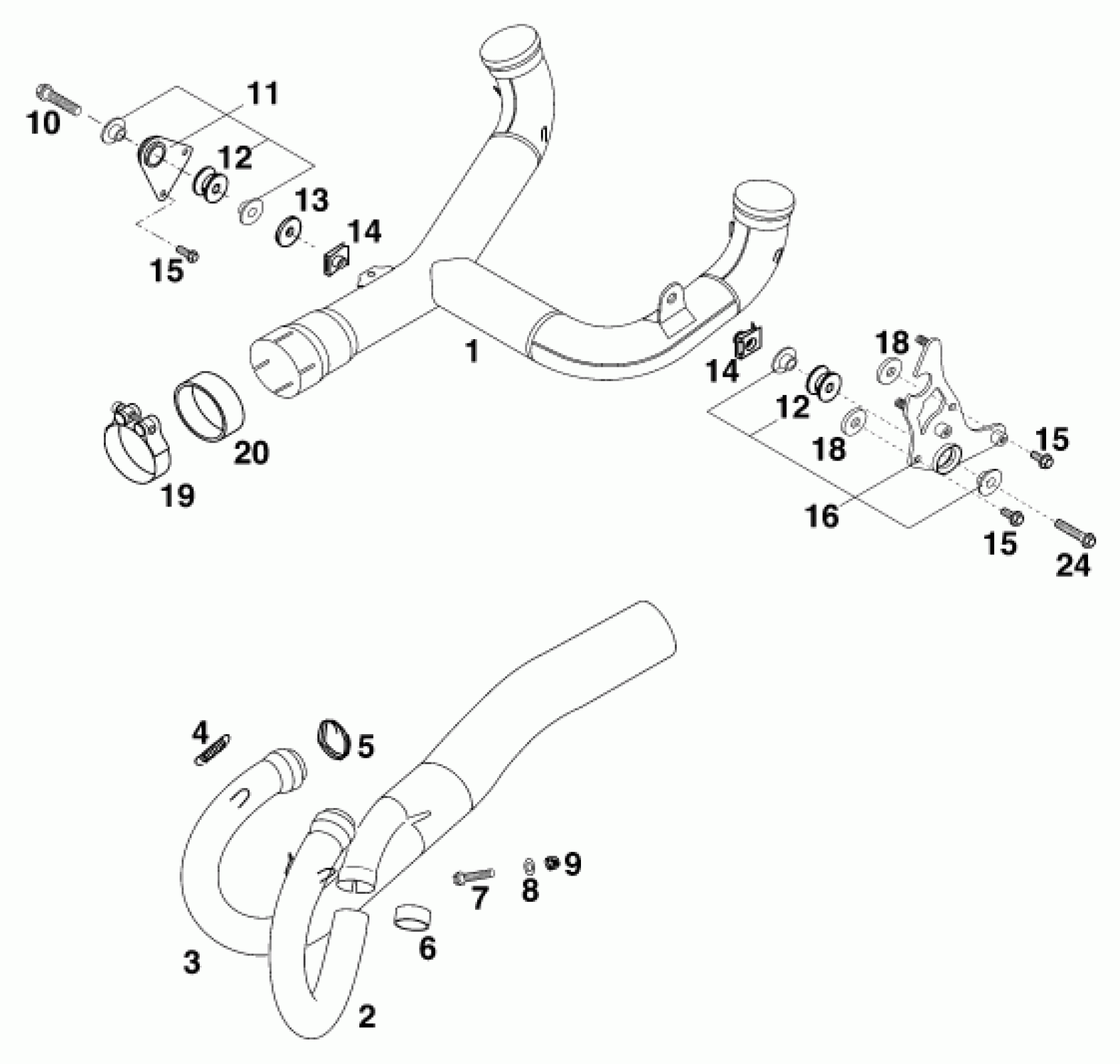

KTM 640 DUKE II SCHWARZ-MET. 2000 EXHAUST SYSTEM Diagram

#

Description

Price

1

DISTRIBUTOR TUBE SILEN.DUKE'

58705060000

Unavailable

2

EXHAUST PIPE L/S CPL.DUKE '99

58705007000

Unavailable

3

EXHAUST PIPE R/S CPL. DUKE '

58705008000

Unavailable

4

RETURN SPRING L=38 MM

54309036000

Unavailable

5

CERAMIC LINE 1 METER

58305053001

Unavailable

6

GRAPHIT RING 32X37X20

58405005000

Unavailable

7

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

8

WASHER DIN0125-A 6,4

0125060003

Unavailable

9

SELF LOCKING NUT M 6 COPPER

51010086000

Unavailable

10

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

11

BRACKET CPL. R/S BLACK '99

58705056044

Unavailable

12

damp. component silicone grey

54305068100

Unavailable

13

INSOLATE WASHER 8,5X28X3

51005067000

Unavailable

14

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

15

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

16

BRACKET CPL. L/S BLACK '99

58705055044

Unavailable

18

WASHER 6,5X11X2

54637056000

Unavailable

19

PRE SILENCER CLAMP D=53MM '99

58705058000

Unavailable

20

Graphite ring 45X50X25

58405005001

Unavailable

24

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable
