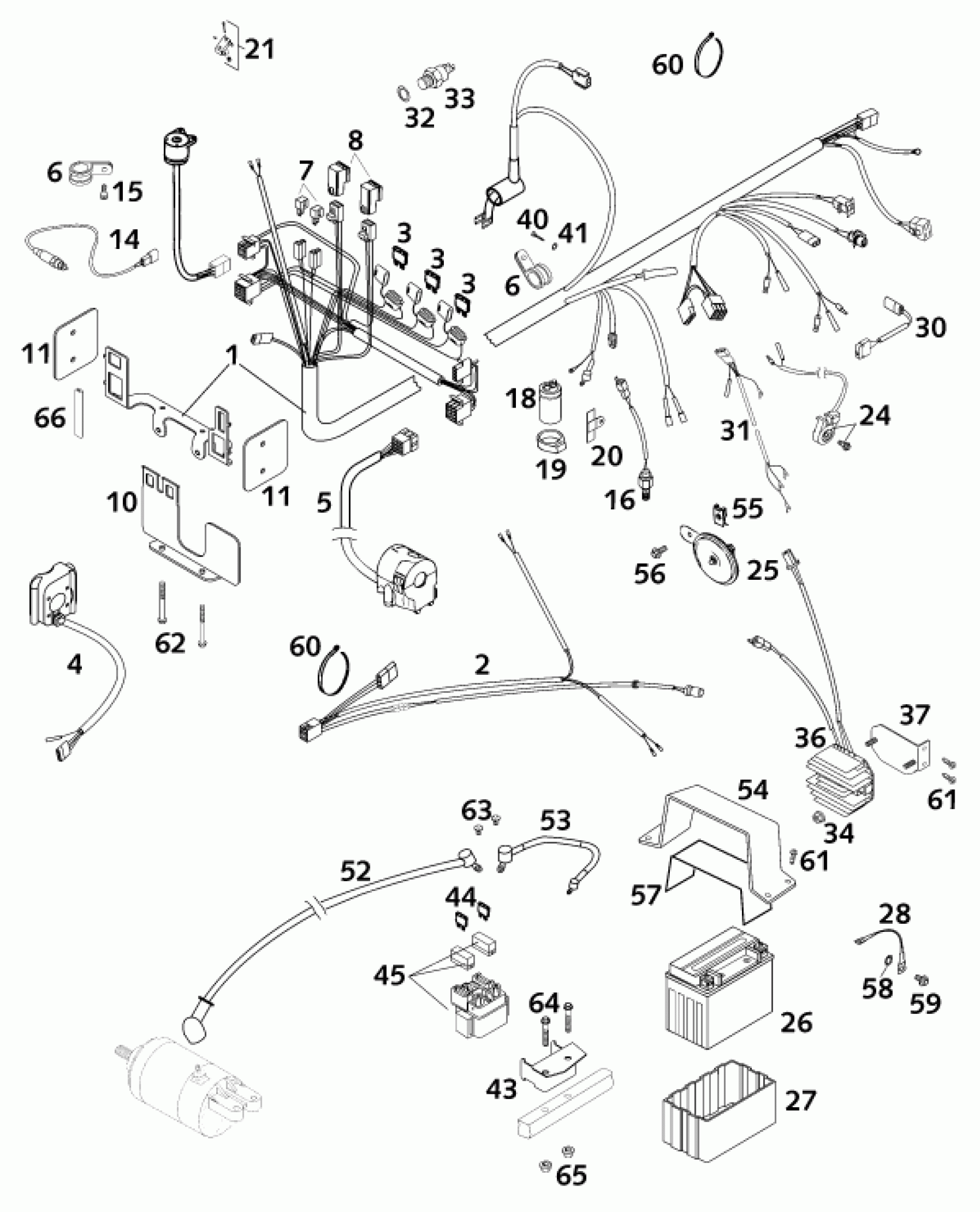

KTM 640 DUKE II ROT 2001 WIRING HARNESS Diagram

#

Description

Price

0

Cable tie 200/4.6mm black

44011076200

Unavailable

0

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

1

MAIN WIRING HARNESS DUKE '99

58711075000

Unavailable

2

WIRING HARNESS REAR DUKE 2001

58711076100

Unavailable

3

Plug-in fuse, big 10A

58011109110

Unavailable

4

START-STOP SWITCH 2000

59011074100

Unavailable

5

HEAD LIGHT SWITCH CEV LC4 '98

58411070000

Unavailable

6

CLAMP RSGU 15/12

49007439000

Unavailable

7

DIODE S3H-15 97

58411096100

Unavailable

8

STARTER RELAY '96

58411057000

Unavailable

10

SCREEN F. BRACKET DUKE '99

58711083050

Unavailable

11

COVER F. BRACKET '99

58711083020

Unavailable

14

CLUTCH SWITCH '96

58411049000

Unavailable

15

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

16

BRAKE LIGHT SWITCH REAR '98

50311051100

Unavailable

18

CONDENSATOR 25V, 10.000 MF

49111435100

Unavailable

19

CAPACITOR BRACKET

54511048000

Unavailable

20

BRACKET FOR CAPACITOR

54611448000

Unavailable

21

BRAKE LIGHT SWITCH CPL. FRONT

58313021100

Unavailable

24

SIDE STAND SWITCH CPL. '97

58411045000

Unavailable

25

DC HORN 12V NIKKO

54511060100

Unavailable

26

BATTERY 12V 8AH '96

58411053000

Unavailable

27

BATTERY COVER 96

58411053050

Unavailable

28

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

30

MICRO SWITCH LC4 '98

58431065100

Unavailable

31

WIRING HARN. EPC F. ENGINE LC4

58411085000

Unavailable

32

ALU SEALRING DIN7603-14X20X1,5

0603142015

Unavailable

33

THERMOSWITCH 80-85 DG

58035045000

Unavailable

34

Self locking nut M6 - 10

56509064100

Unavailable

36

VOLT.REGULATOR-RECTIFIER 12V

58411034100

Unavailable

37

BATTERY BRACKET REGULATOR '99

58711055000

Unavailable

40

SHEET MET.SCR.DIN7981- 4,8X13

0981480133

Unavailable

41

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

Unavailable

43

BRACKET FOR STARTER RELAY '99

58711058050

Unavailable

44

Plug-in fuse, big 20A

58011109120

Unavailable

45

Starter reley 12V 99

58211058000

Unavailable

52

STARTERCABLE 700 MM '97

58411059100

Unavailable

53

WIRING HARNESS BATTERY DUKE'99

58711086000

Unavailable

54

BRACKET FOR BATTERY DUKE '99

58711054000

Unavailable

55

clip nut M6

54603048100

Unavailable

56

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

57

METAMOLL FOR BATTERY BRACKET

58711054050

Unavailable

58

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

59

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

60

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

61

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

62

HH COLLAR SCREW M 6X65 WS=8

0015060653

Unavailable

63

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

64

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

65

Self locking nut M6 - 10

56509064100

Unavailable

66

EDGE PROTECTOR PER METER

58312085100

Unavailable
