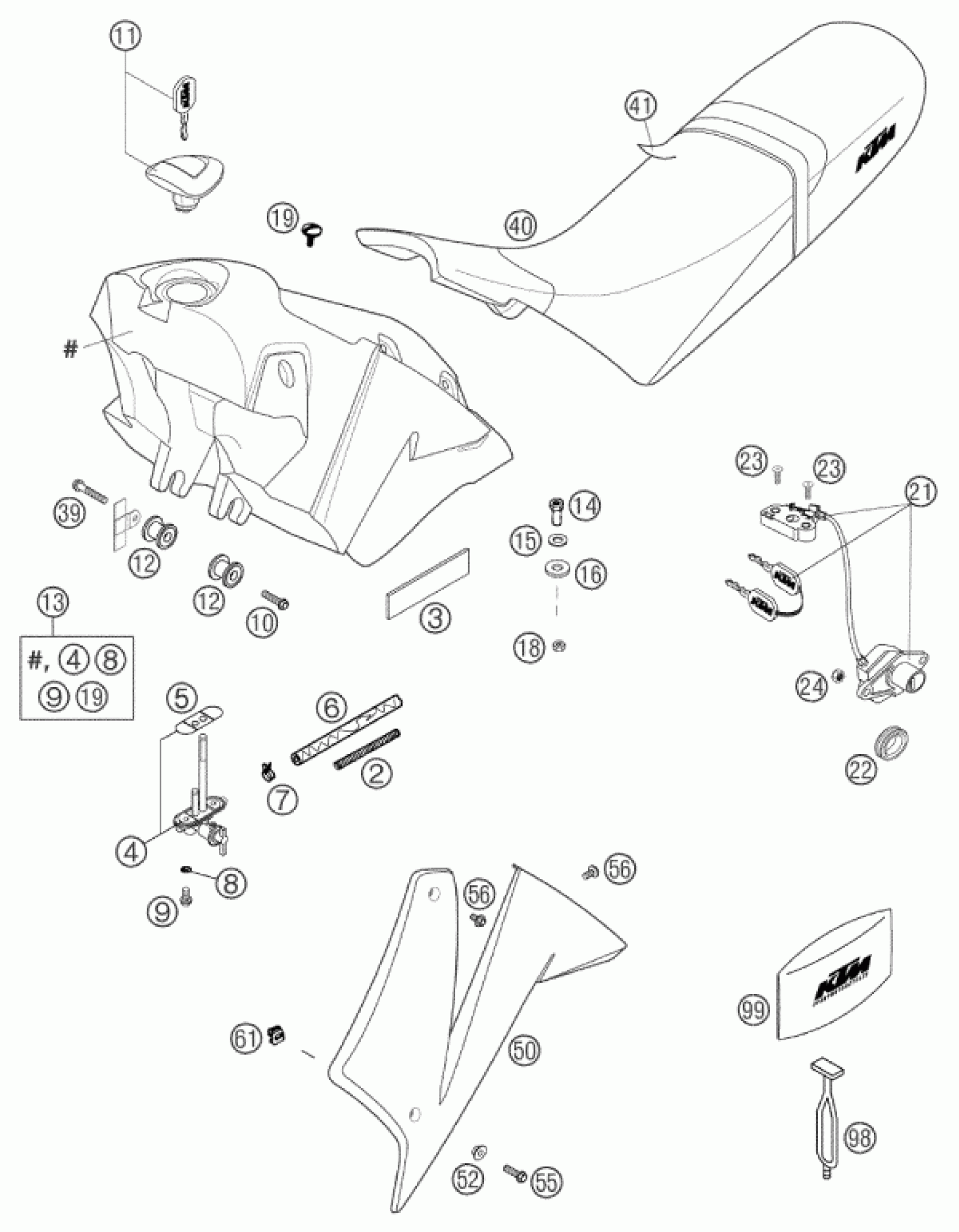

KTM 640 DUKE II ORANGE 2002 TANK, SEAT Diagram

#

Description

Price

2

PRESSURE SPRING 0,9MM

58036006100

$1.49

3

RUBBER STRIP 85X25X3 MM

54601097000

$1.49

4

FUEL COCK CPL.MIKUNI CK-69 '96

51107004000

$69.37

5

GASKET FUEL COCK MIKUNI

58307106100

$6.82

6

HOSE ID 7,5 PER METER

54435024001

Unavailable

7

CLAMP YDNAC 10128 12MM

58031005000

$3.08

8

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

9

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

10

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

11

TANK PLUG LC4 USA '99

58407008100

$112.94

12

TANK BUSHING CPL. 12 X 34 X 25

58307113250

$10.20

13

FUEL TANK 11LI.CPL.LC4 BLACK

58407013300

$383.45

14

SPECIAL NUT M8

58307014000

$6.26

15

WASHER 10,5 X 25 X 1,5

58307019000

$2.05

16

INSOLATE WASHER 12X28X3

51005067100

$2.05

40

SEAT BLACK/CARBON DUKE 2000

58707040400

$90.95

40

SEAT ORANGE/BLACK DUKE 02

58707040600

Unavailable

41

SEAT COVER BLACK/CARBON 2000

58707040450

$45.90

41

SEAT COVER ORANGE/BLACK 02

58707040650

$45.90

50

SPOILER L/S DUKE WHITE 02

5840805010021

Unavailable

50

SPOILER L/S BLACK DUKE 02

5840805010030

$133.33

50

SPOILER L/S ORANGE DUKE 02

5840805010070

$146.40

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

55

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

56

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

61

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

50

SPOILER R/S DUKE WHITE 02

5840805110021

Unavailable

50

SPOILER R/S BLACK DUKE 02

5840805110030

$133.33

50

SPOILER R/S ORANGE DUKE 02

5840805110070

$146.40

98

RUBBER L=145MM

50303018000

$6.44

99

TOOL SET DUKE '99

58729099000

$78.49

18

Hexagon nut DIN934 M8

0934080003

$2.05

19

SCREW FOR SEAT M 6X13/8

58407011000

$4.11

21

SEAT LOCK DUKE '99

58707050000

$51.72

22

RUBBER SLEEVE F.SEAT LOCK '99

58707050050

$3.08

23

FLAT HEAD SCREW DIN7991-M 5X25

0991050253

$1.49

24

Self locking nut DIN 985 M5

0985050003

$2.05

39

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08
