SWING ARM

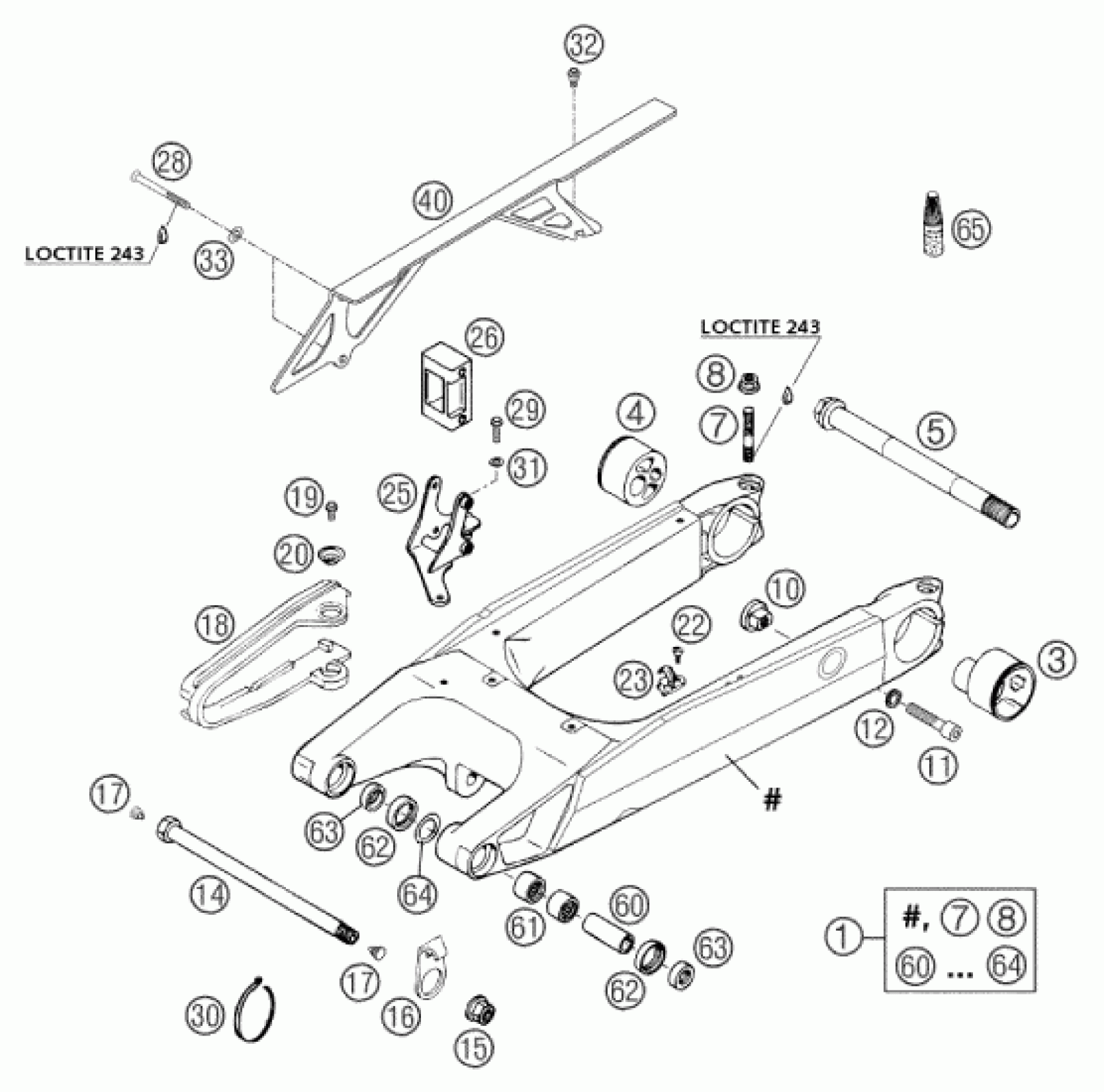

KTM 640 DUKE II ORANGE 2002 SWING ARM Diagram
#
Description
Price
1
SWINGARM CPL. DUKE 2002
58704030244
$438.95
3
ECCENTRICS L/S '94
58303030011
$65.56
4
ECCENTRICS R/S '94
58303130011
$52.11
5
WHEEL SPINDLE REAR L=232MM '94
58310085000
$38.91
7
STUD DIN0835-M10X45
0835100456
$4.35
8
COLLAR NUT M10 WS=13
54630044000
$1.49
10
BRAKE CARRIER SUPPORT
58313050000
$14.35
11
AH SCREW DIN0912-M10X45
0912100453
$3.08
12
PAIR OF WASHERS M10 NORDLOCK
50233041100
$4.11
14
54603014000
Unavailable
15
Self locking nut M14x1.5 WS19
54603015000
$5.51
16
BRAKE HOSE GUIDE '89
50230211000
$3.98
17
PLASTIC CAP SFL10
54403135000
$2.05
18
CHAIN SLIDING GUARD DUKE'94
58307073000
$26.83
19
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
20
BUCKET
72210079000
$3.00
22
SPECIAL SCREW M 5,0X10
0010050103
$2.05
23
RETAINING CLAMP FOR BRAKE HOSE
54611076000
$2.05
25
BRACKET FOR CHAIN GUIDE 02
58307068200
$29.71
26
CHAIN GUIDE SM/DUKE 2002
51007066600
$10.86
28
FLAT HEAD SCREW DIN7991 M6X55
0991060553
$1.57
29
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
30
Cable tie 200/4.6mm black
44011076200
Unavailable
31
WASHER DIN0125-A 6,4
0125060003
$1.49
32
SPECIAL SCREW M6X12,5 WS=8
59001092050
$2.05
33
WASHER F. CHAINGUARD SM 02
58404060051
$4.35
40
CHAINGUARD SM, DUKE 2002
58404060000
$28.63
60
BUSHING SLEEVE 15X20X38,75
50203081700
$17.20
61
NEEDLE BUSH HK2012V
59004031000
$15.51
62
radial shaft seal 25x32x7
0760253270
$6.63
63
BUCKET F.SHAFTSEALRING 15X25X9
54603090000
$12.43
64
STOP DISK 22,2X31,7X0,8 2000
59004033000
Unavailable
65
LOCTITE 243 BLUE 5 ML
6899785
$28.04
