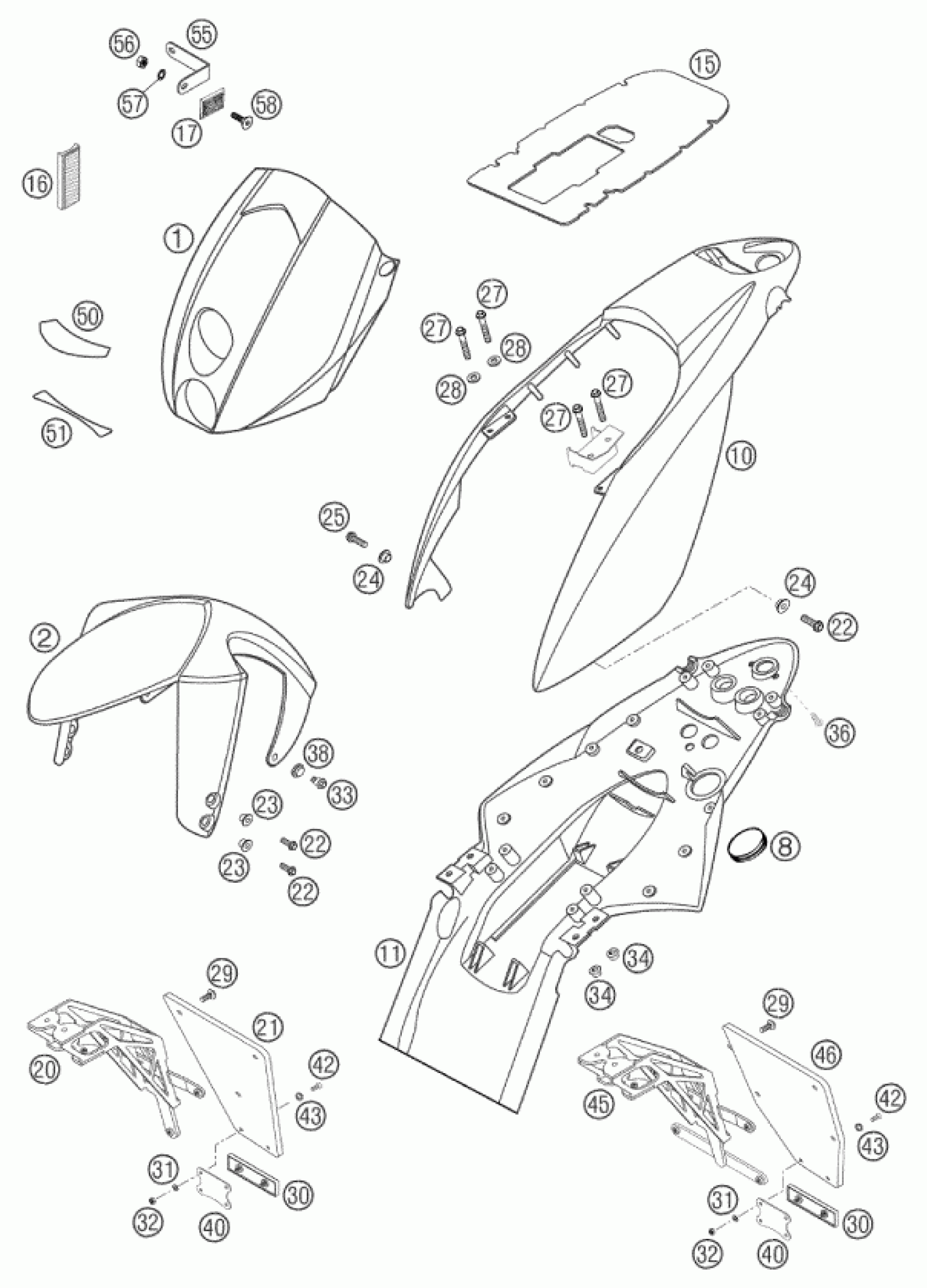

KTM 640 DUKE II ORANGE 2002 MASK, FENDERS Diagram

#

Description

Price

1

HEAD LIGHT MASK WHITE DUKE 02

5870800100021

$210.70

1

HEAD LIGHT MASK BLACK DUKE 02

5870800100030

Unavailable

1

HEAD LIGHT MASK ORANGE DUKE 02

5870800100070

Unavailable

2

FENDER FRONT DUKE WHITE 02

5870801000021

Unavailable

2

FENDER FRONT DUKE BLACK 02

5870801000030

Unavailable

2

FENDER FRONT DUKE ORANGE 02

5870801000070

$161.35

8

PLUG 37MM

54606004000

$2.05

10

REAR COVER TOP DUKE BLACK 02

5870801800030

Unavailable

11

REAR BASE DUKE '99

58708019000

Unavailable

15

CABLE COVER RUBBER 3MM '99

58708018050

$10.07

43

WASHER 6MM

40006006000

$1.49

45

NUMBER PLATE CARRIER DUKE 2000

58708015100

$94.33

46

NUMBER PLATE HOLDER DUKE 2000

58708016100

Unavailable

16

REFLECTOR YELLOW '99

58412080100

$7.75

17

SIDE REFLECTOR RED REAR

16512180100

$7.10

20

NUMBER PLATE CARRIER DUKE '

58708015000

Unavailable

21

NUMBER PLATE HOLDER DUKE '99

58708016000

Unavailable

22

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

23

BUSH FOR SPOILER 6X11X16X7,5

50308053000

$5.70

24

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

25

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

27

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

28

Washer DIN9021-A 6.4

0021060003

$2.05

29

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

30

REFLECTOR RED

58412080000

$5.23

31

WASHER DIN0125-A 5,3

0125050003

$1.49

32

Self locking nut DIN 985 M5

0985050003

$2.05

33

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

34

Self locking nut M6 - 10

56509064100

$2.05

36

SCREW FOR PLASTIC 50X12

0016050121

$2.05

38

RUBBER 60 SHORE EPDM BLACK

58708010050

$2.44

40

BRACKET FOR REFLECTOR

58412080050

$6.07

42

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

50

HEAT SHIELD HIGH BEAM

58708001051

$2.61

51

HEAT SHIELD LOW BEAM

58708001052

$2.06

55

HOLDER FOR REFLECTOR

58712081000

$6.07

56

Hex. nut DIN 934 M6

0934060003

$1.49

57

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.49

58

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05
