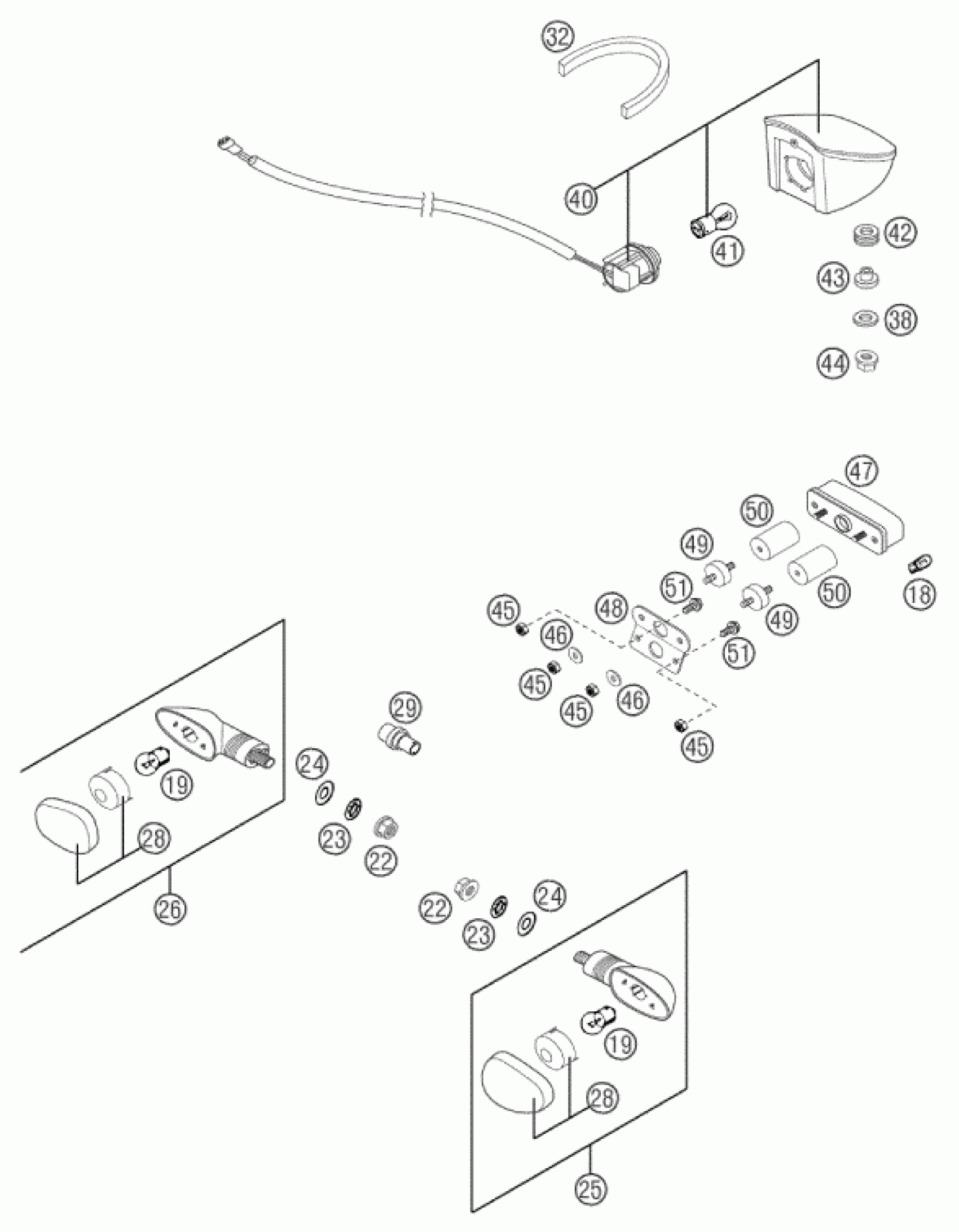

KTM 640 DUKE II ORANGE 2002 LIGHTING SYSTEM Diagram

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

BULB 12V 10W (BA15S)

44111015100

$3.08

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

washer DIN 125 A 10.5

0125100003

$2.05

FLASHER CPL.FRONT L/S REAR R/S

58414025100

$29.30

FOAM 4X9MM PER METER

58211001063

Unavailable

Washer DIN9021-A 6.4

0021060003

$2.05

REAR LIGHT CPL. LC4 2001

58414040100

$80.31

FLASHER CPL.FRONT R/S REAR L/S

58414026100

$29.03

FLASHER LENS L/S & R/S 02

58414028100

$6.63

FLASHER SUPPORT M10X1,25 SW=17

58714030000

$9.41

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

$12.61

RUBBER SLEEVE D=12MM

41001052000

$4.11

REAR LIGHT BUSHING

58714048000

$5.23

Self locking nut M6 - 10

56509064100

$2.05

Self locking nut DIN 985 M5

0985050003

$2.05

washer DIN 9021 A - 5.3

0021050003

$1.49

LICENSE-PLATE ILLUMINATION '98

58414047000

$14.67

BRACKET F.LICENSE-PLATE ILLUM.

58708015060

Unavailable

RUBBER GROMMET 20X10-M6X12 (2)

49001426000

Unavailable

CONNECTING PIECE M6/M5 L=25MM

58708015070

Unavailable

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08
