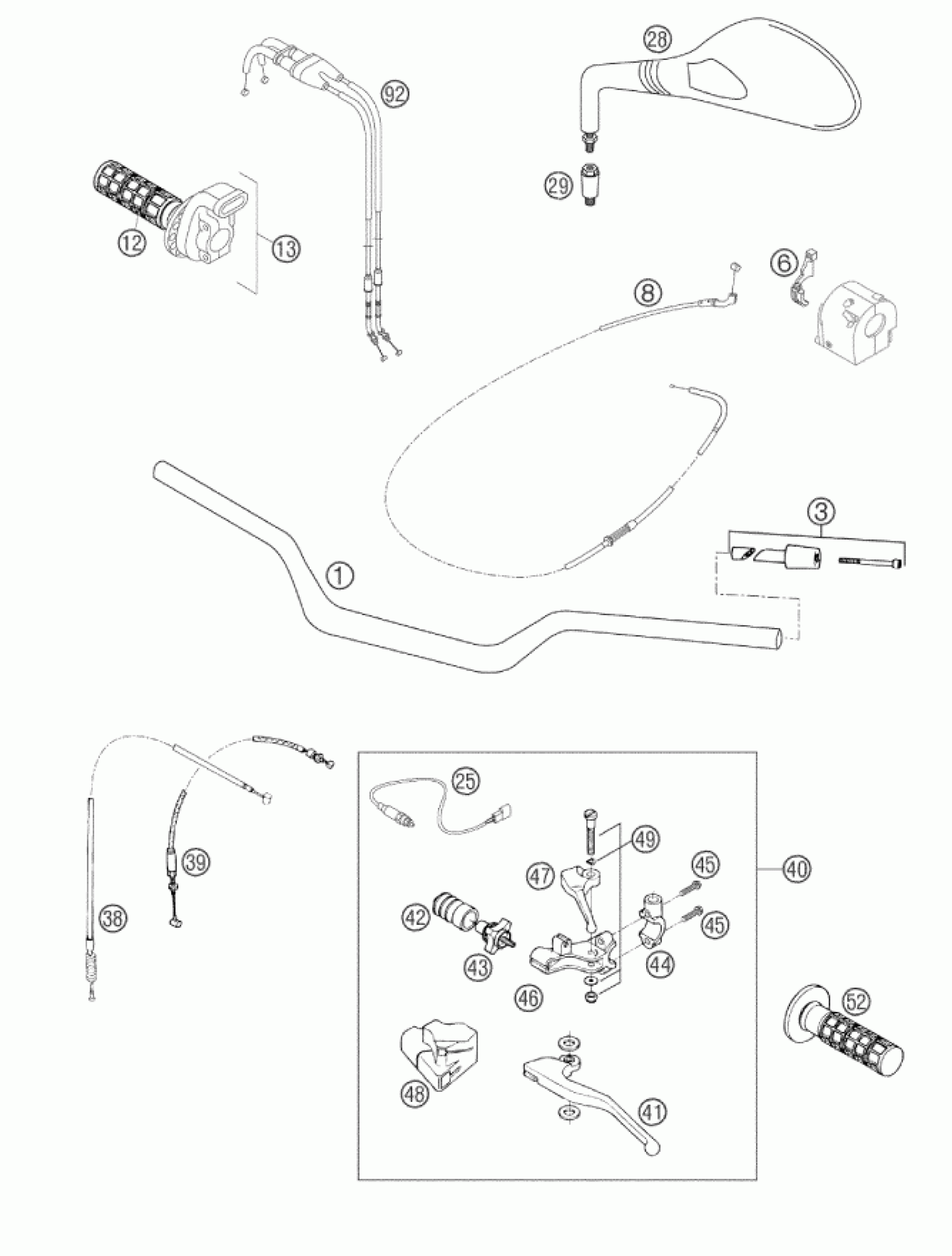

KTM 640 DUKE II ORANGE 2002 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

HANDLEBAR ALU DUKE 2002

58702001000

$184.86

3

VIBRATIONS ABSORBER CPL. '94

58302004044

$36.01

6

CHOKE LEVER LC4 2002

58402050000

$8.01

8

CHOKE CABLE F. MIKUNI LC4 02

58402095100

$27.76

12

TWIST GRIP COVER DOMINO

58302003000

$27.76

13

THROTTLE GRIP CPL. DUKE 2000

58702010000

$58.71

25

CLUTCH SWITCH '96

58411049000

$32.81

28

REAR MIRROR L/S DUKE BLACK '99

58712040000

$36.15

0

REAR MIRROR R/S DUKE BLACK '99

58712041000

$30.74

29

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

38

CLUTCH CABLE 4T L=1115MM '99

58402090000

$42.63

39

DECOMPR. CABLE L=693,5 LC4 '99

58302094200

$32.84

40

* CLUTCH LEVER CPL DUKE'96

58402040000

Unavailable

41

CLUTCH LEVER LOOSE ''30'' BLAC

58302055200

$39.58

42

CLUTCH LEVER BOOT '95

58302126000

$5.23

43

ADJUSTMENT SCREW CPL.M7

58302043000

$22.06

44

CLAMP MIRROW M10x1,25

58302044000

$13.36

45

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

46

JOINT (PIVOT) DOMINO '96

58402041000

$39.45

47

DECOMPRESSION LEVER LOOSE

58302047000

$12.05

48

PLASTIC COVER '

58402048000

Unavailable

49

LEVER SCREW CPL.

58302049000

$7.00

52

FIXED GRIP DOMINO '93

58302052000

$27.76

92

THROTT.CABLE ''OPEN-CLOSE'' 20

58402091600

$94.89
