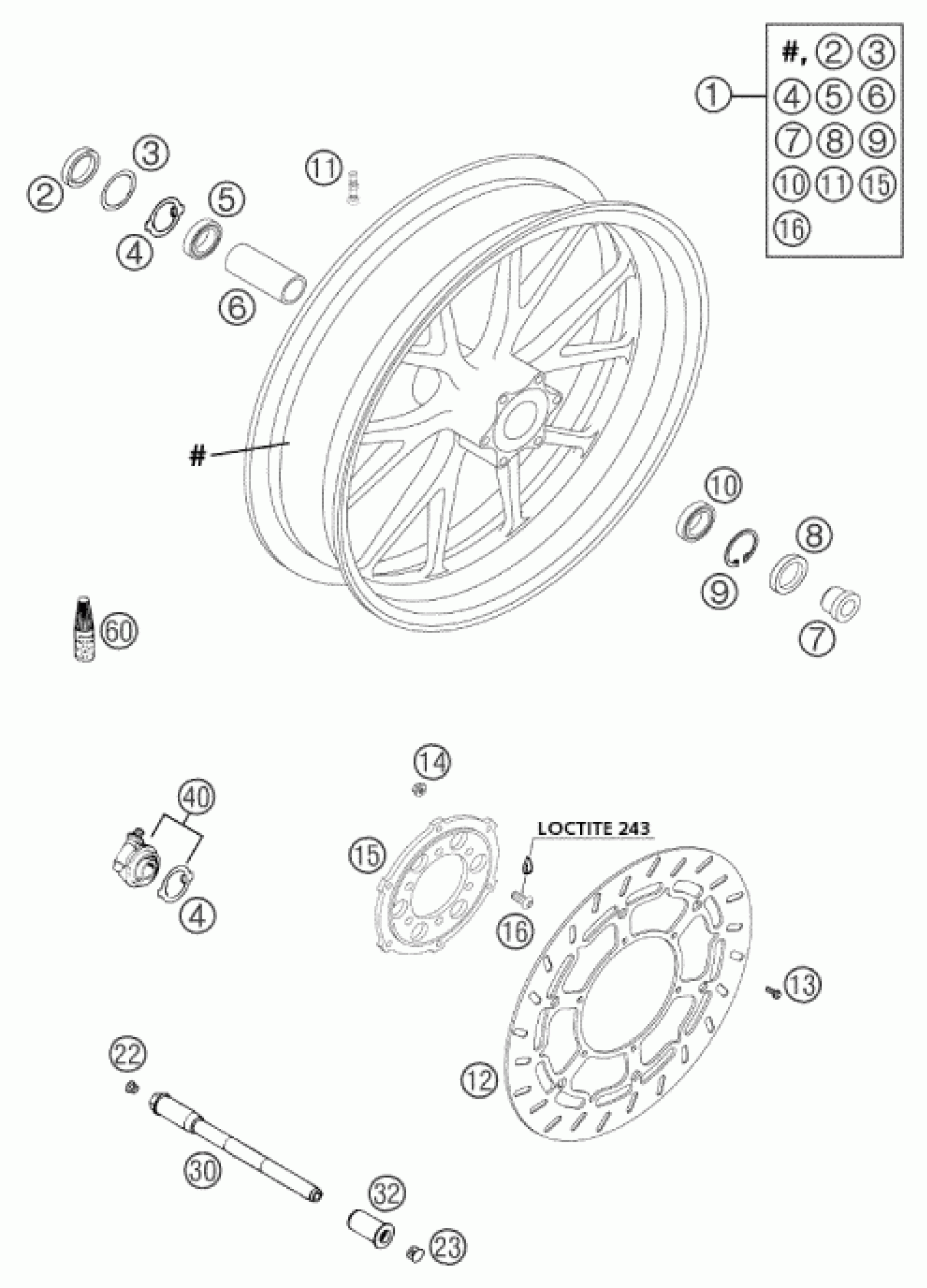

KTM 640 DUKE II ORANGE 2002 FRONT WHEEL Diagram

#

Description

Price

1

FRONT WHEEL CPL.3,5X17''DUKE'

5870906800030

Unavailable

2

SHAFT SEAL RING 40X52X7 B

0760405270

$11.68

3

WASHER 40 X 52 X 0,15 '92

58111054000

$1.57

4

DRIVING DOG F.SPEEDOM.DRIVE'92

58111053100

$6.00

5

GR.BALL BEAR. 6203-2RSHC3HMTF

0625062032

$17.94

6

BEAR.SPACER TUBE 17,5X22X64,5

54609011000

$9.12

7

DISTANCE SLEEVE 17 X 30 X 26,7

58309051000

$11.59

8

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$16.79

9

CIRCLIP DIN0472-35X1,5

0472035150

$2.05

10

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

11

VALVE CPL. BBS DUKE '

58709077044

$8.69

12

BRAKE DISK FRONT D=320MM

58309060000

$298.54

13

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

14

Self locking nut M6 - 10

56509064100

$2.05

15

BRAKE DISC ADAPTER DUKE

58709061000

Unavailable

16

AH OVAL H.SCREW DIN0170-M 8X20

0107080203

$2.05

22

Plug SFL16

50210086000

$3.08

23

PLASTIC CAP 3/8'' 2663

58301098000

$1.49

30

WHEEL SPINDLE M17X250 DUKE'94

58309081000

$60.25

32

AXLE NUT M17 X 1,5 DUKE'94

58309082000

$12.02

40

SPEEDOME.DRIVE 748208(2,66)'94

58311052000

$40.50

60

LOCTITE 243 BLUE 5 ML

6899785

$28.04
