FRONT FORK DISASSEMBLED

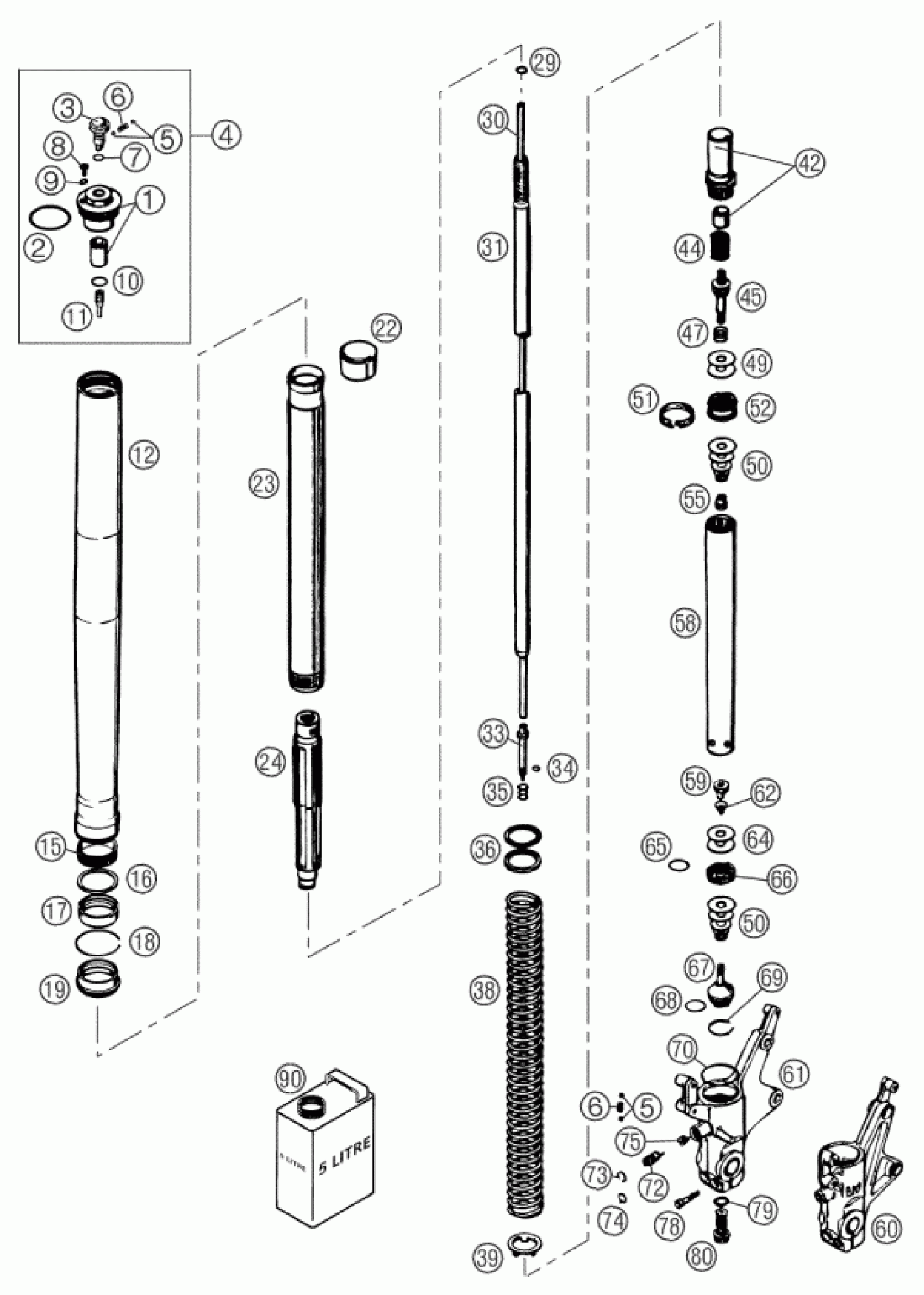

KTM 640 DUKE II ORANGE 2002 FRONT FORK DISASSEMBLED Diagram
#
1
SREW CAP+BUSH M51X1,5
48600020S
Unavailable
2
O-ring 45x2 NBR70 siliconized
46810340
Unavailable
3
Adjuster rebound
48600018
Unavailable
4
SCREW CAP M51X1,5 CPL.
48600020S1
Unavailable
5
Steel ball d3
40540603
Unavailable
6
Spring (1,7) l7,9
48600028
Unavailable
7
O-ring 6x1,5 NBR70
48600044
Unavailable
8
Cross flat head screw M4x6
48600058
Unavailable
9
O-ring 3,7x1,6 NBR70
48600009
Unavailable
10
O-ring 12x1,5 NBR70
48600043
Unavailable
11
Tube tap d4x25
48600019
Unavailable
12
OUT.TUBE BLACK L=577MM D=54/54
43570183
Unavailable
15
DU-BUSH 47 X 43 X 20
43570019
Unavailable
16
Supportwasher 45x52,5x1,5
43570092
Unavailable
17
OIL SEAL RING 43X53,15X9,5
43570140
Unavailable
18
Snap ring SB53x1,5 acc drawing
43570008
Unavailable
19
DUST STRIPPER D=43MM
43570094
Unavailable
22
DU-BUSH 43,8 X 43 X 20
43570020
Unavailable
23
INNER TUBE D=43MM L=550MM
43570064
Unavailable
24
HYDR.STOP L=200MM D=27,5 CPL
43570142S
Unavailable
29
O-ring 6,3x2,4 NBR70
48600175
Unavailable
30
Adjustment tube 6x357
48600131
Unavailable
31
* PISTONROD D=14MM L=391MM M11
48600132
Unavailable
33
* REBOUND NEEDLE
48600150
Unavailable
34
O-ring 3x1,5 NBR70
48600046
Unavailable
35
Spring (7,2) 4-23 needle
48600033
Unavailable
36
Preload bush 26,5x42x1,5
48600053
Unavailable
36
Preload bush 42x26,5x2,5
48600036
Unavailable
36
Preload bush 26,5x42x5
48600037
Unavailable
36
Preload bush 26,5x42x10
48600038
Unavailable
38
SPRING 7,0 N/MM SET D=4,9MM
95010018S
Unavailable
39
Spring retainer 33,5x38,2x3
43570131
Unavailable
42
SCREW SLEEVE M29,3X1+BUSH
43570132S
Unavailable
44
REBOUND SPRING D=14,6MM L=22MM
48600015
Unavailable
45
TAB REBOUND
48600151
Unavailable
47
Spring (11,7) 1,5-8 valve
35480377
Unavailable
49
CHECK VALVE 8X24X0,1
48600062
Unavailable
49
Shim 6x8x0,2
40541392
Unavailable
50
Shim 6x12x0,10
40540400
Unavailable
50
Shim 6x14x0,10
40540401
Unavailable
50
Shim 6x16x0,10
40540402
Unavailable
50
Shim 6x18x0,10
40540403
Unavailable
50
Shim 6x11x0,20
40541402
Unavailable
50
SHIM 6X12X0,15
40540404
Unavailable
50
SHIM 6X14X0,15
40540405
Unavailable
50
SHIM 6X16X0,15
40540406
Unavailable
50
SHIM 6X18X0,15
40540407
Unavailable
50
Shim 6x16x0,20
40540410
Unavailable
50
Shim 6x18x0,20
40540411
Unavailable
50
SHIM 6X16X0,25
40540414
Unavailable
50
Shim 6x10x0,30
40540447
Unavailable
50
Shim 6X11X0,10
40541383
Unavailable
50
Shim 6x11x0,30
40541391
Unavailable
50
SHIM 6X11X0,15
40541406
Unavailable
50
SHIM 6X11X0,25
40541417
Unavailable
50
SHIM 6X18X0,25
40540415
Unavailable
50
Shim 6x24x0,10
48600063
Unavailable
50
Shim 6x22x0,10
48600064
Unavailable
50
Shim 6x20x0,10
48600065
Unavailable
50
SHIM 6X24X0,1
48600066
Unavailable
50
SHIM 6X22X0,1
48600067
Unavailable
50
Shim 6x24x0,10 delta
48600116
Unavailable
51
Pistonring 26x28x5
48600060
Unavailable
52
Piston 6,05x27,65x12 rebound
48600042
Unavailable
55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
Unavailable
58
TUBE 29,3X1X405 D=28MM
48600133
Unavailable
59
CHECK VALVE NUT M6X0,5
40541241
Unavailable
60
AXLE CLAMP L/S BLACK DUKE 2002
43570196
Unavailable
61
AXLE CLAMP R/S BLACK DUKE 2002
43570197
Unavailable
62
Spring (8,5) l6,5 valve
40541278
Unavailable
64
Shim 8x24x0,40
48600061
Unavailable
65
O-ring 21x2 NBR70
46811499
Unavailable
66
Piston 6x27,8x9 compression
48600047
Unavailable
67
TAP COMPRESSION 2002
48600177
Unavailable
68
O-RING NBR 15X1,5
43570180
Unavailable
69
SPRING RING 29,8X1,6
43570175
Unavailable
70
O-ring 41x2 NBR70 siliconized
43570023
Unavailable
72
Adjustment screw slot compress
48600034
Unavailable
73
Round-wire snap ring 12x1 DIN7
48600051
Unavailable
74
O-ring 8x2 NBR70
48600049
Unavailable
75
NEEDLE COMPRESSION M10X1
48600153
Unavailable
78
ALLEN SCREW M 8X30
40540215
Unavailable
79
Copperwasher 12x16x1,5
46810146
Unavailable
80
HH collar screw M12x1x23
48600176
Unavailable
90
FORKOIL SAE 5 5L.
40540882S1
Unavailable
