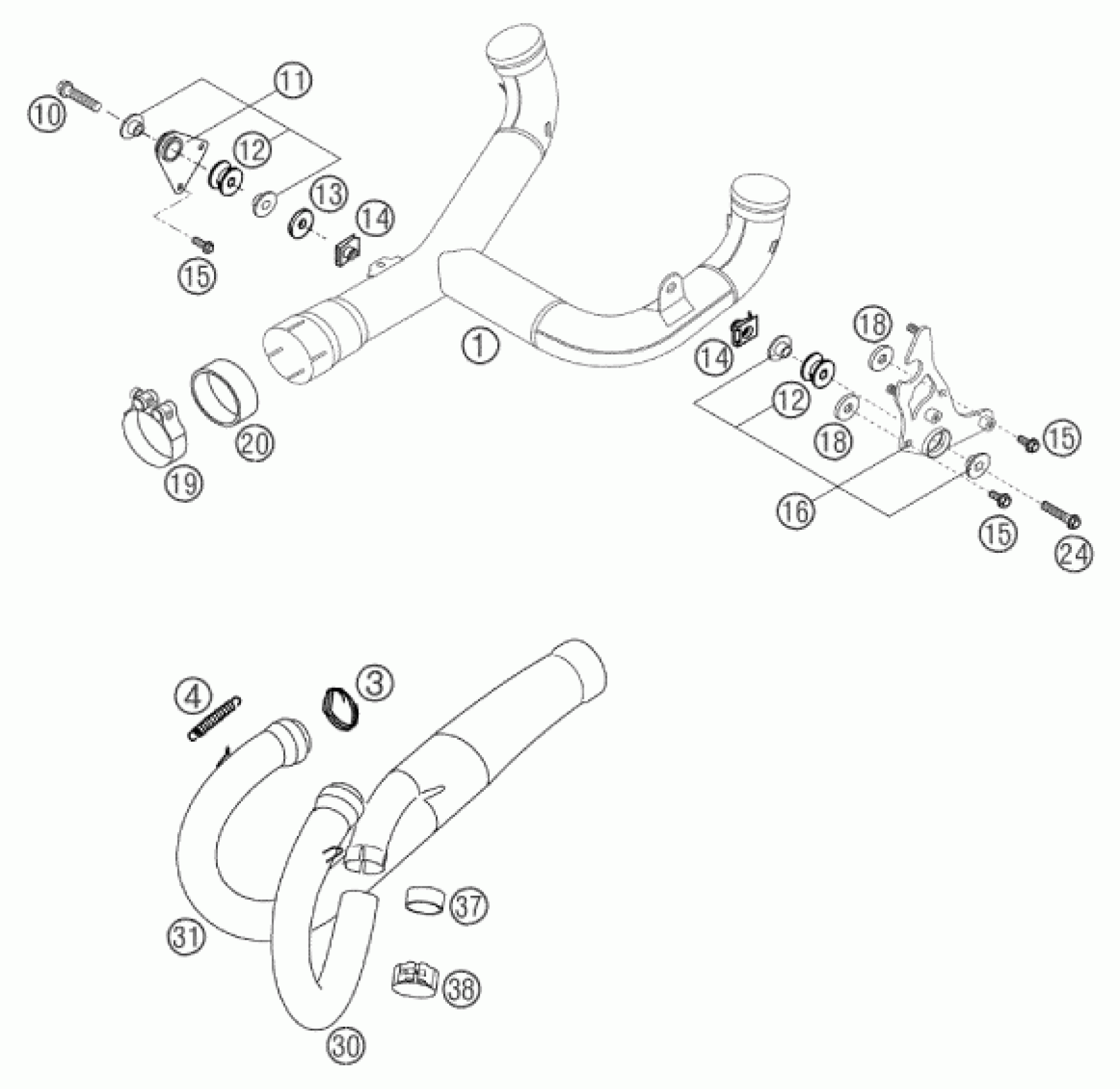

KTM 640 DUKE II ORANGE 2002 EXHAUST SYSTEM Diagram

#

Description

Price

1

DISTRIBUTOR TUBE SILEN.DUKE'

58705060000

Unavailable

3

CERAMIC LINE 1 METER

58305053001

$6.72

4

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

10

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

11

BRACKET CPL. R/S BLACK '99

58705056044

Unavailable

12

damp. component silicone grey

54305068100

$8.31

13

INSOLATE WASHER 8,5X28X3

51005067000

$2.05

14

RANGE CHANGE METAL NUT M8

54603048000

$4.11

15

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

16

BRACKET CPL. L/S BLACK '99

58705055044

$45.09

18

STEEL WASHER 6,4X17X3

50232050001

$5.23

19

PRE SILENCER CLAMP D=53MM '99

58705058000

$26.34

20

Graphite ring 45X50X25

58405005001

$16.92

24

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

30

EXHAUST PIPE L/S ''KTM584'' 20

58405007300

$65.40

31

EXHAUST PIPE R/S CPL.DUKE 2002

58705008100

Unavailable

37

GRAPHIT RING 32X37X20

58405005000

$16.92

38

PRE SILENCER CLAMP D=40MM 2002

58705058100

$25.39
