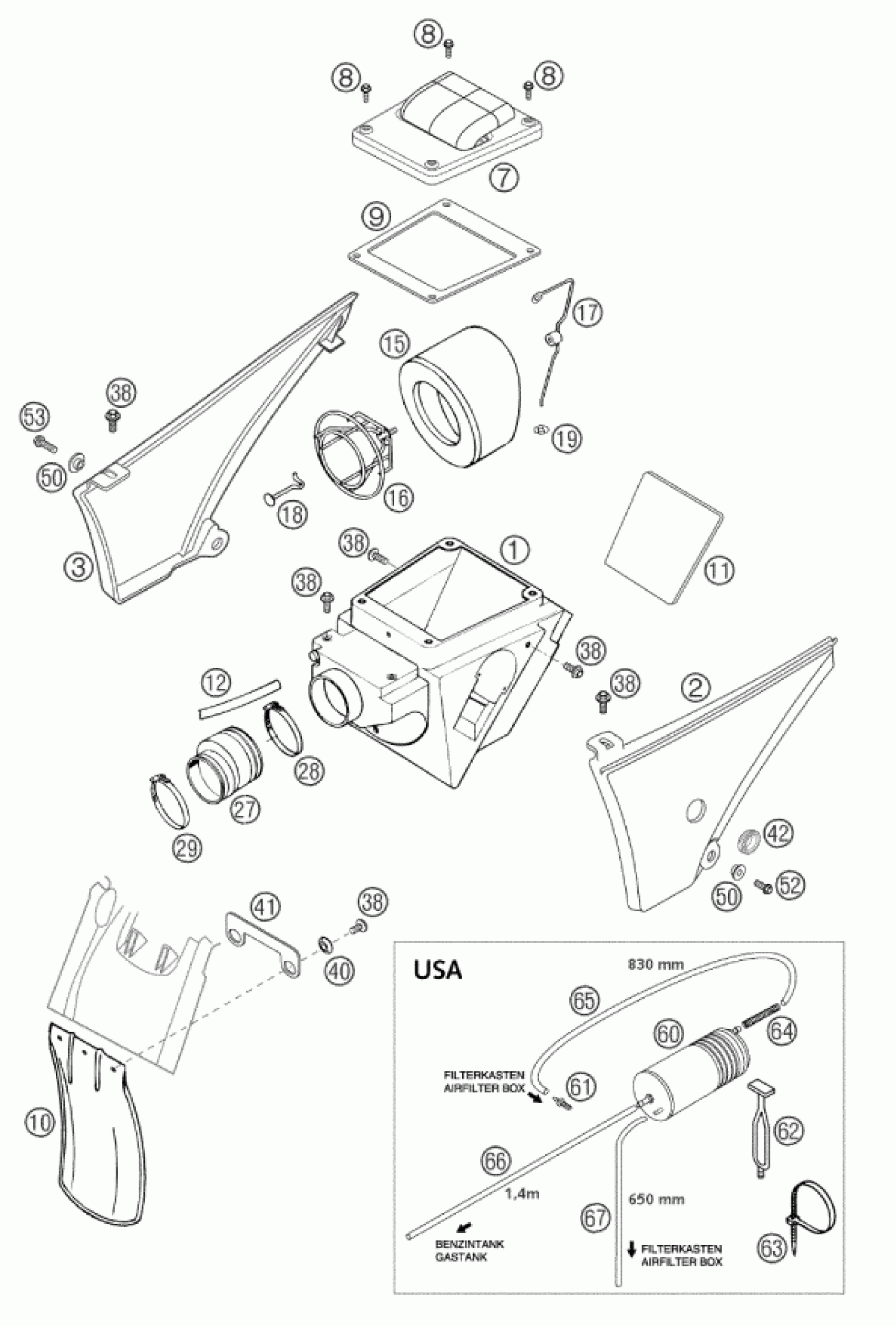

KTM 640 DUKE II ORANGE 2002 AIR FILTER Diagram

#

Description

Price

1

FILTER BOX CPL.DUKE '99

58706001000

$80.14

2

FILTER BOX L/S DUKE '99

58706003000

$23.89

3

FILTER BOX COVER R/S LC4'98

58406004000

$20.07

7

FILTER BOX COVER CPL. DUKE '99

58706002044

$24.23

8

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

9

GASKET FILTER BOX COVER '99

58706090000

$6.05

10

SPLASH PROTECT.FOR FILTER BOX

54606010000

$18.25

11

DAMPING PLATE REAR BASE

58708019050

Unavailable

12

HOSE 10X14 PER METER

57005020001

Unavailable

15

AIRFILTER

56506015100

$28.13

16

FILTER CARRIER '97

58306016100

$28.25

17

HOLDING HANGER FILTER DUKE '99

58706017000

$16.51

18

HOOK FOR FILTER BRACKET

58306017050

$11.28

19

CLAMPING DISK KS4

54606019004

$2.05

27

AIR FILTER BOOT 400/640 LC4'97

58406026000

$17.94

28

HOSE CLAMP 60-80MM

55006028000

$4.11

29

HOSE CLAMP 50-70MM

51006027000

$6.07

38

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

40

BUCKET

72210079000

$3.00

41

BRACKET REAR BASE DUKE '

58706010050

$5.21

42

RUBBER SLEEVE F.SEAT LOCK '99

58707050050

$3.08

50

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

52

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

53

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

60

EVAP.CANISTER FILTER TYPE AK47

58715001000

$80.96

61

HOSE CONNECTION FOR OILTANK

52338061050

$22.13

62

RUBBER FOR SIDE STAND '98

50303025000

$5.10

63

Cable tie 200/4.6mm black

44011076200

Unavailable

64

PRESSURE SPRING 0,9MM

58036006100

$1.49

65

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

66

PVC-HOSE 6X9 MM PER METER

31007107001

$6.72

67

PVC-HOSE 5 X 8 MM

31007007001

Unavailable
