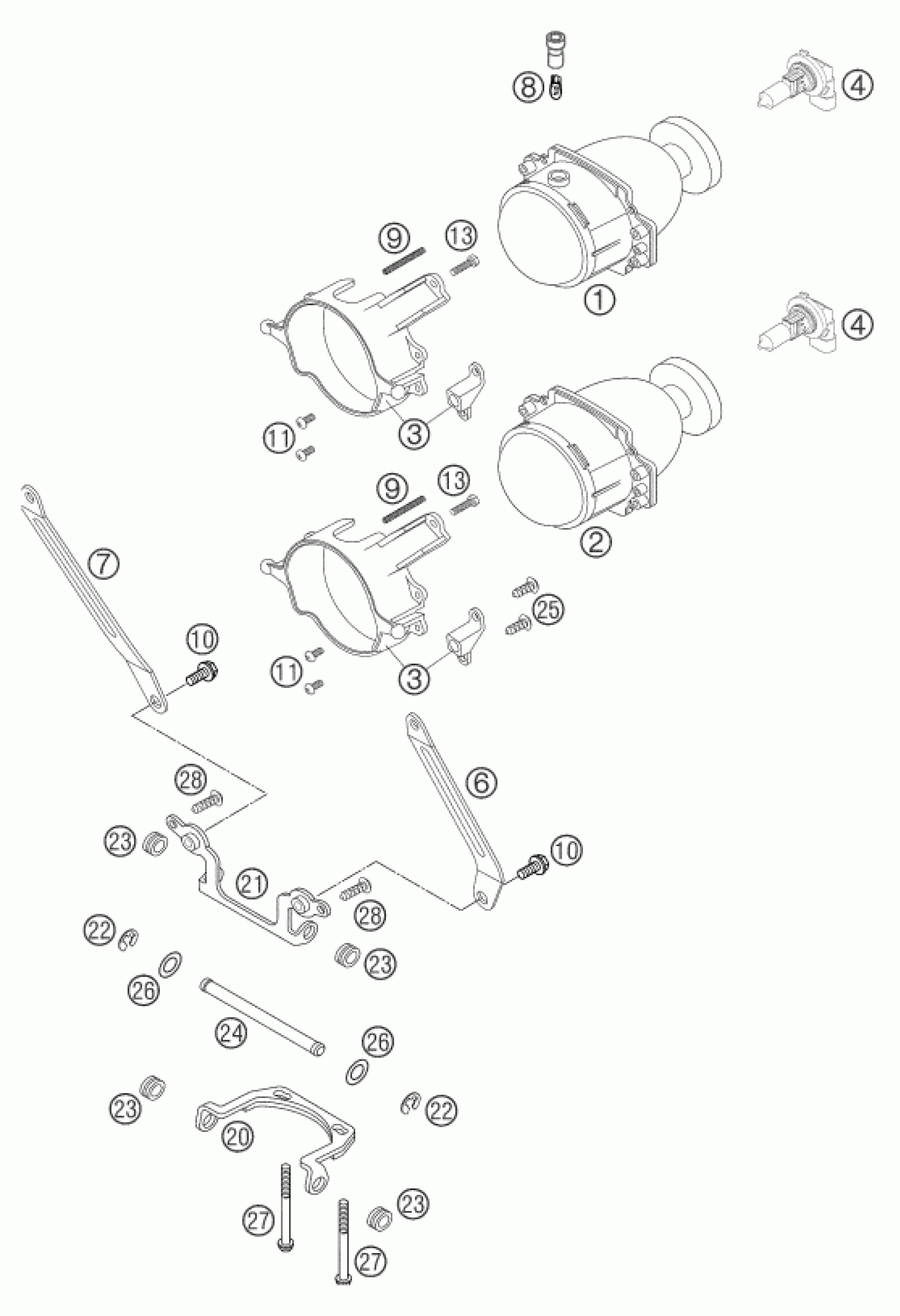

KTM 640 DUKE II LIMITED ED 2006 LIGHTING SYSTEM Diagram

HEADLIGHT HIGHBEAM CEV 603 '99

58714002000

Unavailable

HEADLIGHT LOWBEAM CEV 601 '99

58714001050

Unavailable

HEADLIGHT SUPPORT DUKE '99

58714010000

$27.90

BULB HB3 12V 60W '99

58714003000

$31.53

BRACE PLATE FOR MASK L/S

58708001080

$15.11

BRACE PLATE FOR MASK R/S

58708101080

$15.97

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

SPRING F. HEAD LIGHT ADJ. '99

58714010050

$3.48

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

OVAL HEAD SCREW C15 GEH. PH2

58714001011

Unavailable

SCREW FOR PLASTIC D=5X35

58714001010

$1.73

HINGE JOINT BOTTOM 99

58708002000

$22.09

BRACKET F. JOINT MASK

58708001060

$19.26

retaining washer DIN 6799 - 6

0799060003

$1.49

rubber grommet D=8mm open

31008060000

$2.05

JOINT AXLE F.MASK DUKE '99

58708001070

Unavailable

SCREW FOR PLASTIC 50X12

0016050121

$2.05

washer DIN 125 A -8.4

0125080003

$1.49

HH COLLAR SCREW M 6X60 WS=8

0015060603

$3.08

SCREW FOR PLASTIC D=5X18

0081500181

$2.05
