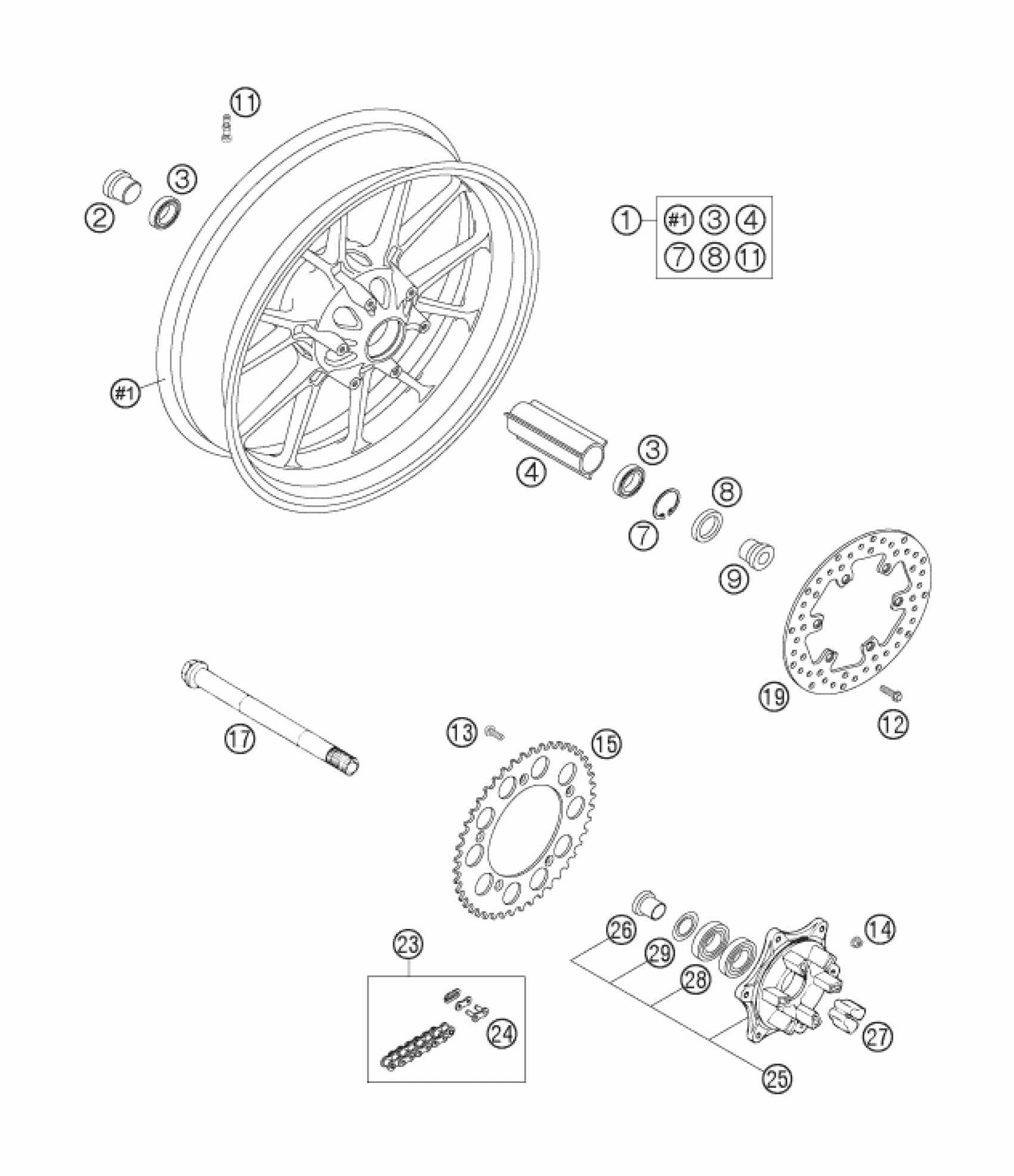

KTM 640 DUKE II LIMITED ED 2006 REAR WHEEL Diagram

#

Description

Price

24

MASTER LINK FOR 50310800118

50310866000

Unavailable

3

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

4

BEAR. SPACER TUBE REAR DUKE 03

58710011000

Unavailable

7

CIRCLIP DIN0472-52X2

0472052200

Unavailable

8

SHAFT SEAL RING 32X52X7 B

0760325272

Unavailable

9

BUSHING FOR R.W. HUB L/S 03

58710016000

Unavailable

11

VALVE CPL. BREMBO DUKE 2003

58709076000

Unavailable

12

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

13

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

15

REAR SPROCKET 38-T

58310051038

Unavailable

15

REAR SPROCKET 40-T

58310151040

Unavailable

15

REAR SPROCKET 42-T

58310051042

Unavailable

15

REAR SPROCKET 45-T

58310151045

Unavailable

17

WHEEL SPINDLE REAR L=232MM '94

58310085000

Unavailable

19

BRAKE DISC REAR D=220MM 03

58710060000

Unavailable

23

CHAIN Z-RING 5/8X1/4''

50310800118

Unavailable

24

CONNECTING LINK F. 50310800118

50310366000

Unavailable

25

SPROCKET SUPPORT CPL. 06

58310050344

Unavailable

26

BUSH. F.SPROCKETSUPPORT 06

58310417200

Unavailable

27

Rubber damping block 91

54610459000

Unavailable

28

Grooved ball bear.6005 DDU2CG2

0625060058

Unavailable

29

SEAL WASHER 6005AV 06

58310018000

Unavailable

14

Self locking nut M8 10.9

54310086200

Unavailable

1

REAR WHEEL CPL. 4,5X17'' DUKE0

5871006820054

Unavailable

2

SPACER BUSH. F. REAR WHEEL 06

58710017100

Unavailable
