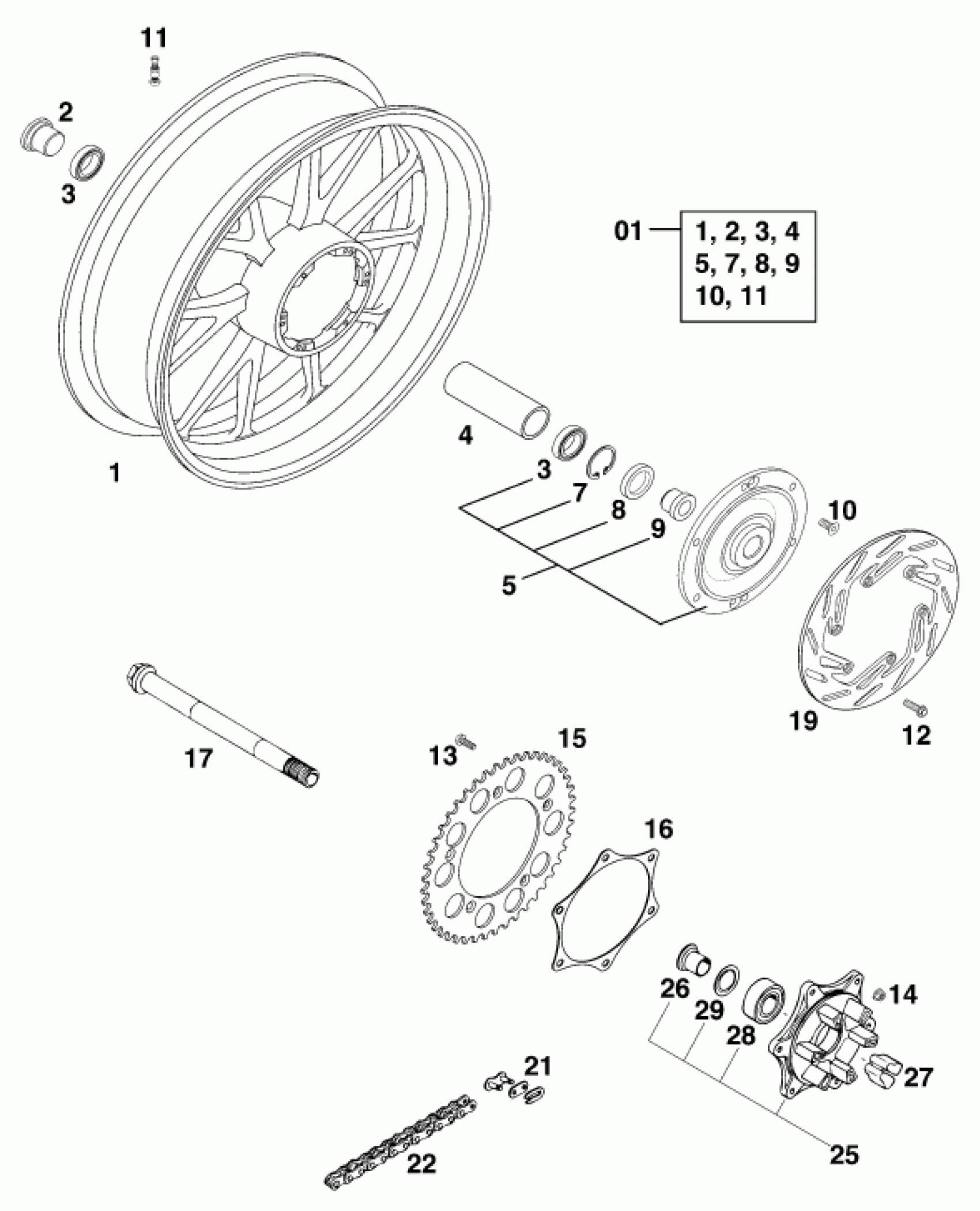

KTM 640 DUKE II LIME 2000 REAR WHEEL Diagram

#

Description

Price

0

REAR WHEEL CPL.4,25X17''DUKE'

5871006800030

Unavailable

1

REAR WHEEL CMPL.4,25X17''DUKE'

58710068000

$460.19

2

BUSHING FOR REAR DAMPED HUB

54610416300

$20.09

3

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

4

BEARING SPACER TUBE L=98,3MM

54610411100

Unavailable

5

BRAKEDISC ADAPTER REAR DUKE'99

58710061000

Unavailable

7

CIRCLIP DIN0472-52X2

0472052200

$3.08

8

SHAFT SEAL RING 32X52X7 B

0760325272

$16.54

9

BUSHING FOR HUB

54610016000

$32.90

10

FLAT HEAD SCREW DIN7991-M 6X12

0991060126

$2.05

11

VALVE CPL. BBS DUKE '

58709077044

$8.69

12

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

13

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

14

Self locking nut M8 10.9

54310086200

$3.08

15

REAR SPROCKET 38-T

58310051038

$64.97

15

REAR SPROCKET 42-T

58310051042

Unavailable

15

REAR SPROCKET 40-T

58310151040

Unavailable

15

REAR SPROCKET 45-T

58310151045

Unavailable

16

SPROCKET ADAPTER 1,5MM NIRO

58710049000

$25.70

17

WHEEL SPINDLE REAR L=232MM '94

58310085000

$38.91

19

REAR BRAKE DISK 220MM COUNTERS

58010060600

$183.53

21

MASTER LINK 5/8X1/4'' X-RING

50010066100

$13.27

22

50010065100

Unavailable

22

X-R.CHAIN 5/8X1/4''/M W.LINK

50010065101

Unavailable

25

SPROCKET SUPPORT CPL.

58310050044

Unavailable

26

BUSH. F.SPROCKETSUPPORT L=25MM

54610417300

$17.38

27

Rubber damping block 91

54610459000

$8.03

28

GR. BALL BEARING 3205B-2RSRTNG

0625032057

$74.67

29

SEAL WASHER 3205 AV

54610018000

$9.34
