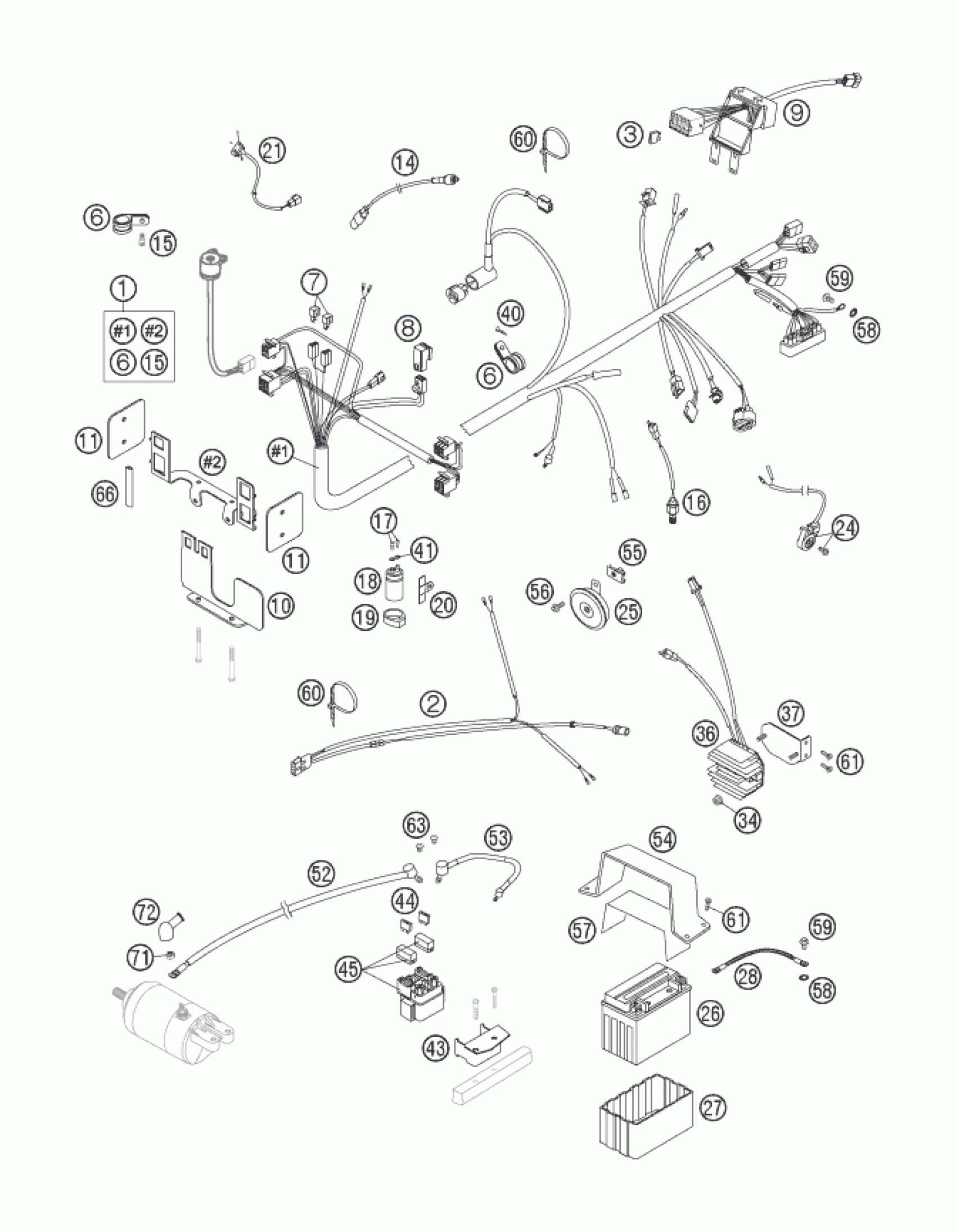

KTM 640 DUKE II BLACK 2005 WIRING HARNESS Diagram

#

Description

Price

34

Self locking nut M6 - 10

56509064100

$2.05

36

VOLT.REGULATOR-RECTIFIER 12V

58411034100

$214.48

37

BATTERY BRACKET REGULATOR '99

58711055000

$17.11

40

SHEET MET.SCR.DIN7981- 4,8X13

0981480133

Unavailable

41

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

$1.49

43

BRACKET FOR STARTER RELAY '99

58711058050

Unavailable

44

Plug-in fuse, big 20A

58011109120

$1.49

45

Starter reley 12V 99

58211058000

$72.64

52

STARTERCABLE 700 MM '97

58411059100

$23.65

53

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

54

BRACKET FOR BATTERY DUKE 03

58711054100

Unavailable

55

clip nut M6

54603048100

$4.11

56

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

57

METAMOLL FOR BATTERY BRACKET

58711054050

$2.05

58

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

59

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

60

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

60

Cable tie 200/4.6mm black

44011076200

Unavailable

60

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

61

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

63

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

66

EDGE PROTECTOR PER METER

58312085100

Unavailable

71

Self lock. nut DIN985-M6-A2

0985060003

$2.05

72

PROTECTION CAP F. STARTER ENG.

58440099000

$5.23

1

MAIN WIRING HARNESS DUKE 03

58711075100

Unavailable

2

WIRING HARNESS REAR 03

58711076200

Unavailable

3

Plug-in fuse, big 10A

58011109110

$2.05

6

CLAMP RSGU 15/12

49007439000

$5.23

7

DIODE S3H-15 97

58411096100

$9.81

8

STARTER RELAY '96

58411057000

$22.82

9

FUSE BOX 03

58711087000

Unavailable

10

SCREEN F. BRACKET DUKE '99

58711083050

Unavailable

11

COVER F. BRACKET '99

58711083020

$13.02

14

CLUTCH SWITCH 03

58411049100

$54.32

15

AH SCREW DIN0912-M 5X12

0912050123

$2.05

16

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

17

SHCS DIN 912 M5x8

0912050083

$1.49

21

BRAKE LIGHT SWITCH FRONT SM 03

58411050000

$40.66

24

SIDE STAND SWITCH CPL. '97

58411045000

$97.89

25

DC HORN L.E.B. 03

50311060100

$32.44

26

BATTERY 12V 8,6AH 03

58411053100

$309.38

27

BATTERY COVER 96

58411053050

$22.65

28

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

19

CAPACITOR BRACKET

54511048000

$4.33

20

BRACKET FOR CAPACITOR

54611448000

Unavailable

18

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59
