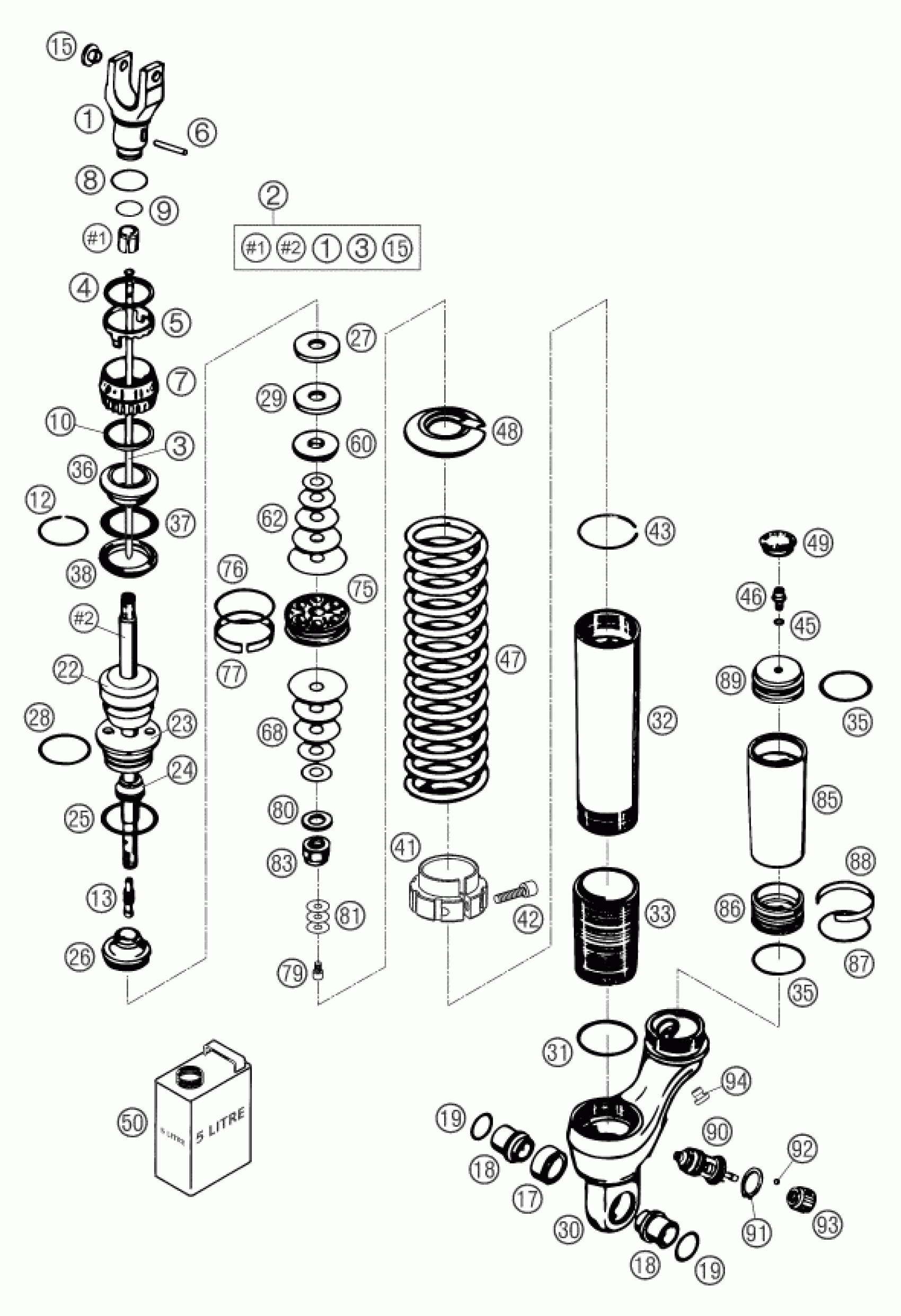

KTM 640 DUKE II BLACK 2005 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description

Price

7

ADJ. KNOB D=41

46811262

Unavailable

8

O-RING NBR 32X1,5

46811500

Unavailable

9

O-ring 21x2 NBR70

46811499

$1.49

10

Shaft seal 29x35x3

46811221

Unavailable

12

CIRCLIP 22X1,2

46811268

Unavailable

13

NEEDLE SEAT 5X17,25

46811259

Unavailable

1

SHOCK ABS. BOTTOM-FORK L75B

46811558

Unavailable

2

PISTON ROD CPL. D=14 BA M14X1

46811583S

Unavailable

3

NEEDLE CPL. D=14 BA, L=154

46811405S

Unavailable

4

O-RING 36X0,5

46811222

Unavailable

5

WASHER

46811263

Unavailable

6

PIN 4X35

46811261

Unavailable

15

Bush M10x12/15/13x9,5

46811205

$6.72

17

Ball joint bearing 15x25x13

46811027

Unavailable

18

Bearing bush 10x15,05/22/19x24

46811078

Unavailable

19

SEAL KGW

46811050

$8.13

22

BUMP RUBBER WP55 WHITE L=20

46810171

Unavailable

23

SCREW CAP M47,4, H=22,5

46811045

Unavailable

24

DUST SEAL 1424

46811044

Unavailable

25

O-ring 35x5 NBR70

46810325

Unavailable

26

ADAPTER CPL. D=46, H=23 BA

46811540S1

Unavailable

27

SPACER 14X35X5

46811004

Unavailable

28

O-ring 40x2 NBR70 black

46811042

$2.05

29

Bush 14x35x10

46811005

Unavailable

30

SHOCK ABSORB. TOP H-35/79 84

46811481

Unavailable

31

O-ring 48x2 NBR70 siliconized

46810016

$1.49

32

TUBE L=205

46810426

Unavailable

33

THREADED BUSH L=60 BLACK

46810346

Unavailable

35

O-ring 45x2 NBR70 siliconized

46810340

$1.49

36

BUSHING RING D=55X19

46811561

Unavailable

37

O-RING NBR 32X8

46811512

Unavailable

38

SUPPORT RING D=55X7,5

46811511

Unavailable

41

COUNTER NUT

46811586

Unavailable

42

AH SCREW DIN0912-M 6X25

0912060253

$2.54

43

Round-wire snap ring 49x1,5

46810010

$3.08

45

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

46

HS lock screw M5x6

36120151

$1.86

47

SPRING WP 80-260

91010154

Unavailable

48

SPRING RETAINER D=58,H=13,L=15

46810063

Unavailable

49

Rubber cap do not open 22x5,5

46811208

$3.08

50

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

Unavailable

60

REBOUND BUSH PLANE H=6,5

46811216

Unavailable

62

SHIM 12X18X0,15

46810611

$2.05

62

SHIM 12X24X0,30

46810508

$2.05

62

SHIM 12X26X0,25

46810500

$2.05

62

SHIM 12X28X0,25

46810501

$2.05

62

SHIM 12X30X0,20

46810493

$2.05

62

SHIM 12X32X0,20

46810494

$2.05

62

SHIM 12X34X0,20

46810495

$2.05

62

SHIM 12X36X0,25

46810505

$2.05

62

SHIM 12X38X0,20

46810497

$2.05

62

SHIM 12X40X0,20

46810498

$2.05

68

SHIM 12X24X0,30

46810508

$2.05

68

SHIM 12X26X0,25

46810500

$2.05

68

SHIM 12X28X0,25

46810501

$2.05

68

SHIM 12X30X0,25

46810502

$2.05

68

SHIM 12X32X0,20

46810494

$2.05

68

SHIM 12X24X0,10

46810608

$2.05

68

SHIM 12X30X0,15

46810520

$2.05

68

SHIM 12X32X0,15

46810521

$2.05

75

PISTON 6+6XD=7 BA

46811218

Unavailable

76

O-ring 37x,82x1,78 Viton70 gre

46810035

$2.05

77

Piston ring 43,95x45,95x8

46811206

$17.76

79

BLEED SCREW M6X0,5

46180055

Unavailable

80

Washer 12x24x2,5

46811258

$24.77

81

Shim 6x18x0,10

40540403

$2.05

81

SHIM 6X18X0,15

40540407

$2.05

81

Shim 6x9,5x0,30

40540450

$2.05

83

Piston rod nut M12x1

46180060

Unavailable

85

RESERVOIR SCREW L=123 GREY

46811453

Unavailable

86

SEPARATION PISTON D=46

46810322

Unavailable

87

O-ring 35x5 Viton70

46811043

Unavailable

88

Pistonring 42,5x45,5x3,9

46810324

Unavailable

89

RESERVOIR CAP D=46

46811209

Unavailable

90

CC-COMPRE.DAMPING CONTROL CPL.

46811331S

Unavailable

91

LOCK WASHER JV24

46810334

Unavailable

92

Steel ball 4.75mm

46810333

Unavailable

93

ADJUSTING KNOB CC-MECH. CPL.

46811272S

Unavailable

94

HS cylinder-head screw R1/8 l8

50180095

$2.42
