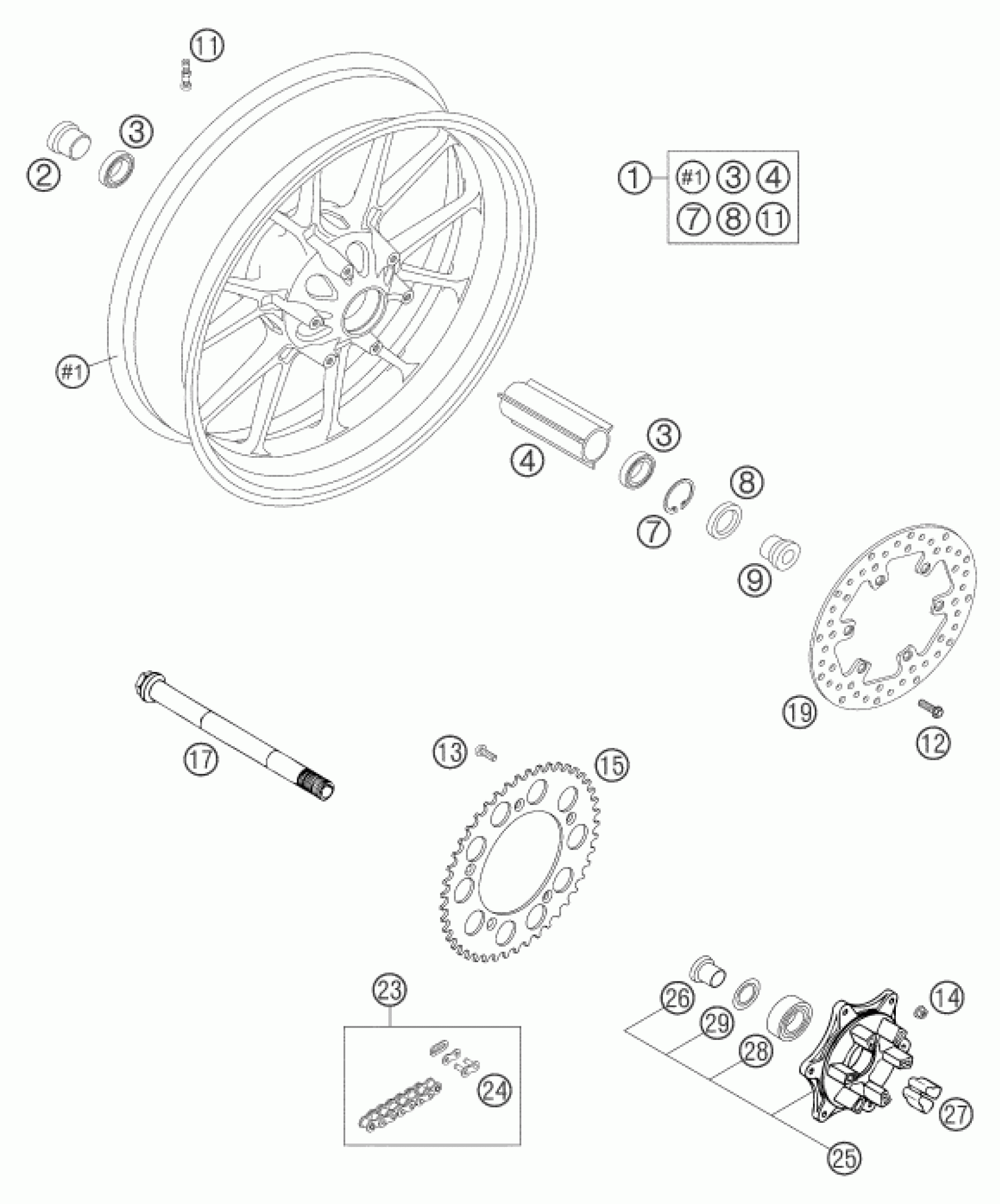

KTM 640 DUKE II BLACK 2005 REAR WHEEL Diagram

#

Description

Price

1

REAR WHEEL CPL. DUKE 03

5871006820030

$528.95

2

BUSHING FOR R.W. HUB R/S 03

58710017000

Unavailable

3

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

4

BEAR. SPACER TUBE REAR DUKE 03

58710011000

Unavailable

7

CIRCLIP DIN0472-52X2

0472052200

$3.08

8

SHAFT SEAL RING 32X52X7 B

0760325272

$16.54

9

BUSHING FOR R.W. HUB L/S 03

58710016000

Unavailable

11

VALVE CPL. BREMBO DUKE 2003

58709076000

$8.69

12

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

13

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

14

Self locking nut M8 10.9

54310086200

$3.08

15

REAR SPROCKET 38-T

58310051038

Unavailable

15

REAR SPROCKET 40-T

58310151040

Unavailable

15

REAR SPROCKET 42-T

58310051042

Unavailable

15

REAR SPROCKET 45-T

58310151045

Unavailable

17

WHEEL SPINDLE REAR L=232MM '94

58310085000

$38.91

19

BRAKE DISC REAR D=220MM 03

58710060000

$98.69

23

CHAIN Z-RING 5/8X1/4''

50310800118

Unavailable

24

CONNECTING LINK F. 50310800118

50310366000

$9.34

25

SPROCKET SUPPORT CPL. 03

58310050144

$129.85

26

BUSH. F.SPROCKETSUPPORT L=25MM

54610417300

$17.38

27

Rubber damping block 91

54610459000

$8.03

28

GR. BALL BEARING 3205B-2RSRTNG

0625032057

$74.67

29

SEAL WASHER 3205 AV

54610018000

$9.34
