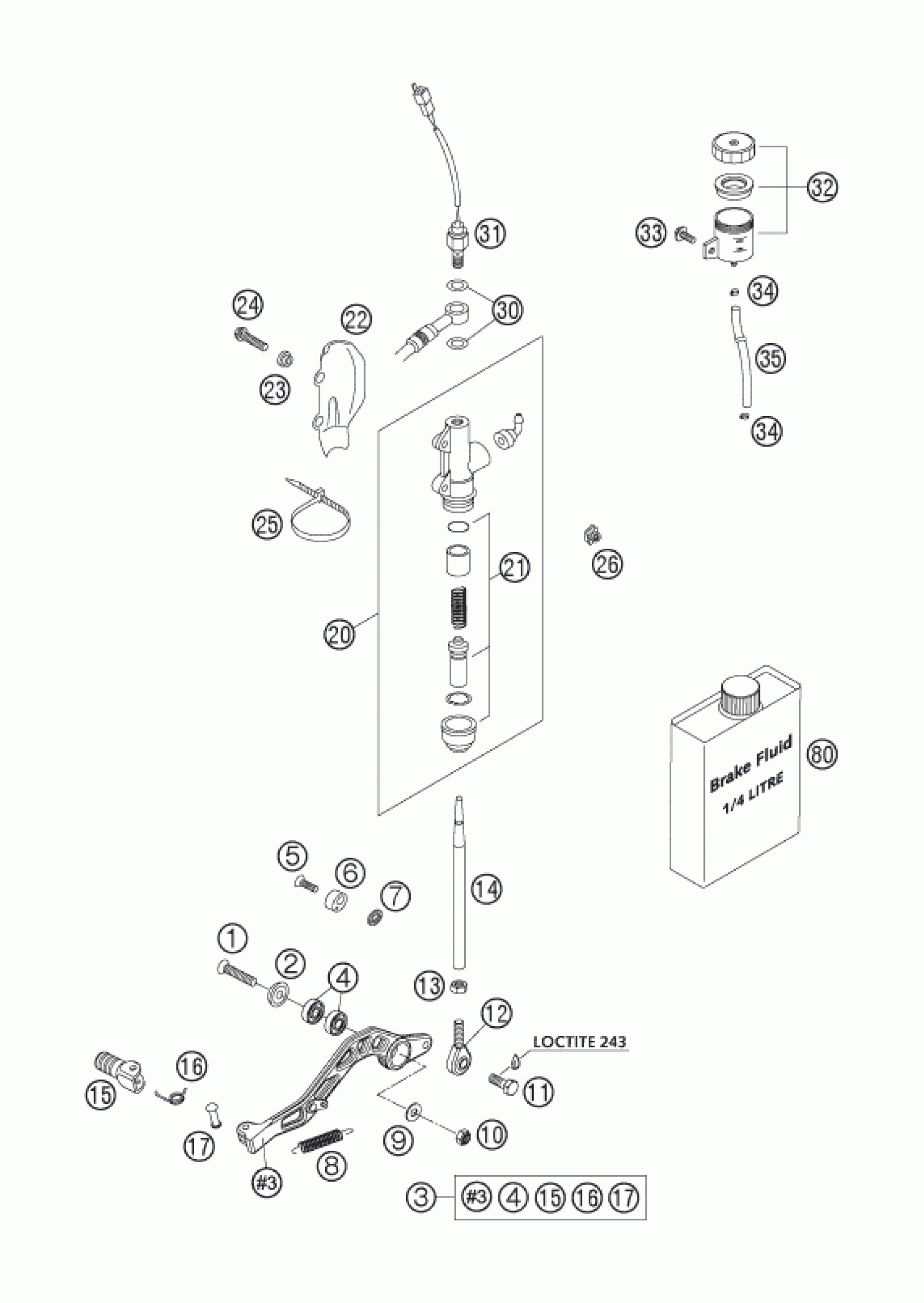

KTM 640 DUKE II BLACK 2005 REAR BRAKE CONTROL Diagram

#

Description

Price

1

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

Unavailable

2

SPECIAL WASHER ALU 8 X 24 MM

58303061000

$5.23

3

FOOT BRAKE LEV. FOLDING CPL.04

58403070244

Unavailable

4

Grooved ball bearing 608 2RS C

0625006087

$21.40

5

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

6

BRAKE LEVER STOP LC4 03

58413048000

$5.79

7

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.69

8

RETURN SPRING

13003062000

$5.79

9

washer DIN 125 A -8.4

0125080003

$1.69

10

SELF LOCKING NUT DIN0985-M 8

0985080003

$2.54

11

HH SCREW DIN0933-M 8X22 8.8

0933080223

Unavailable

12

HEIM JOINT M8 W=12MM '93

58303062000

Unavailable

13

Hexagon nut DIN934 M8

0934080003

$2.54

14

PUSH ROD ALU L=178MM '93

58303068100

Unavailable

15

STEP PLATE FOR SHIFT LEVER 250

54634131000

$31.59

20

MAIN BRAKE CYLINDER '89

54513101044

Unavailable

21

REPAIR KIT PISTON 13MM

54513150000

$46.46

22

BRAKE CYL. PROTECTOR ''BREMBO'

54513038000

$7.00

16

SHIFTING LEVER SPRING 250

54634032100

$3.39

17

BOLT 6X25 FOR SHIFT LEVER

54634031050

$7.85

23

COLLAR BUSHING

50213161000

$3.39

24

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

25

Cable tie 200/4.6mm black

44011076200

$1.69

26

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

30

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.54

31

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

32

BRAKE FLUID RESERVOIR '89

54513030044

$20.56

33

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

34

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.39

35

HOSE FOR RESERVOIR 6X1,5

58007016101

Unavailable

80

BRAKE FLUID DOT 4.0

306054

Unavailable
