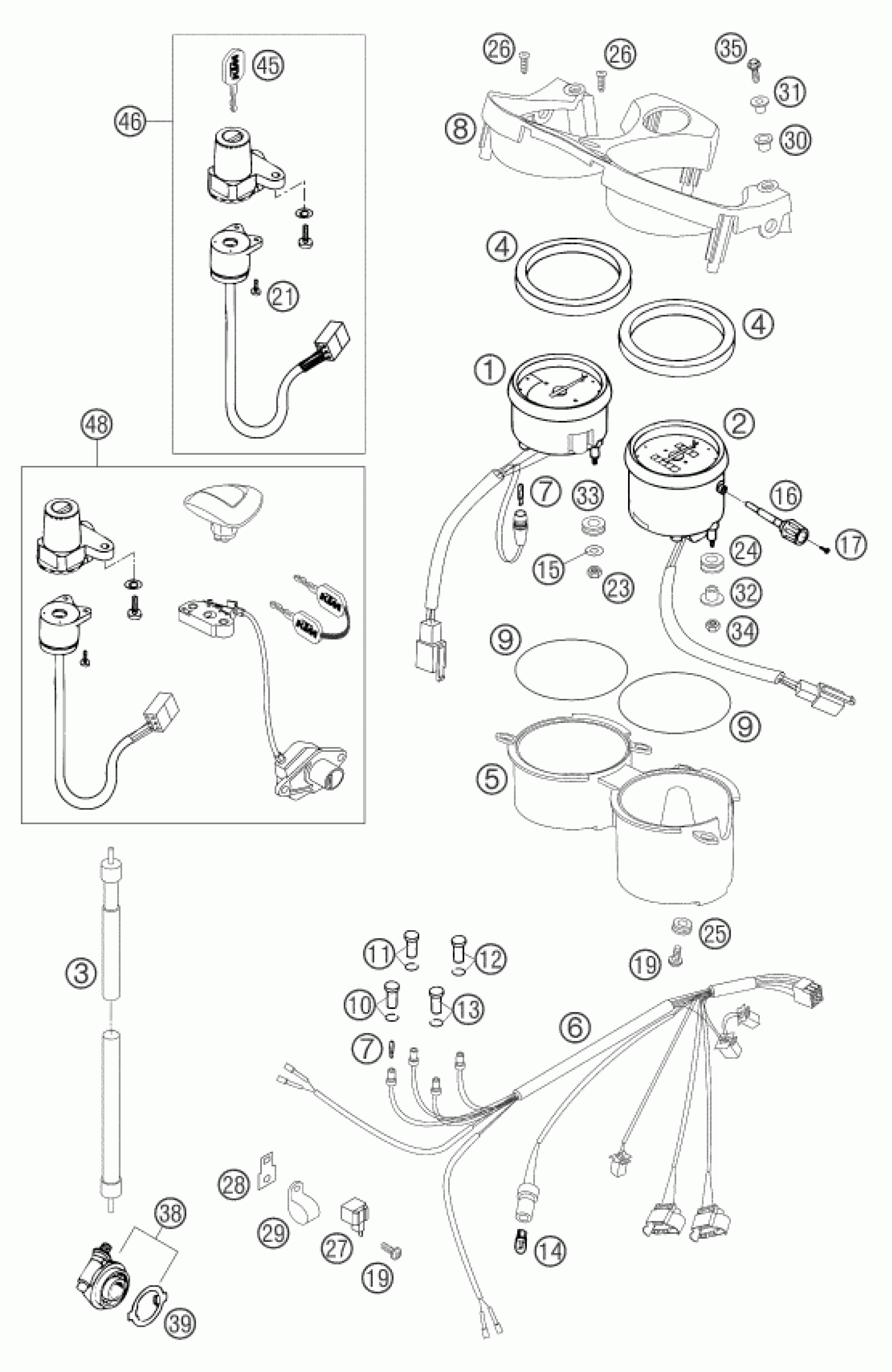

KTM 640 DUKE II BLACK 2005 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

1

TACHOMETER DUKE '99

58714075000

Unavailable

2

SPEEDOMETER MILES DUKE '99

58714057100

Unavailable

3

SPEEDOM.CABLE M12/12 785MM '99

58714055000

$93.15

4

FOAM RUBBER RING 92X110X15 '99

58714067000

$7.56

5

INSTRUMENTS BRACKET DUKE '99

58711051000

Unavailable

6

WIRING HARNESS COCKPIT DUKE'99

58711082000

Unavailable

7

BULB 12V 1,2W (W2X4,6D)

49111425000

Unavailable

8

INSTRUMENTS COVER DUKE '99

58714070000

Unavailable

9

O-RING 86,00X2,50 NBR70IT

0770860025

Unavailable

10

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

$6.63

11

NEUTRAL INDIC. LIGHT GREEN '98

58011023300

$6.72

12

TEMPERATURE WARN. LIGHT RED'98

58011022400

$6.54

13

FLASHER INDICAT.LIGHT GREEN'98

58011024300

$6.72

14

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

15

WASHER DIN9021-A 4,3

0021040003

$1.69

16

RESET KNOB FOR TRIPMETER '99

58714049000

Unavailable

17

SCREW FOR RESET KNOB '99

58714049010

Unavailable

19

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

21

FLAT HEAD SCREW DIN7985-M 4X12

0985040123

$1.69

23

HEXAGON NUT DIN0934-M 4

0934040003

$1.69

24

RUBBER GROMMIT BL. DA60/110/30

31008080000

Unavailable

25

rubber grommet D=8mm open

31008060000

$2.54

26

SCREW FOR PLASTIC D=5X18

0017050181

$1.69

27

FLASHER UNIT 97

44611207200

$49.83

28

BRACKET F. FLASHER REL. CURVED

58411031000

Unavailable

29

PVC CLAMP 17,4MM HEYCO 3381

57013070400

Unavailable

30

RUBBER GROMMIT D=7,6MM

31008070000

Unavailable

31

BUSHING F.INSTRUMENTS COVER

58714070050

$2.54

32

DISTANCE BUSHING '99

58714062010

Unavailable

33

RUBBER GROMMIT BLACK

31008008000

$2.54

34

Self locking nut DIN 985 M5

0985050003

$2.54

35

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

38

SPEEDOME.DRIVE 748208(2,66)'94

58311052000

Unavailable

39

DRIVING DOG F.SPEEDOM.DRIVE'92

58111053100

Unavailable

45

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

46

IGNITION LOCK 99

58411066100

Unavailable

48

LOCK SYSTEM DUKE USA 99

58711066144

Unavailable
