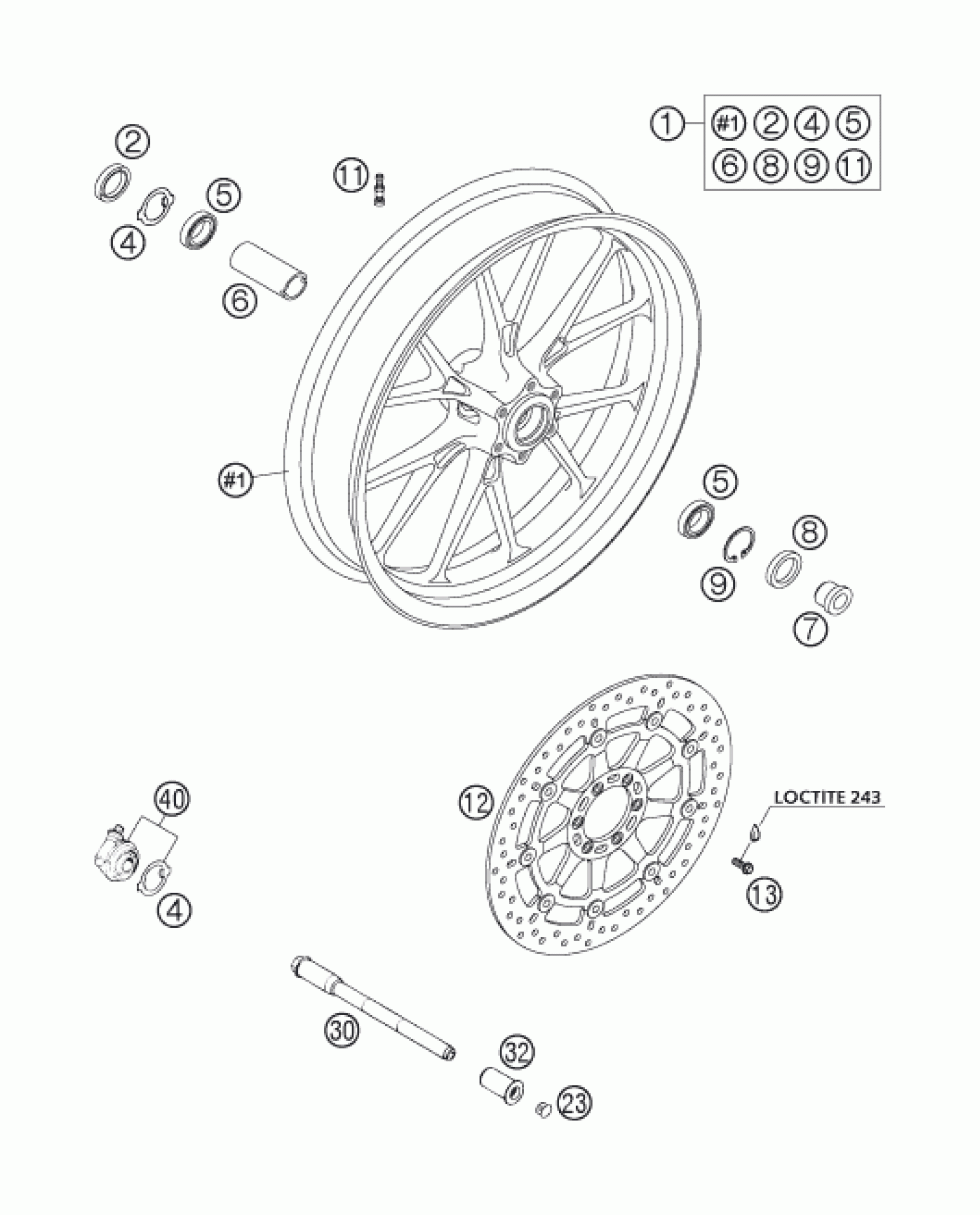

KTM 640 DUKE II BLACK 2005 FRONT WHEEL Diagram

#

Description

Price

1

FRONT WHEEL CPL. DUKE 03

5870906820030

Unavailable

2

SHAFT SEAL RING 40X55X7 BASL

0760405570

Unavailable

4

DRIVING DOG F.SPEEDOM.DRIVE'92

58111053100

Unavailable

5

GR.BALL BEAR. 6203-2RSHC3HMTF

0625062032

$17.94

6

BEAR.SPACER TUBE FRONT DUKE 03

58709011000

Unavailable

7

DISTANCE SLEEVE 17 X 30 X 26,7

58309051000

$11.59

8

SHAFT SEAL RING 25X40X7 BS

0760254072

Unavailable

9

CIRCLIP DIN0472-42X1,75

0472042175

$2.54

11

VALVE CPL. BREMBO DUKE 2003

58709076000

$8.69

12

BRAKE DISC FRONT D=320MM 03

58709060000

Unavailable

13

HH COLLAR SCREW M 8X20 WS=10

0015080203

Unavailable

23

PLASTIC CAP 3/8'' 2663

58301098000

Unavailable

30

WHEEL SPINDLE M17X250 DUKE'94

58309081000

Unavailable

32

AXLE NUT M17 X 1,5 DUKE'94

58309082000

Unavailable

40

SPEEDOME.DRIVE 748208(2,66)'94

58311052000

Unavailable
