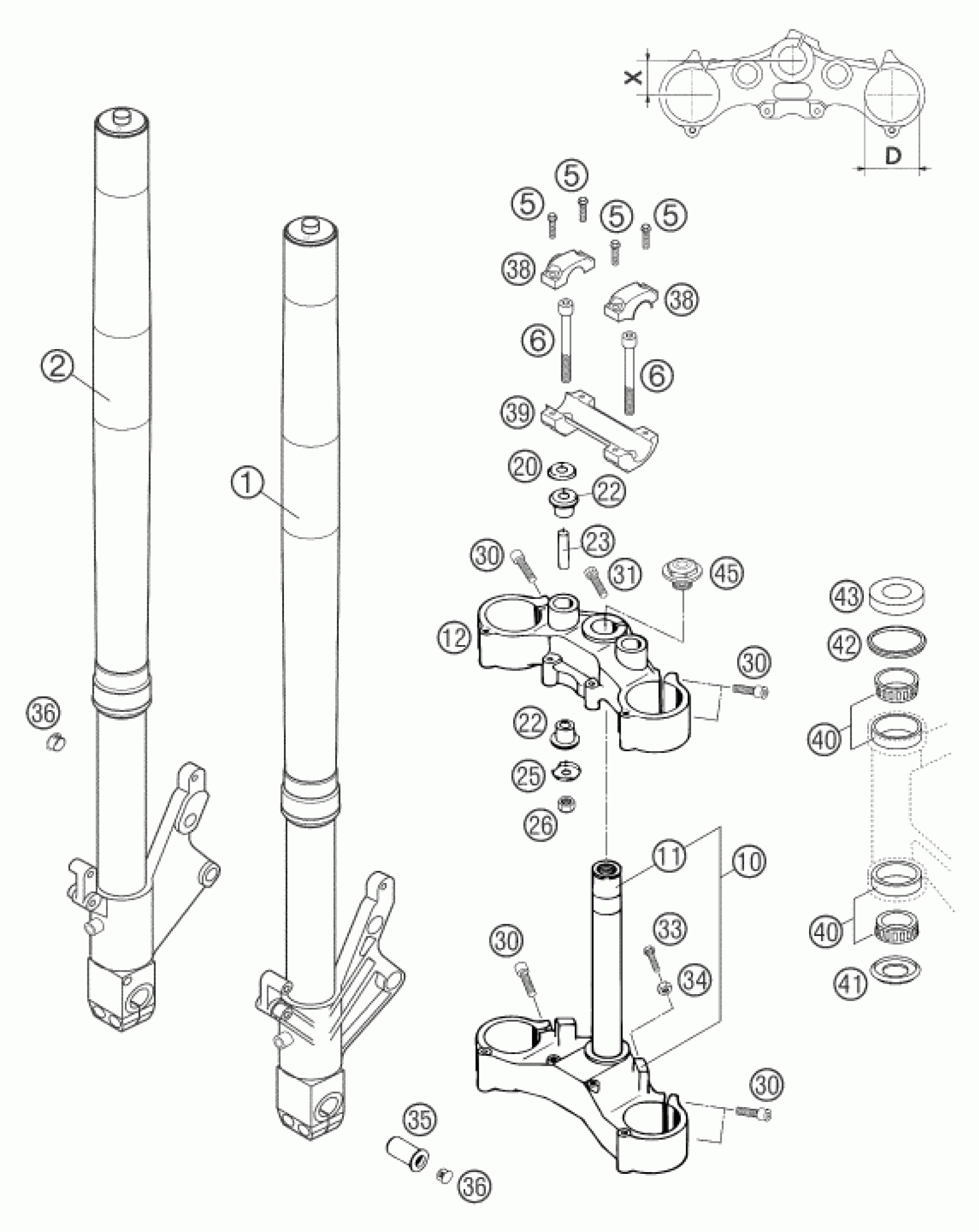

KTM 640 DUKE II BLACK 2005 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

22

rubber bushing

56401040000

$5.23

20

washer 10.5x32x2

56401042000

$4.11

23

SPACER TUBE 10,2X12X44

56401041100

$5.88

1

%FORK LEG L/S WP 4357 ROMA 05

05187A03LS

Unavailable

2

% FORK LEG R/S WP 4357 ROMA 05

05187A03RS

Unavailable

5

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

6

AH SCREW DIN6912-M10X70 10.9

0984100706

$5.51

10

BOT.TRIPLE CLAMP X=35MM/D=54MM

58701032000

Unavailable

11

FORK TUBE L=244 '91

50101033100

$85.17

12

TOP TRIPLE CLAMP X=35MM/D=54MM

58701034200

$123.16

45

STEER.HEAD SCREW M20X1,5 WS=27

50301036000

$10.38

25

WASHER 10,5X31

56401142000

$4.11

26

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

$2.05

30

AH SCREW DIN0912-M 8X35

0912080353

$2.05

31

AH SCREW DIN0912-M 8X25

0912080253

$2.05

33

HH SCREW DIN0933-M 7X25

0933070253

$1.73

34

HEXAGON NUT DIN0934-M 7

0934070003

$1.49

35

AXLE NUT M17 X 1,5 DUKE'94

58309082000

$12.02

36

PLASTIC CAP 3/8'' 2663

58301098000

$1.49

38

HANDLEBAR CLAMP D=28MM 2000

59001038200

$27.76

39

HANDLEBAR SUPPORT 28MM SC'99

59001039100

$147.25

40

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

41

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

42

STEARING HEAD GASKET TOP

54601184000

$7.10

43

STEERING HEAD COVER

54201086000

$8.50
