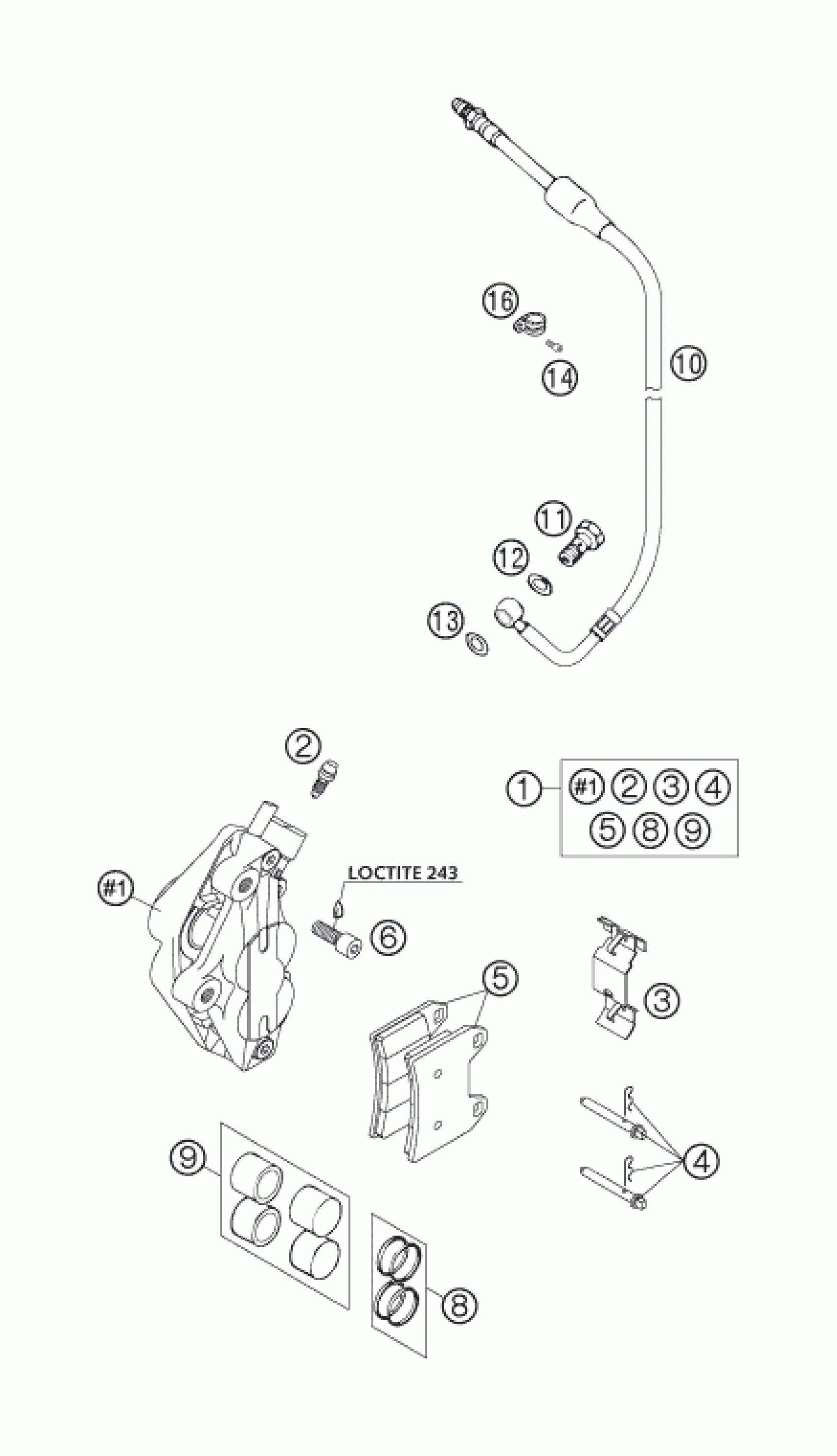

KTM 640 DUKE II BLACK 2005 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

BRAKE CALIPER FR. GOLD DUKE'99

58713015000

Unavailable

2

BLEEDER SCREW M8X1,25 '99

58713020000

Unavailable

3

RETAINING SPRING BREMBO '99

58713018000

$13.74

4

BOLT WHITH CLIP '99

58713017000

$18.41

5

BRAKE PAD SET FR.FERIT ID405FF

58713030000

Unavailable

6

AH SCREW DIN912 M10X30 10.9

0912100309

$5.32

8

REPAIR KIT SEAL.-RINGS DUKE 02

58713021000

$22.52

9

BRAKE PISTON DUKE 2002

58713019000

Unavailable

10

BRAKE HOSE FRONT 880MM '99

58713011000

Unavailable

11

HOLLOW SCREW M10X1X19

50213025000

$6.54

12

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.54

13

CU-SEAL RING DIN7603-10X16X1,5

42013026000

Unavailable

14

AH SCREW DIN0912-M 5X12

0912050123

$2.54

16

CLAMP RSGU 6/12

58711070000

Unavailable
