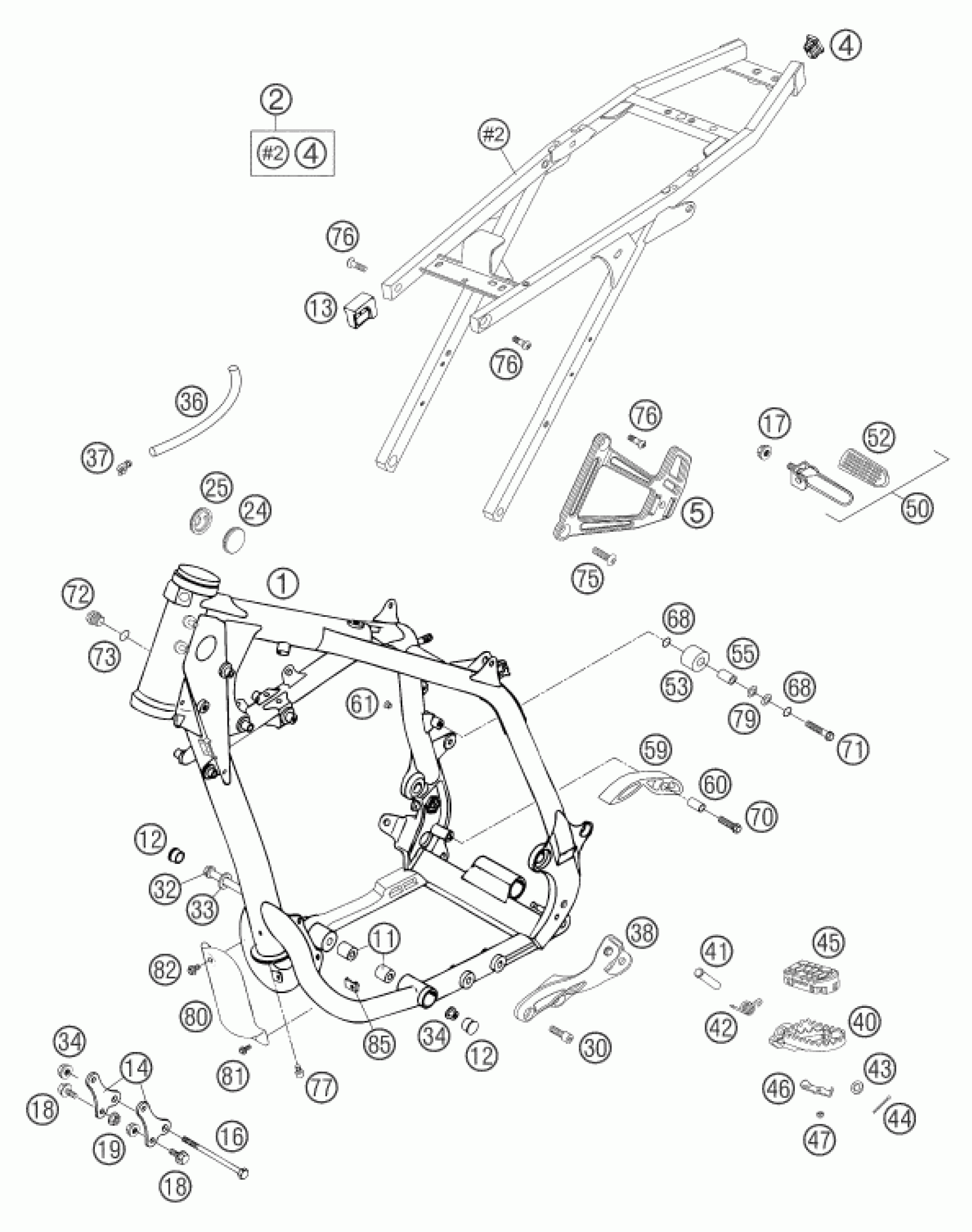

KTM 640 DUKE II BLACK 2005 FRAME Diagram

#

Description

Price

38

FOOTREST BRACKET L/S ALU

58403038000

Unavailable

40

FOOT PEG L/S SILVER 02

59003040250

Unavailable

47

Self locking nut DIN 985 M5

0985050003

$2.54

50

FOOTREST REAR L/S CPL. '95

58303050044

Unavailable

50

FOOT REST REAR R/S CPL.'95

58303150044

Unavailable

52

FOOTREST RUBBER L/S&R/S DUKE95

58303051000

$15.70

53

CHAIN ROLL 12X29X22,5 '98

58403060000

$6.07

55

BUSH CHAIN ROLL 8X12X23 '98

58403060065

$3.39

59

CHAIN SLIDING PIECE BELOW '97

51103053000

$9.15

60

BUSHING 8,2X10X20

51103053051

$4.24

61

PLASTIC CAP SFL10

54403135000

$2.54

68

LOCK WASHER 8MM

36003014000

$2.54

70

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

71

HH COLLAR SCREW M 8X40 WS=10

0015080403

Unavailable

72

PLUG DIN0910-M16X1,5

0910160153

Unavailable

73

CU-SEAL RING 16X22X2

0603162220

$2.54

75

AH SCREW 8X29 FL.HEAD 04

54510052200

Unavailable

76

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

77

AH SCREW DIN7984-M 6X10

0984060103

$1.69

79

washer DIN 125 A -8.4

0125080003

$1.69

80

COVER OIL FILTER '94

58303010000

Unavailable

81

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

82

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

85

clip nut M6

54603048100

$4.24

30

AH SCREW DIN6912-M10X25,10.9

0912100250

Unavailable

43

washer DIN 125 A 10.5

0125100003

$2.54

32

ENGINE BRAC.SCREW M10X160 WS13

58403014000

$18.22

33

WASHER 10,5 X 21 X 3

31004001100

Unavailable

34

COLLAR NUT M10 WS=13

54630044000

Unavailable

36

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

37

ANGLE PIECE '97

50303089000

$5.23

44

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

46

CLOSING PANEL FRONT L/S R/S 03

60003044010

$6.07

25

PLUG 37MM PERFORATED 04

54606004100

Unavailable

1

FRAME CPL. ''EH05'' DUKE 05

5870300144430

Unavailable

2

SUB FRAME CPL. BLK DUKE '99

58703002044

Unavailable

24

PLUG 37MM

54606004000

$2.54

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

42

FOOTREST SPRING L/S & R/S

54603041000

$5.23

4

PLUG 12 X 17 MM

58303002090

Unavailable

5

FOOTREST BRACKET RE.L/S BLA.04

5870304800030

Unavailable

13

TANK SUPPORT '93

58307015000

Unavailable

14

ENGINE SUPPORT AGW '94

58303055000

Unavailable

16

ENGINE BRAC.SCREW M10X110 WS13

58403013000

Unavailable

17

flanged hex nut DIN 6927 M10 W

49009082000

$3.39

18

HH COLLAR SCREW M 8X16 WS=13

49109481052

$3.39

19

Self locking nut M8 10.9

54310086200

$3.39

45

FOOTREST RUBBER FRONT L/S 03

60003040010

$22.15

45

FOOTREST RUBBER FRONT R/S 03

60003041010

$22.15

40

FOOT PEG R/S SILVER 02

59003041250

Unavailable

5

FOOTREST BRACKET R/S BLACK

5810300420030

Unavailable

11

SPACER ROLLER 10,3X20X22

58003012000

Unavailable

12

PVC CAP D=22MM

71001012100

$3.39
