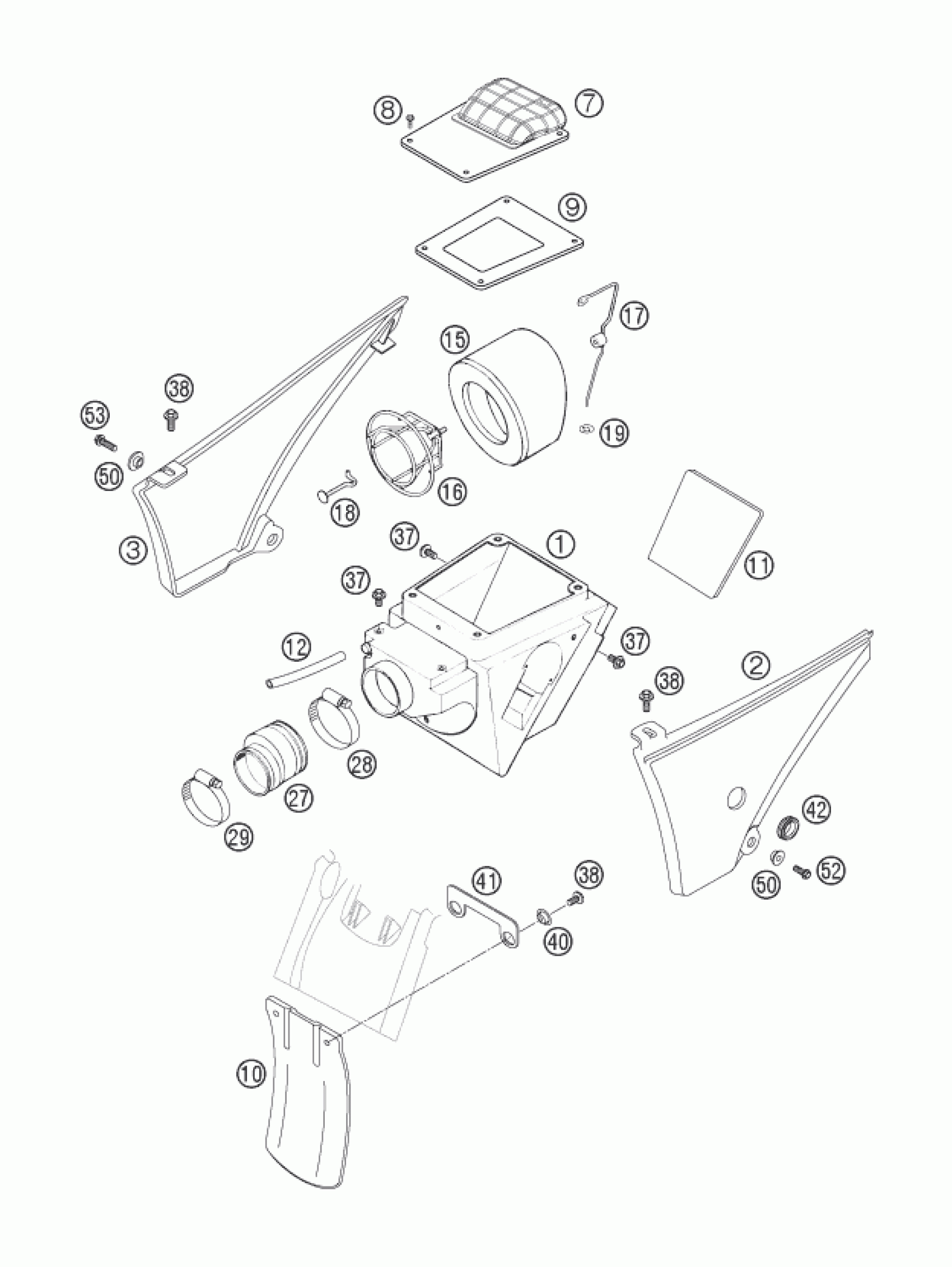

KTM 640 DUKE II BLACK 2005 AIR FILTER Diagram

#

Description

Price

1

FILTER BOX CPL. WITHOUT SLS'94

58306001100

Unavailable

2

FILTER BOX L/S DUKE '99

58706003000

Unavailable

3

FILTER BOX COVER R/S LC4'98

58406004000

Unavailable

7

FILTER BOX COVER CPL. 05

58606002044

Unavailable

8

HH COLLAR SCREW M 5X16 WS=8

0015050163

Unavailable

9

GASKET FILTER BOX COVER 05

58606090000

Unavailable

10

SPLASH PROTECT.FOR FILTER BOX

54606010000

Unavailable

11

DAMPING PLATE REAR BASE

58708019050

Unavailable

12

HOSE 10X14 PER METER

57005020001

Unavailable

15

AIRFILTER

56506015100

$28.13

16

FILTER CARRIER 05

58606016000

Unavailable

17

HOLDING HANGER FILTER DUKE '99

58706017000

Unavailable

18

HOOK FOR FILTER BRACKET

58306017050

Unavailable

19

CLAMPING DISK KS4

54606019004

$2.54

27

AIR FILTER BOOT 400/640 LC4'97

58406026000

$17.94

28

HOSE CLAMP 60-80MM

55006028000

$4.24

29

HOSE CLAMP 50-70MM

51006027000

$6.07

37

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

38

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

40

BUCKET

72210079000

$3.00

41

RETAINING BRACKET F. REAR

58706010150

Unavailable

42

RUBBER SLEEVE F.SEAT LOCK '99

58707050050

$3.39

50

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

52

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

53

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable
