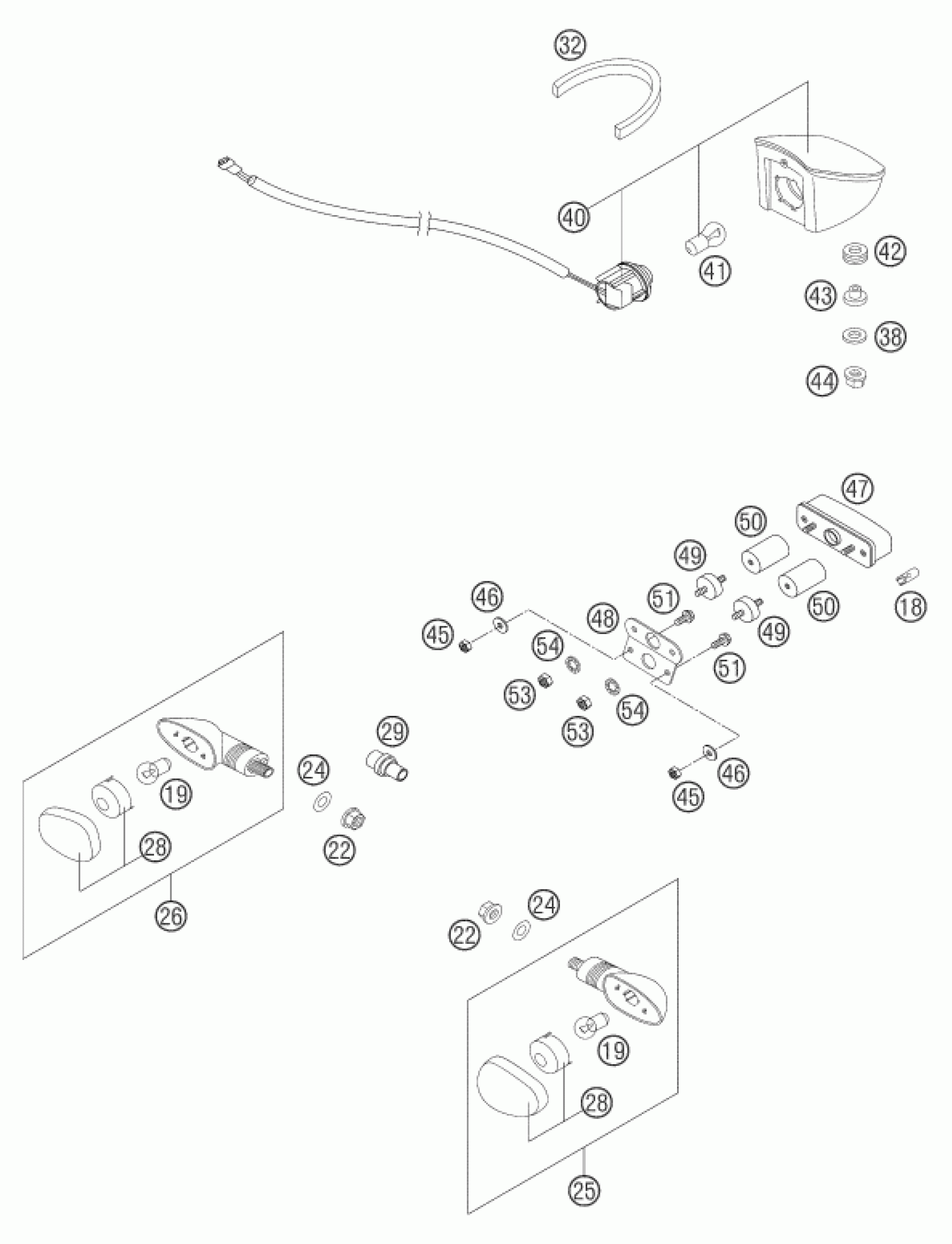

KTM 640 DUKE II BLACK 2004 LIGHTING SYSTEM Diagram

#

Description

Price

18

BULB 12V 5W (W2,1X9,5D)

49011435000

Unavailable

19

BULB 12V 10W (BA15S)

44111015100

Unavailable

22

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

24

washer DIN 125 A 10.5

0125100003

Unavailable

25

FLASHER CPL.FRONT L/S REAR R/S

58414025100

Unavailable

26

FLASHER CPL.FRONT R/S REAR L/S

58414026100

Unavailable

28

FLASHER LENS L/S & R/S 02

58414028100

Unavailable

29

FLASHER SUPPORT M10X1,25 SW=17

58714030000

Unavailable

32

FOAM 4X9MM PER METER

58211001063

Unavailable

38

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

Unavailable

40

REAR LIGHT CPL. LC4 2001

58414040100

Unavailable

41

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

Unavailable

42

RUBBER SLEEVE D=12MM

41001052000

Unavailable

43

REAR LIGHT BUSHING

58714048000

Unavailable

44

Self locking nut M6 - 10

56509064100

Unavailable

45

Self locking nut DIN 985 M5

0985050003

Unavailable

46

washer DIN 9021 A - 5.3

0021050003

Unavailable

47

LICENSE-PLATE ILLUMINATION '98

58414047000

Unavailable

48

BRACKET F.LICENSE-PLATE ILLUM.

58708015060

Unavailable

49

RUBBER GROMMET 20X10-M6X12 (2)

49001426000

Unavailable

50

CONNECTING PIECE M6/M5 L=25MM

58708015070

Unavailable

51

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

53

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

54

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable
