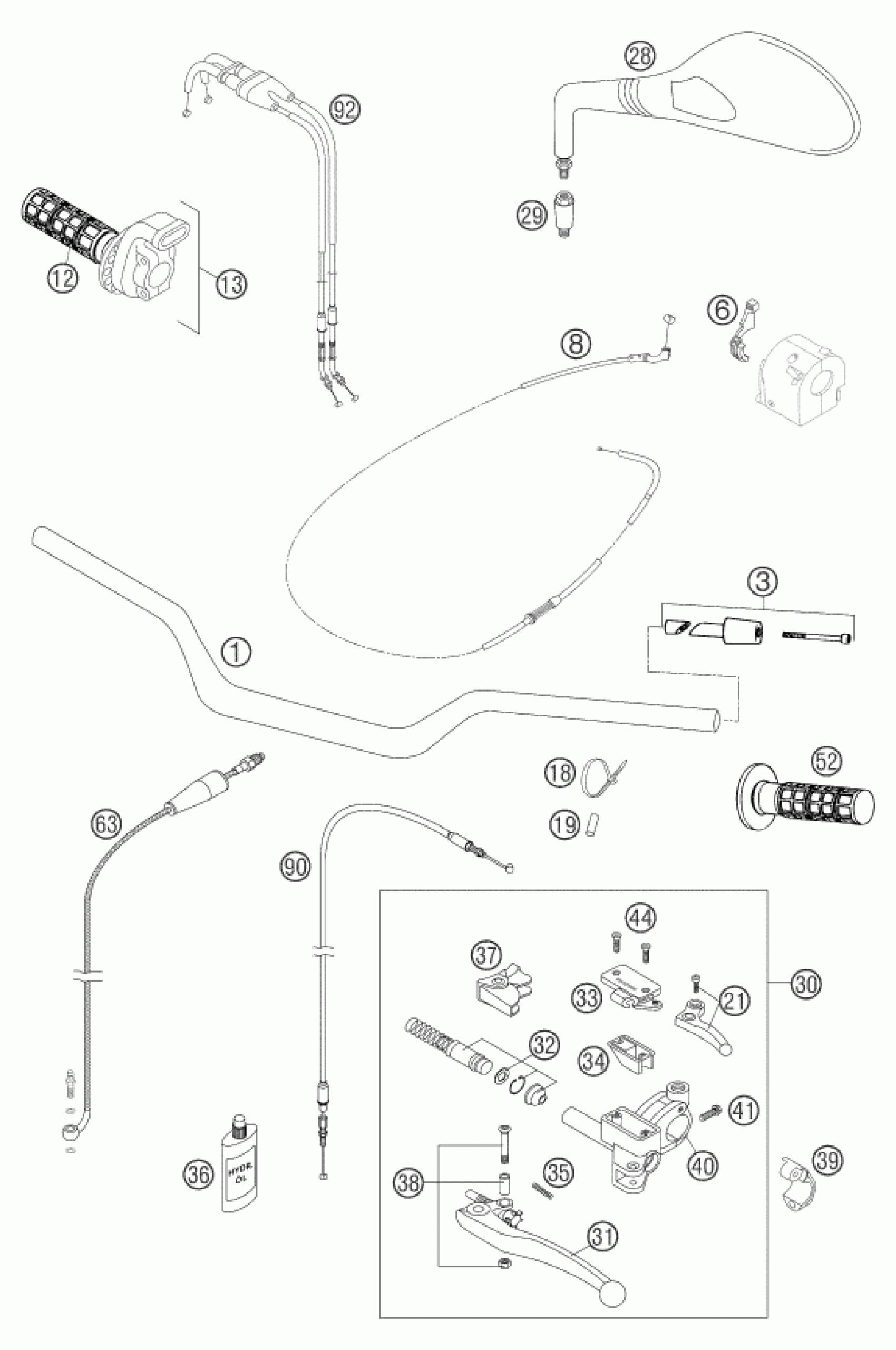

KTM 640 DUKE II BLACK 2004 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

HANDLEBAR ALU DUKE 2002

58702001000

Unavailable

3

VIBRATIONS ABSORBER CPL. '94

58302004044

Unavailable

6

CHOKE LEVER LC4 2002

58402050000

Unavailable

8

CHOKE CABLE F. MIKUNI LC4 02

58402095100

Unavailable

12

TWIST GRIP COVER PERFORATED

58302003100

Unavailable

13

THROTTLE GRIP CPL. DUKE 2000

58702010000

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

19

FUEL HOSE VITON 7X2MM

58007016001

Unavailable

21

LEVER CPL. RACING 2000

59002047000

Unavailable

28

REAR MIRROR L/S DUKE BLACK '99

58712040000

Unavailable

28

REAR MIRROR R/S DUKE BLACK '99

58712041000

Unavailable

29

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

30

MASTER CYLINDER CPL. LC4 03

58402030000

Unavailable

31

CLUTCH LEVER LONG CPL. 2003

60002031000

Unavailable

32

REP.SET PISTON MAGURA D=10.5

50302032000

Unavailable

33

COVER HYD.CLUTCH RACING 2000

59002033000

Unavailable

34

RUBBER FOR RESERVOIR '98

50302034000

Unavailable

35

SPRING FOR CLUTCH LEVER 03

59002035000

Unavailable

36

OIL FOR HYD.CLUTCH 50ML

50302036000

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

Unavailable

38

LEVER SCREW CPL. 125-200 '98

50302038000

Unavailable

39

CLAMP WITH PIN 2000

50302030150

Unavailable

40

CLAMP MIRROR WITH PIN

59002044000

Unavailable

41

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

Unavailable

52

FIXED GRIP L/S PERFORATED

58302052100

Unavailable

63

CLUTCH PIPE LC4/SXC/SM 03

58432063000

Unavailable

90

DECOMPR. CABLE LC4 03

58402094000

Unavailable

92

THROTT.CABLE ''OPEN-CLOSE'' 20

58402091600

Unavailable
