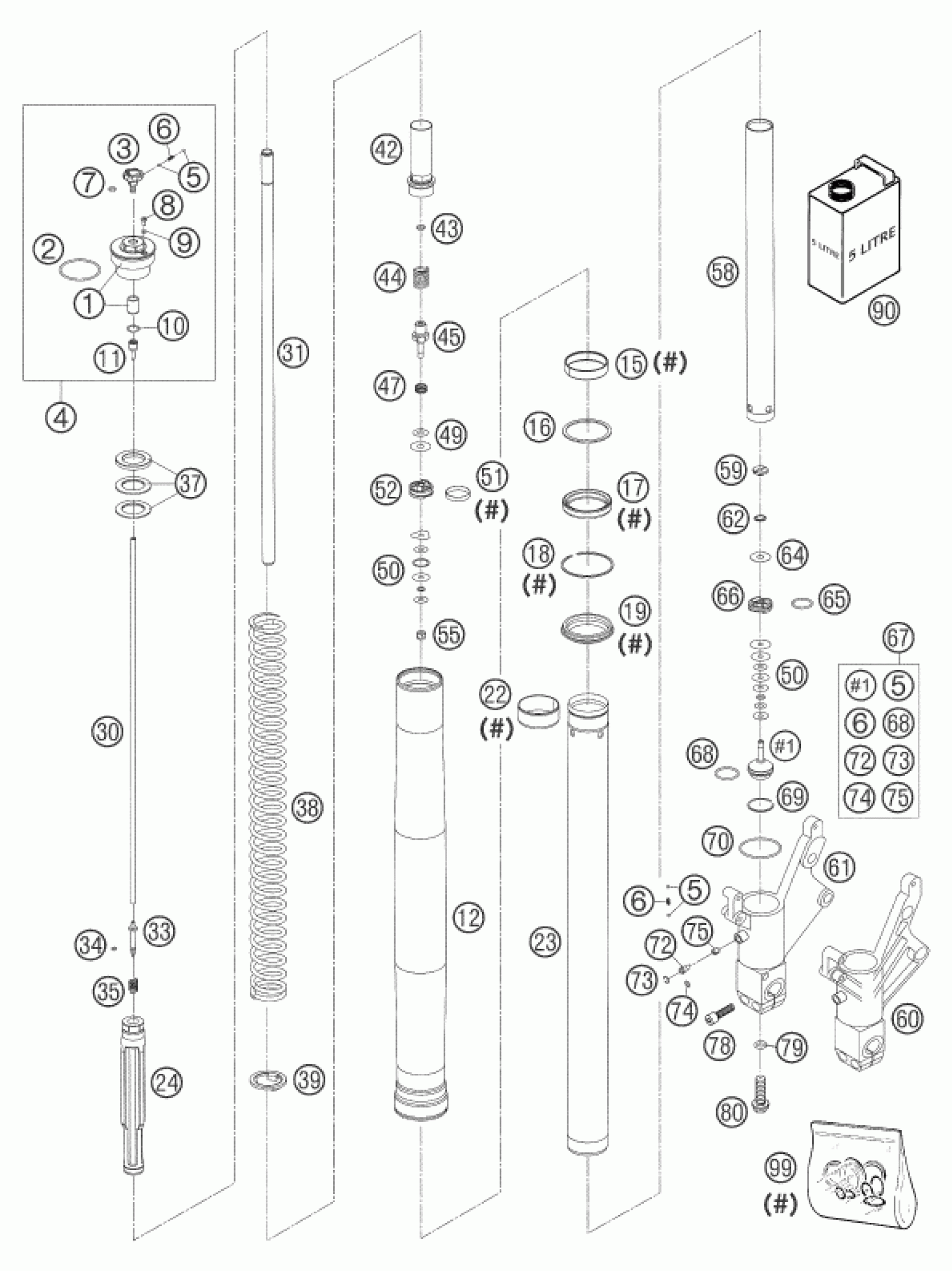

KTM 640 DUKE II BLACK 2004 FRONT FORK DISASSEMBLED Diagram

#

Description

Price

1

SREW CAP+BUSH M51X1,5

48600020S

Unavailable

2

O-ring 45x2 NBR70 siliconized

46810340

Unavailable

3

Adjuster rebound

48600018

Unavailable

4

SCREW CAP M51X1,5 CPL.

48600020S1

Unavailable

5

Steel ball d3

40540603

Unavailable

6

Spring (1,7) l7,9

48600028

Unavailable

7

O-ring 6x1,5 NBR70

48600044

Unavailable

8

Cross flat head screw M4x6

48600058

Unavailable

9

O-ring 3,7x1,6 NBR70

48600009

Unavailable

10

O-ring 12x1,5 NBR70

48600043

Unavailable

11

Tube tap d4x25

48600019

Unavailable

12

OUT.TUBE BLACK L=577MM D=54/57

43570210

Unavailable

15

pilot bushing 43x47x12

43570204

Unavailable

16

Supportwasher 45x52,5x1,5

43570092

Unavailable

17

Seal ring 43x52,9x9,5

43570201

Unavailable

18

Snap ring SB53x1,5 acc drawing

43570008

Unavailable

19

Dirtscarper NOK 43mm

43570202

Unavailable

22

Guide bushing 42x44x20

43570203

Unavailable

23

INNER TUBE D=43MM L=550MM 04

43570222

Unavailable

24

HYDR.STOP L=200MM D=27,5 CPL

43570142S

Unavailable

30

Adjustment tube 6x357

48600131

Unavailable

31

PISTONROD D=14MM L=391MM M11X1

48600255

Unavailable

33

Needle 6x42,6 rebound

48600189

Unavailable

34

O-ring 3x1,5 NBR70

48600046

Unavailable

35

Spring (7,2) 4-23 needle

48600033

Unavailable

37

Preload bush 26,5x42x1,5

48600053

Unavailable

37

Preload bush 42x26,5x2,5

48600036

Unavailable

37

Preload bush 26,5x42x5

48600037

Unavailable

37

Preload bush 26,5x42x10

48600038

Unavailable

38

SPRING 7,0 N/MM SET D=4,9MM

95010018S

Unavailable

39

Spring retainer 33,5x38,2x3

43570131

Unavailable

42

SCREW SLEEVE M29,3X1 L=65 CPL.

48600200S

Unavailable

43

O-ring 8x1,25 NBR70 siliconize

48600239

Unavailable

44

REBOUND SPRING 34,5X15X11

48600261

Unavailable

45

Tap 6x45 rebound

48600203

Unavailable

47

Spring (11,7) 1,5-8 valve

35480377

Unavailable

49

CHECK VALVE 8X24X0,1

48600062

Unavailable

49

CHECK VALVE 8X18X0,1

48600068

Unavailable

49

Shim 8x20x0,10

48600215

Unavailable

49

Shim 8x22x0,10

48600216

Unavailable

50

Shim 6x14x0,10

40540401

Unavailable

50

Shim 6x16x0,10

40540402

Unavailable

50

Shim 6x18x0,10

40540403

Unavailable

50

Shim 6x11x0,20

40541402

Unavailable

50

SHIM 6X16X0,25

40540414

Unavailable

50

Shim 6x11x0,30

40541391

Unavailable

50

SHIM 6X18X0,25

40540415

Unavailable

50

Shim 6x24x0,10

48600063

Unavailable

50

Shim 6x22x0,10

48600064

Unavailable

50

Shim 6x20x0,10

48600065

Unavailable

50

Shim 6x24x0,10 delta

48600116

Unavailable

51

Pistonring 26x28x5

48600060

Unavailable

52

Piston 6,05x27,65x12 rebound

48600042

Unavailable

55

Nut M6x0,5 h6,5 WAF10 rebound

40540486

Unavailable

58

TUBE 29,3X1X405 D=28MM

48600133

Unavailable

59

Nut valve M6x0,5 h6,5 WAF17

48600163

Unavailable

60

AXLE CLAMP L/S BLACK DUKE 2002

43570196

Unavailable

61

AXLE CLAMP R/S BLACK DUKE 2002

43570197

Unavailable

62

Spring (8,5) l6,5 valve

48600202

Unavailable

64

Shim 8x24x0,40

48600061

Unavailable

65

O-ring 21x2 NBR70

46811499

Unavailable

66

Piston 6x27,8x9 compression

48600047

Unavailable

67

TAP COMPRESSION CPL.

48600177S

Unavailable

68

O-RING NBR 15X1,5

43570180

Unavailable

69

SPRING RING 29,8X1,6

43570175

Unavailable

70

O-ring 41x2 NBR70 siliconized

43570023

Unavailable

72

Adjustment screw slot compress

48600034

Unavailable

73

Round-wire snap ring 12x1 DIN7

48600051

Unavailable

74

O-ring 8x2 NBR70

48600049

Unavailable

75

Needle 10x11,6 compression

48600190

Unavailable

78

AH SCREW DIN0912-M 8X30

0912080303

Unavailable

79

Copperwasher 12x16x1,5

46810146

Unavailable

80

HH collar screw M12x1x23

48600176

Unavailable

90

FORK OIL SAE 5

48600211S1

Unavailable

99

REPAIR-KIT GASKET 4357 MXMA 03

R510

Unavailable
