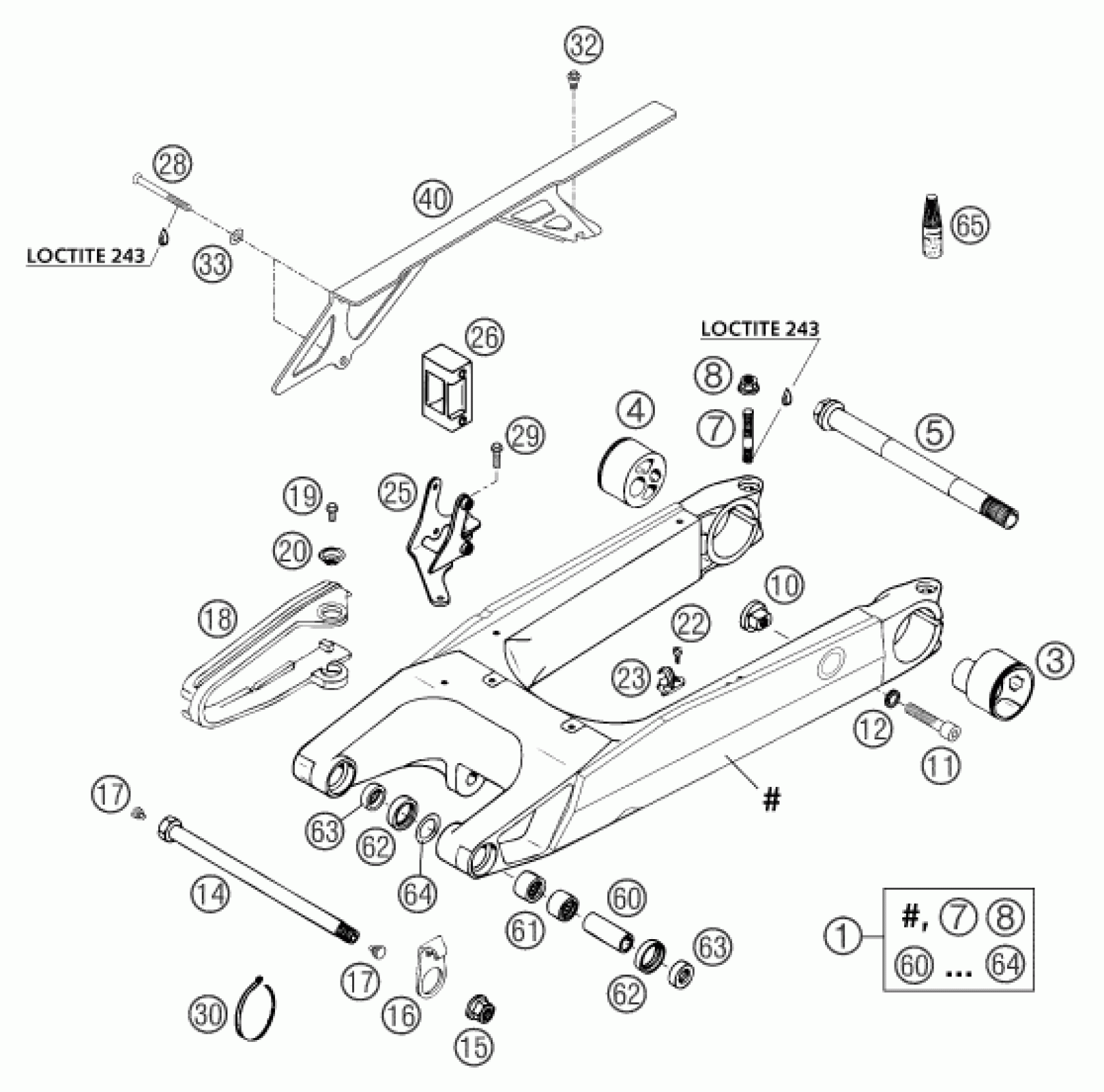

KTM 640 DUKE II BLACK 2003 SWING ARM Diagram

#

Description

Price

1

SWINGARM CPL. DUKE 2002

58704030244

$438.95

3

ECCENTRICS L/S '94

58303030011

$65.56

4

ECCENTRICS R/S '94

58303130011

$52.11

5

WHEEL SPINDLE REAR L=232MM '94

58310085000

$38.91

7

STUD DIN0835-M10X45

0835100456

$4.35

8

COLLAR NUT M10 WS=13

54630044000

$1.49

10

BRAKE CARRIER SUPPORT

58313050000

$14.35

11

AH SCREW DIN0912-M10X45

0912100453

$3.08

12

PAIR OF WASHERS M10 NORDLOCK

50233041100

$4.11

14

SWINGARM BOLT KPL. L=253

54603014100

$37.03

15

Self locking nut M14x1.5 WS19

54603015000

$5.51

16

BRAKE HOSE GUIDE '89

50230211000

$3.98

17

PLASTIC CAP SFL10

54403135000

$2.05

18

CHAIN SLIDING GUARD DUKE'94

58307073000

$26.83

19

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

20

BUCKET

72210079000

$3.00

22

SPECIAL SCREW M 5,0X10

0010050103

$2.05

23

RETAINING CLAMP FOR BRAKE HOSE

54611076000

$2.05

25

BRACKET FOR CHAIN GUIDE 02

58307068200

$29.71

26

CHAIN GUIDE SM/DUKE 2002

51007066600

$10.86

28

FLAT HEAD SCREW DIN7991 M6X55

0991060553

$1.57

29

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

30

Cable tie 200/4.6mm black

44011076200

Unavailable

32

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

33

WASHER F. CHAINGUARD SM 02

58404060051

$4.35

40

CHAINGUARD SM, DUKE 2002

58404060000

$28.63

60

BUSHING SLEEVE 15X20X38,75

50203081700

$17.20

61

NEEDLE BUSH HK2012V

59004031000

$15.51

62

radial shaft seal 25x32x7

0760253270

$6.63

63

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

$12.43

64

WASHER 20X32X0,8

59004033100

$1.73

65

LOCTITE 243 BLUE 5 ML

6899785

$28.04
