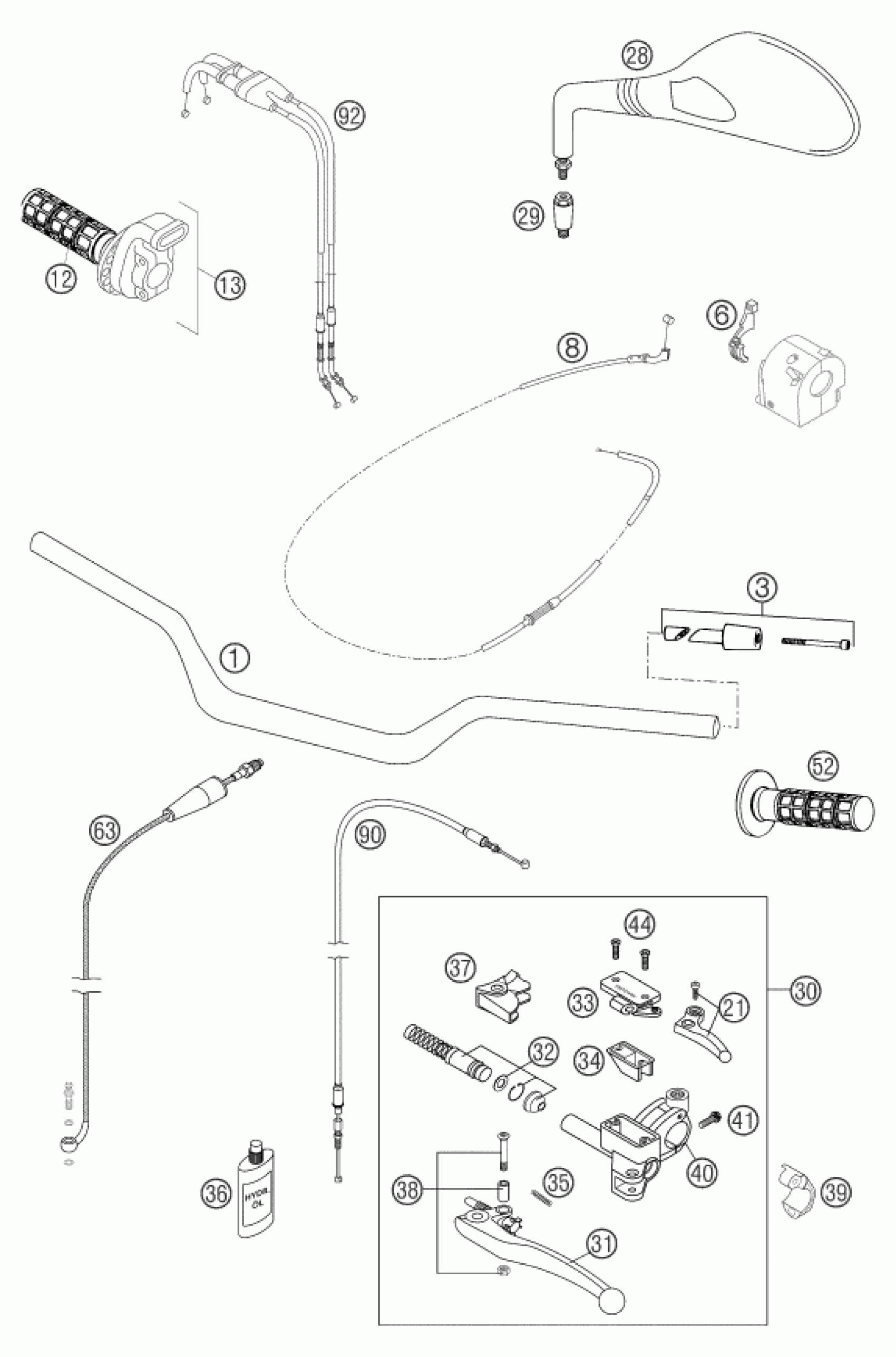

KTM 640 DUKE II BLACK 2003 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

HANDLEBAR ALU DUKE 2002

58702001000

$184.86

3

VIBRATIONS ABSORBER CPL. '94

58302004044

$36.01

6

CHOKE LEVER LC4 2002

58402050000

$8.01

8

CHOKE CABLE F. MIKUNI LC4 02

58402095100

$27.76

12

TWIST GRIP COVER DOMINO

58302003000

$27.76

13

THROTTLE GRIP CPL. DUKE 2000

58702010000

$58.71

21

LEVER CPL. RACING 2000

59002047000

$23.00

28

REAR MIRROR L/S DUKE BLACK '99

58712040000

$36.15

28

REAR MIRROR R/S DUKE BLACK '99

58712041000

$30.74

29

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

30

MASTER CYLINDER CPL. LC4 03

58402030000

$258.13

31

CLUTCH LEVER LONG CPL. 2003

59002031000

$40.10

31

CLUTCH LEVER SHORT CPL. 2003

54602031000

Unavailable

32

REP.SET PISTON MAGURA D=10.5

50302032000

$70.77

33

COVER HYD.CLUTCH RACING 2000

59002033000

$41.51

34

RUBBER FOR RESERVOIR '98

50302034000

$18.97

35

SPRING FOR CLUTCH LEVER 03

59002035000

$4.11

36

OIL FOR HYD.CLUTCH 50ML

50302036000

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

38

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46

39

CLAMP WITH PIN 2000

50302030150

Unavailable

40

CLAMP MIRROR WITH PIN

59002044000

$39.26

41

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

52

FIXED GRIP DOMINO '93

58302052000

$27.76

63

CLUTCH PIPE LC4/SXC/SM 03

58432063000

$98.91

90

DECOMPR. CABLE LC4 03

58402094000

$39.80

92

THROTT.CABLE ''OPEN-CLOSE'' 20

58402091600

$94.89
