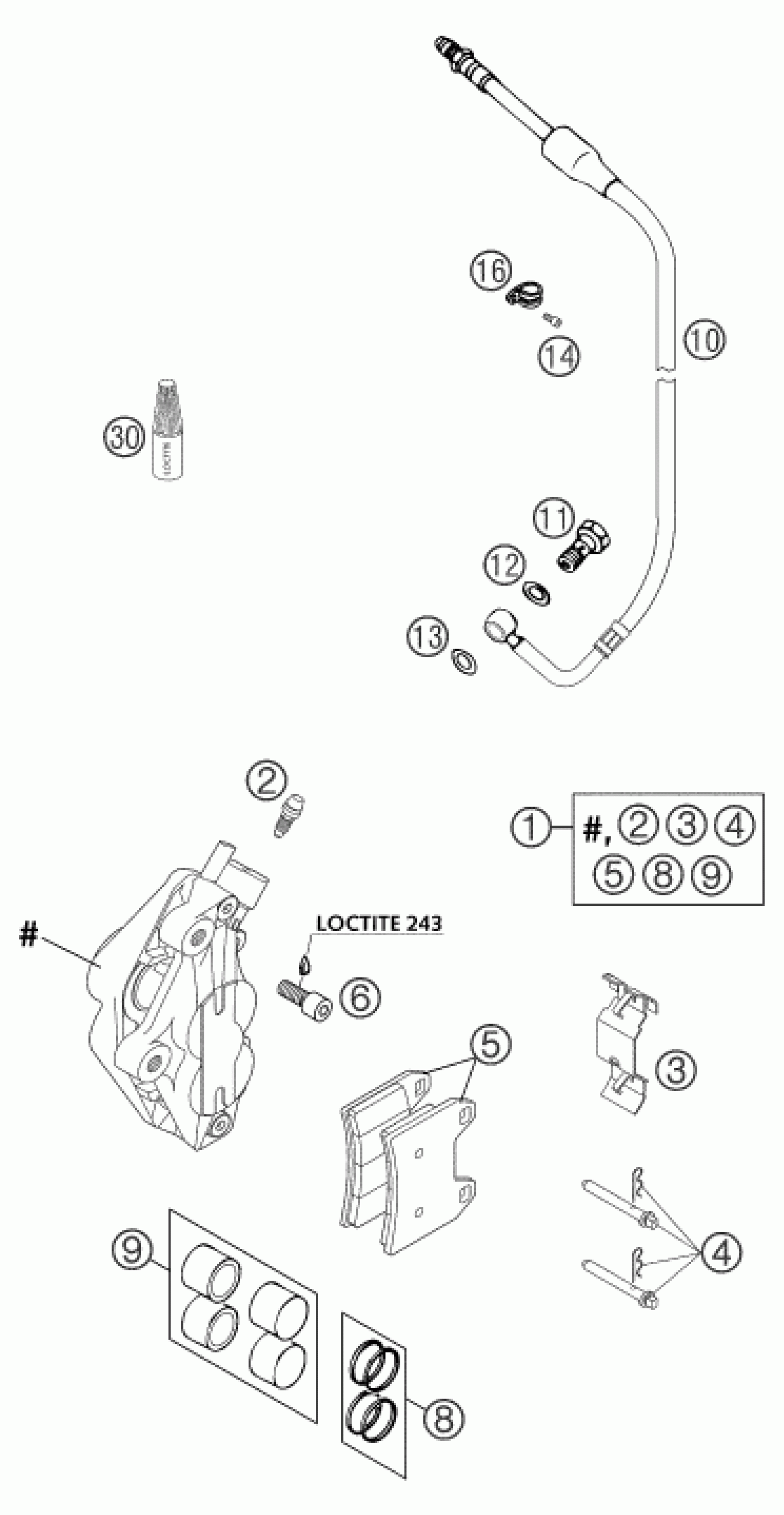

KTM 640 DUKE II BLACK 2003 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

BRAKE CALIPER FR. GOLD DUKE'99

58713015000

$198.37

2

BLEEDER SCREW M8X1,25 '99

58713020000

$5.31

3

RETAINING SPRING BREMBO '99

58713018000

$13.74

4

BOLT WHITH CLIP '99

58713017000

$18.41

5

BRAKE PAD SET FR.FERIT ID405FF

58713030000

$69.84

6

AH SCR.DIN912-M10X1,25X25 10.9

0912100259

$6.66

8

REPAIR KIT SEAL.-RINGS DUKE 02

58713021000

$22.52

9

BRAKE PISTON DUKE 2002

58713019000

$47.72

10

BRAKE HOSE FRONT 880MM '99

58713011000

$43.42

11

HOLLOW SCREW M10X1X19

50213025000

$6.54

12

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

13

CU-SEAL RING DIN7603-10X16X1,5

42013026000

$2.05

14

AH SCREW DIN0912-M 5X12

0912050123

$2.05

16

CLAMP RSGU 6/12

58711070000

$1.49

30

LOCTITE 243 BLUE 5 ML

6899785

$28.04
