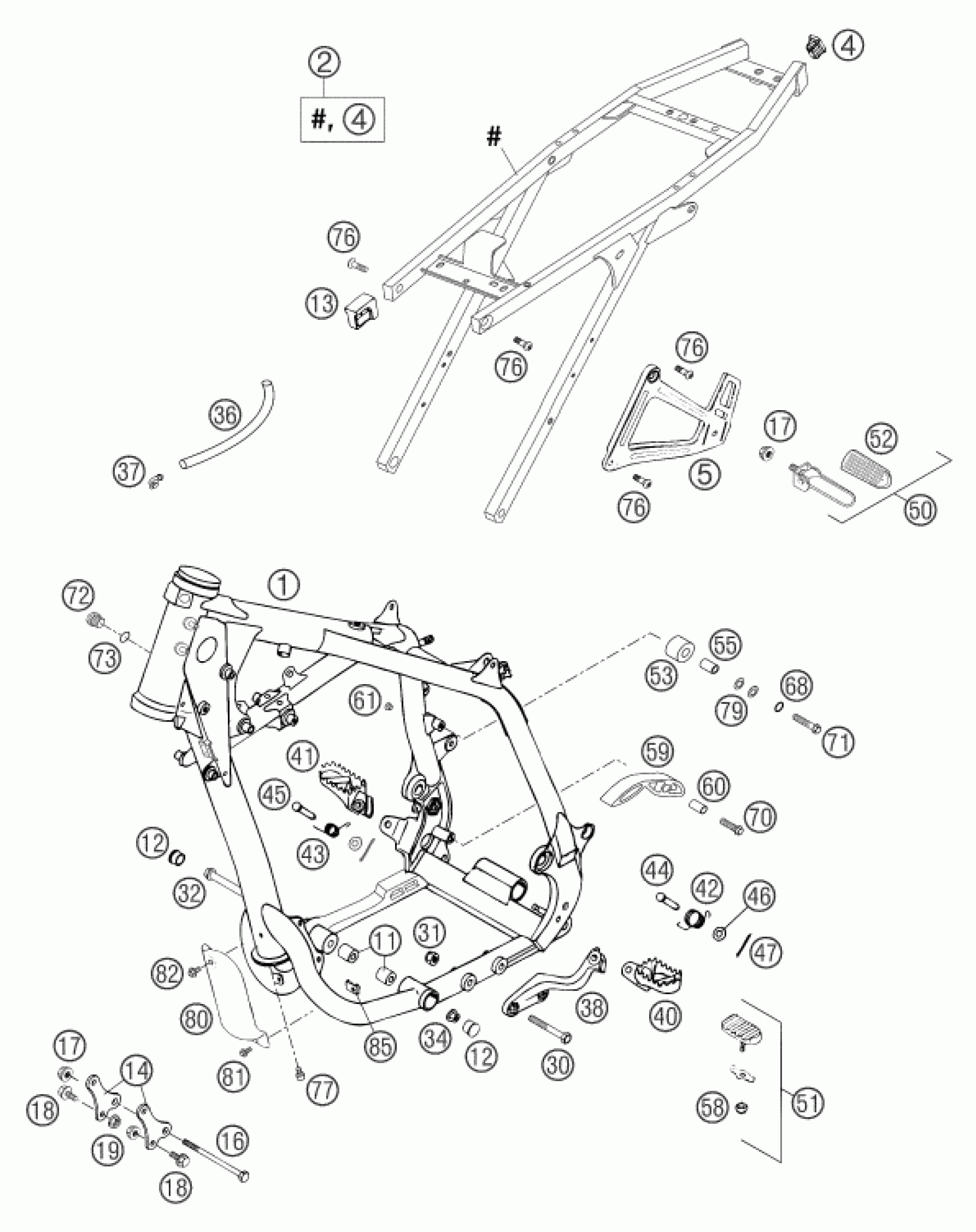

KTM 640 DUKE II BLACK 2003 FRAME Diagram

#

Description

Price

1

FRAME CPL. DUKE "K3" BLACK 03

5870300124430

Unavailable

2

SUB FRAME CPL. BLK DUKE '99

58703002044

Unavailable

4

PLUG 12 X 17 MM

58303002090

Unavailable

5

FOOTREST BRACKET L/S BLACK

5810300320030

Unavailable

5

FOOTREST BRACKET R/S BLACK

5810300420030

Unavailable

11

SPACER ROLLER 10,3X20X22

58003012000

Unavailable

12

PVC CAP D=22MM

71001012100

Unavailable

13

TANK SUPPORT '93

58307015000

Unavailable

14

ENGINE SUPPORT AGW '94

58303055000

Unavailable

16

ENGINE BRAC.SCREW M10X110 WS13

58403013000

Unavailable

17

flanged hex nut DIN 6927 M10 W

49009082000

Unavailable

18

HH COLLAR SCREW M 8X16 WS=13

49109481052

Unavailable

19

Self locking nut M8 10.9

54310086200

Unavailable

30

HH SCREW DIN0931-M10X60

0931100603

Unavailable

31

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

Unavailable

32

ENGINE BRAC.SCREW M10X160 WS13

58403014000

Unavailable

34

COLLAR NUT M10 WS=13

54630044000

Unavailable

36

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

37

ANGLE PIECE '97

50303089000

Unavailable

38

FOOTREST BRACKET L/S BLACK

5830303800030

Unavailable

40

FOOTREST L/S BLACK

5830304000030

Unavailable

41

FOOTREST R/S BLACK

5460314000030

Unavailable

42

FOOTREST SPRING L/S '93

58303041000

Unavailable

43

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

44

BOLT FOR FOOTREST

58303044000

Unavailable

45

BOLT FOR FOOTREST 9,8 X 50

54603044000

Unavailable

46

washer DIN 125 A 10.5

0125100003

Unavailable

47

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

50

FOOTREST REAR L/S CPL. '95

58303050044

Unavailable

50

FOOT REST REAR R/S CPL.'95

58303150044

Unavailable

51

FOOTREST RUBBER CPL. '94

58303045044

Unavailable

52

FOOTREST RUBBER L/S&R/S DUKE95

58303051000

Unavailable

53

CHAIN ROLL 12X29X22,5 '98

58403060000

Unavailable

55

BUSH CHAIN ROLL 8X12X23 '98

58403060065

Unavailable

58

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

59

CHAIN SLIDING PIECE BELOW '97

51103053000

Unavailable

60

BUSHING 8,2X10X20

51103053051

Unavailable

61

PLASTIC CAP SFL10

54403135000

Unavailable

68

LOCK WASHER 8MM

36003014000

Unavailable

70

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

71

HH COLLAR SCREW M 8X40 WS=10

0015080403

Unavailable

72

PLUG DIN0910-M16X1,5

0910160153

Unavailable

73

CU-SEAL RING 16X22X2

0603162220

Unavailable

76

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

77

AH SCREW DIN7984-M 6X10

0984060103

Unavailable

79

washer DIN 125 A -8.4

0125080003

Unavailable

80

COVER OIL FILTER '94

58303010000

Unavailable

81

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

82

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

85

RANGE CHANGE METAL NUT M5

54603048200

Unavailable
