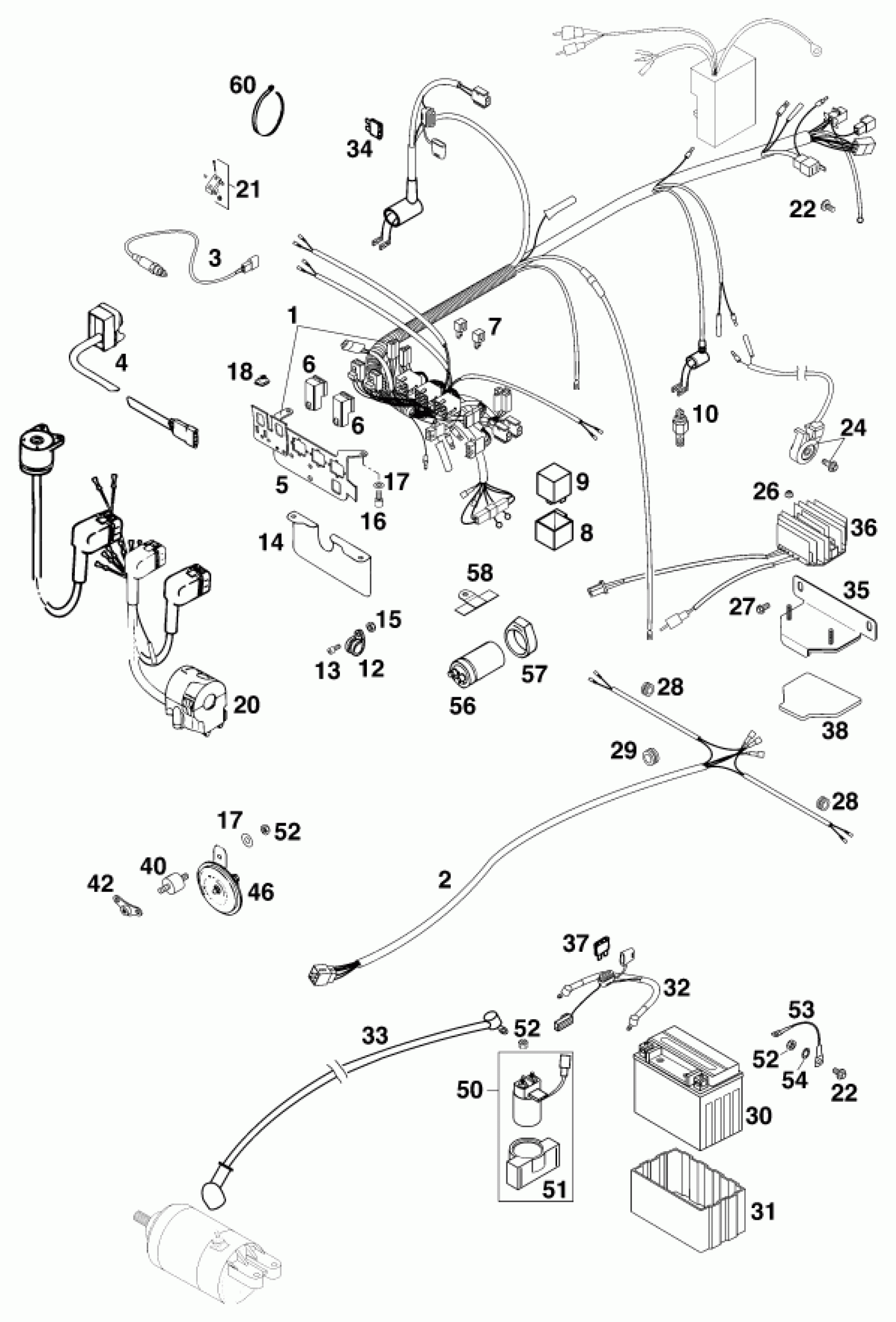

KTM 640 DUKE-E <1998 WIRING HARNESS Diagram

#

Description

Price

0

Cable tie 200/4.6mm black

44011076200

Unavailable

1

WIRING HARNESS FRONT DUKE'98

58411075300

Unavailable

2

WIRING HAR. REAR LC4-E/DUKE'97

58411176000

Unavailable

3

CLUTCH SWITCH '96

58411049000

$32.81

4

START-STOP SWITCH

58411074000

$29.62

5

BRACKET KPL. E-START '97

58411083000

Unavailable

6

STARTER RELAY '96

58411057000

$22.82

7

DIODE S3H-15 97

58411096100

$9.81

8

* FLASHER LIGHT BRACKET

54511046000

Unavailable

9

FLASHER UNIT HELLA BRK '96

44611207100

$50.22

10

REAR BRAKE LIGHT SWITCH '

50311051000

Unavailable

12

CLAMP RSGU 15/12

49007439000

$5.23

13

AH SCREW DIN0912-M 5X12

0912050123

$2.05

14

COVER CONNECTOR SUPPORT '93

58311083051

Unavailable

15

Self locking nut DIN 985 M5

0985050003

$2.05

16

AH SCREW DIN0912-M 6X12

0912060123

$3.08

17

WASHER DIN0125-A 6,4

0125060003

$1.49

18

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

20

LIGHT SWITCH KPL. CEV '94

58311570000

Unavailable

21

BRAKE LIGHT SWITCH CPL. FRONT

58313021100

$35.90

22

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

24

SIDE STAND SWITCH CPL. '97

58411045000

$97.89

26

SELF LOCKING NUT M6

56509064000

Unavailable

27

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

28

RUBBER SLEEVE D=6MM OPEN

57511027000

Unavailable

29

rubber grommet D=8mm open

31008060000

$2.05

30

BATTERY 12V 8AH '96

58411053000

$214.01

31

BATTERY COVER 96

58411053050

$22.65

32

BATTERY CABLE 190MM 10A '97

58411059150

Unavailable

33

STARTERCABLE 700 MM '97

58411059100

$23.65

34

FUSE 5 A

58011109005

$2.05

35

BATTERY BRACKET LC4-E/DUKE'97

58411055100

$18.67

36

VOLT.REGULATOR-RECTIFIER 12V

58411034100

$214.48

37

FUSE 10 A

58011109010

$2.05

38

METAMOLL FOR BATTERY BRACKET

58411055150

$4.20

40

RUBBER GROMMET 20X10-M6X12 (2)

49001426000

Unavailable

42

BRACKET FOR HORN '98

58411061000

Unavailable

46

DC HORN 12V NIKKO

54511060100

Unavailable

50

STARTER RELAY WITH HOLD.RUBBER

58411058000

$69.18

51

HOLD. RUBBER FOR STARTRELAY

58411058050

Unavailable

52

Self lock. nut DIN985-M6-A2

0985060003

$2.05

53

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

54

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

56

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59

57

CAPACITOR BRACKET

54511048000

$4.33

58

BRACKET FOR CAPACITOR

54611448000

Unavailable

60

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable
