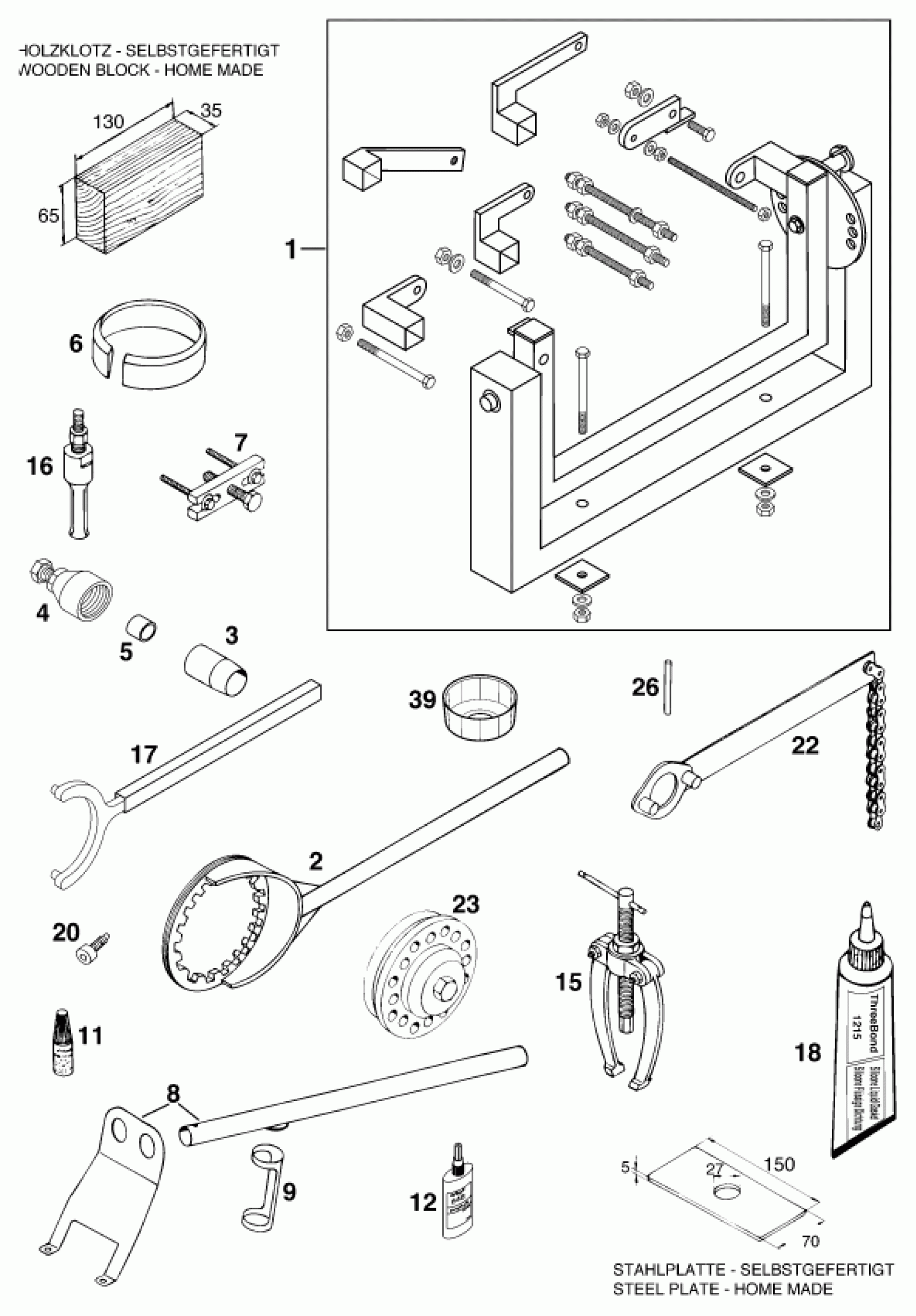

KTM 640 DUKE-E <1998> Special tools (engine) Diagram

#

Description

Price

1

ASSY SUPPORT (WITHOUT HOLDER)

56012001000

$969.33

2

CLUTCH HOLDER D=160MM LC4'94

58329003000

$113.09

3

MOUNTING SLEEVE D=25MM

58012005025

$36.46

4

MAGNETO EXTRACTOR

58429009000

$40.04

5

PROTECTOR CAP F.CRANKSHAFT M16

58429031000

$21.09

6

PISTON RING COMPRESSOR D=89MM

58012015089

$67.74

6

PISTON RING COMPRESSOR D=101MM

58012015101

$85.15

7

EXTRACTOR

16012005000

Unavailable

8

VALVE INSTALLATION KIT

58012019000

$109.58

9

PUSH INSERT

6276470

Unavailable

11

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

12

LOCTITE 648 GREEN 10ML

58429059000

Unavailable

15

BUSHING EXTRACTOR

15112017000

$179.32

16

INTERN.BEAR.PULLER 12-16 MM

15112018000

$249.22

16

INTERN.BEAR.PULLER 18-23 MM

15112018100

$278.54

17

HOLDING WRENCH FOR WHEEL

58429012000

$110.60

18

SILICON GASKET THREE-BOND

309098

$28.88

20

LOCATING SCREW M8 L=23

58030080000

$17.66

22

HOLDING SPANNER FOR SPROCKET

51012012000

$98.42

23

RIVETTING TOOL FOR CLUTCH

54629027000

$229.84

26

LIMIT PLUG GAUGE F.VALVE GUIDE

58029026007

$48.10

39

WRENCH SCREW FILTER

58329039000

Unavailable
