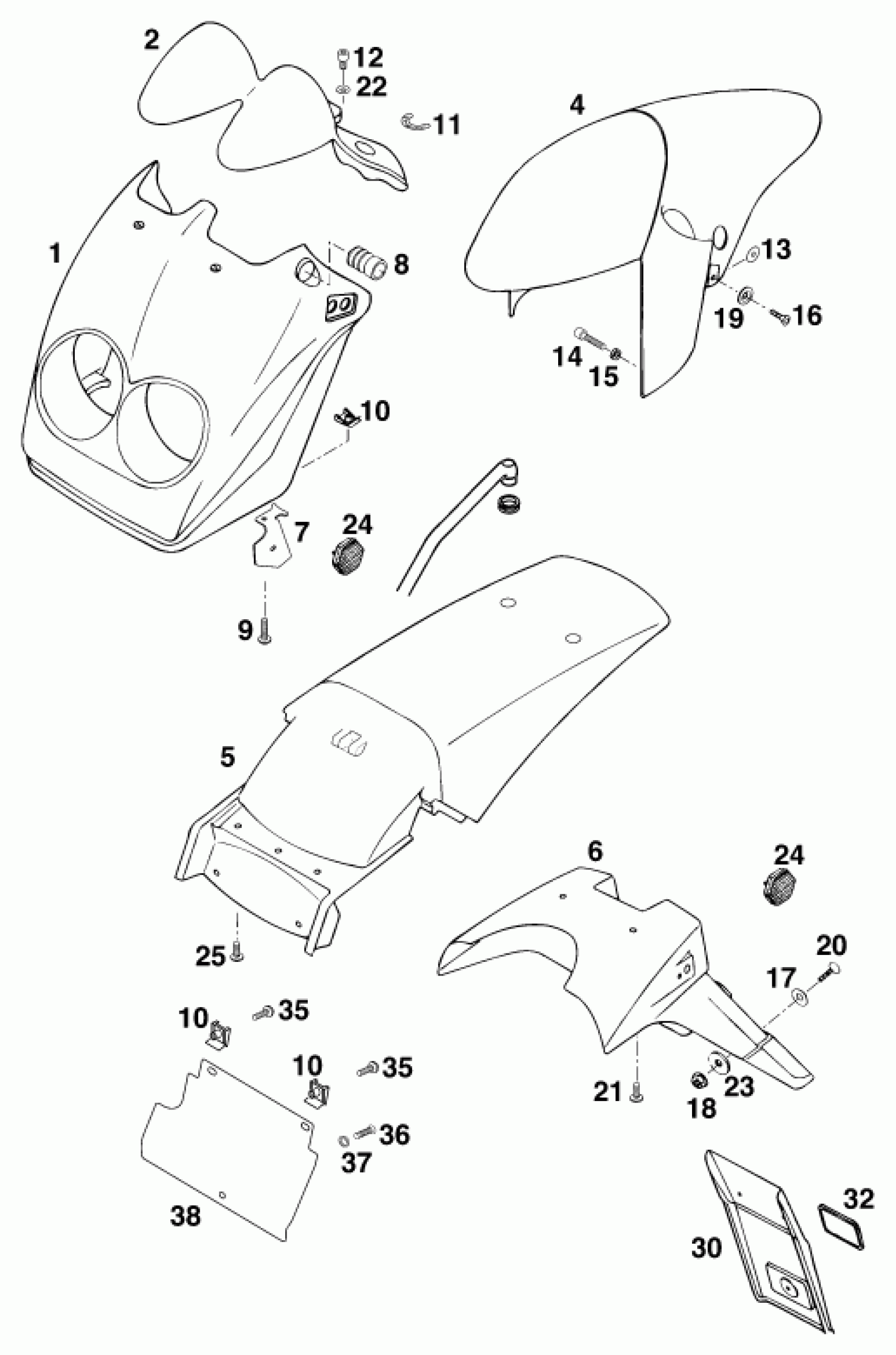

KTM 640 DUKE-E <1998 MASK, FENDERS Diagram

#

Description

Price

0

BRACKET REFLECTOR R/S '95

58312181000

Unavailable

1

HEAD LIGHT MASK ORANGE MET.'98

5831100100037

Unavailable

2

INTRUMENTS COVER DUKE '98

58311050200

$89.69

4

FRONT WHEEL FENDER ORANGE MET.

5830801000037

Unavailable

5

REAR FENDER ORANGE MET.DUKE'98

5830801310037

Unavailable

6

NUMBER PLATE CARRIER EGS '93

58308013051

$45.04

7

BRACKET REFLECTOR L/S '95

58312081000

Unavailable

8

CLUTCH LEVER BOOT '95

58302126000

$5.23

9

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

10

clip nut M6

54603048100

$4.11

11

* DECAL "BEAM LEVEL HIGH-LOW"

58414070050

Unavailable

12

AH SCREW DIN0912-M 6X10

0912060103

$1.49

13

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

$1.49

14

AH SCREW DIN0912-M 6X30

0912060303

$2.05

15

WASHER 6 X 12 X 3

12011016000

$1.49

16

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

$2.05

17

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

$4.11

18

SELF LOCKING NUT M6

56509064000

Unavailable

19

WASHER 12,5x20

58308046000

Unavailable

20

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

21

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

22

WASHER DIN0125-A 6,4

0125060003

$1.49

23

RUBBER WASHER 5X16X3

51005082100

$1.49

24

REFLECTOR YELLOW CPL.

16512080000

Unavailable

25

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

30

EXTENSION FOR NUMBER PLATE

49008216000

Unavailable

32

REFLECTOR SELF-ADHESIV RED

51012180000

Unavailable

35

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

36

SPECIAL SCREW Z 5,5X16

0016055163

$1.49

37

WASHER 6MM

40006006000

$1.49

38

FENDER EXTENSION LC4-E '97

58308013250

$13.01
