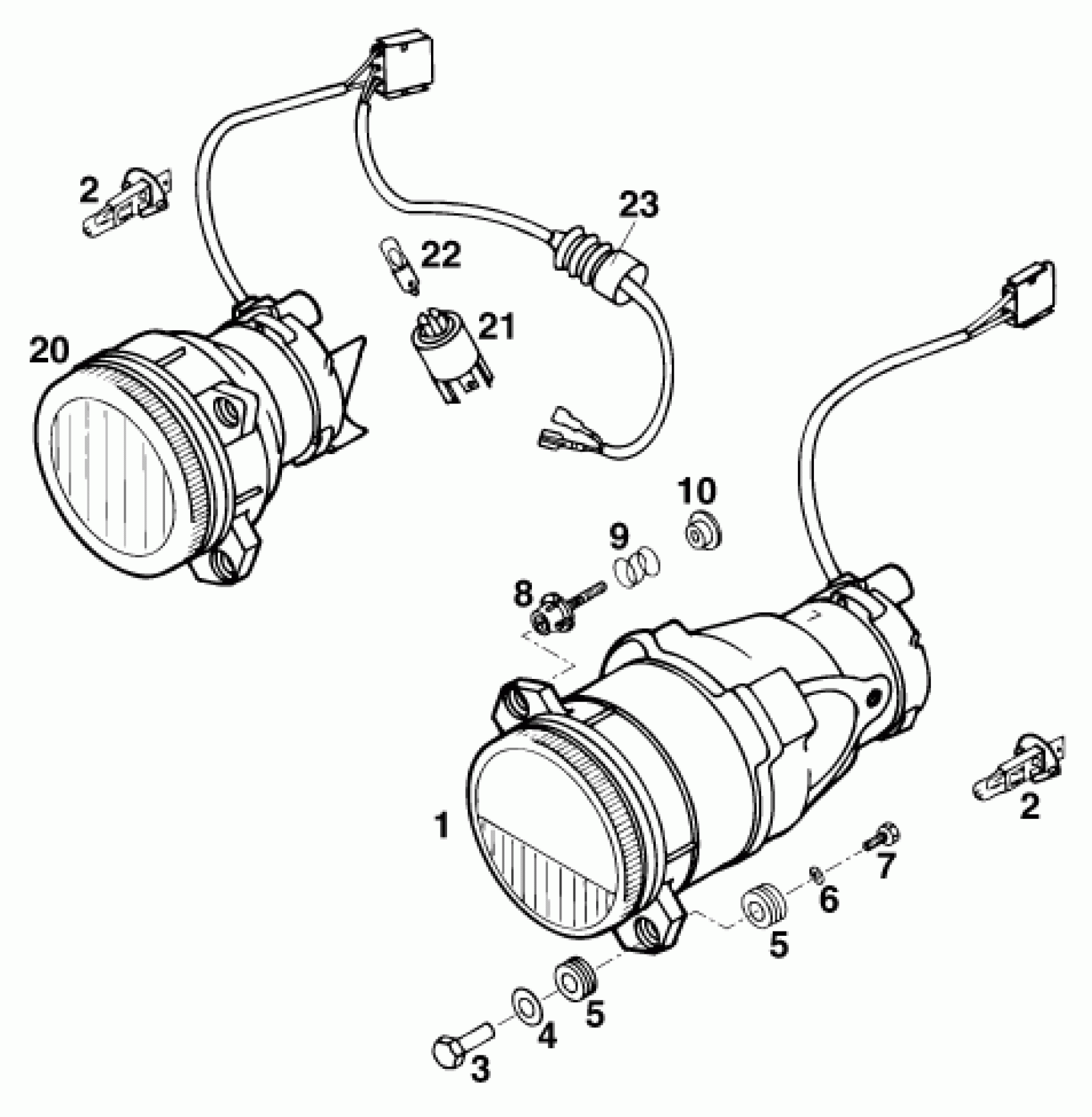

KTM 640 DUKE-E <1998> LIGHTING SYSTEM Diagram

#

Description

Price

1

HEADLIGHT LOW BEAM DUKE'94

58311010000

Unavailable

2

BULB H1 12V 55W WHITE

58311038000

Unavailable

3

SPECIAL NUT M5X25 WS=10

58311044000

Unavailable

4

washer DIN 125 A -8.4

0125080003

Unavailable

5

rubber grommet D=8mm open

31008060000

Unavailable

6

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

Unavailable

7

HH SCREW DIN0933-M 5X12

0933050123

Unavailable

8

ADJUSTING SCREW M5X30 CPL.

58311011000

Unavailable

9

SPRING L=16MM

12003007052

Unavailable

10

COLLAR BUSHING 5 X 10 X 6 ALU

54603073000

Unavailable

20

HEADLIGHT HIGHBEAM DUKE '94

58311110000

Unavailable

21

BULB SOCKET BA9S

58311039000

Unavailable

22

BULB 12V 2W BA9S

44111005100

Unavailable

23

CLUTCH LEVER BOOT '95

58302126000

Unavailable
