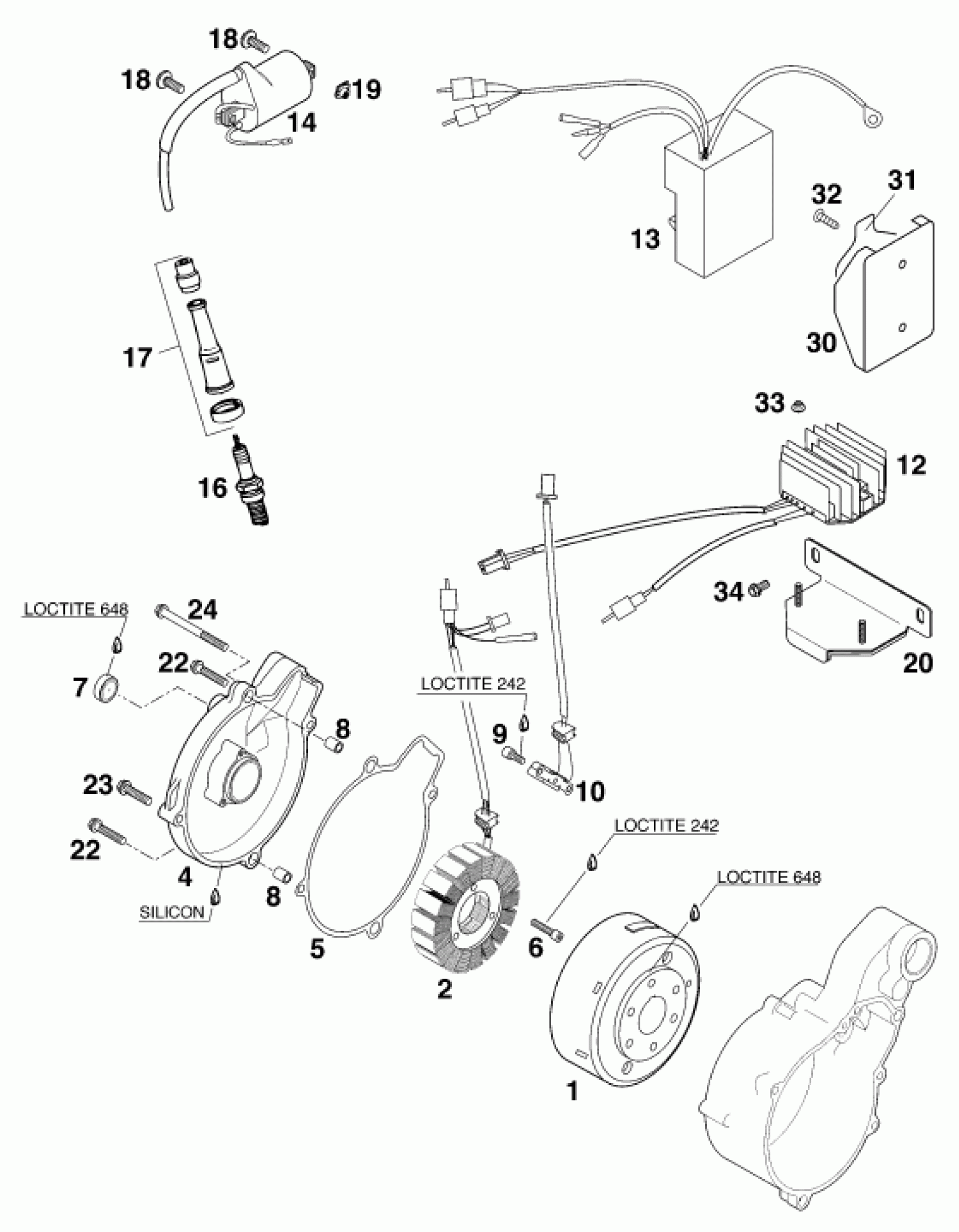

KTM 640 DUKE-E <1998 IGNITION SYSTEM Diagram

#

Description

Price

1

FLYWHEEL KOKUSAN GP9128 '97

58439005100

$340.33

2

STATOR KOKUSAN LOOSE '96

58439004000

$202.68

4

IGNITION COVER CPL. LC4-E '97

5843000214429

$76.13

5

IGNITION COVER GASKET '96

58430040000

$11.40

6

AH SCREW DIN0912-M 5X25

0912050253

$1.49

7

INSPECTION GLASS GW 20-7

58430095000

$25.05

8

DOWEL 9,8 X 7 X 10

49030090000

$2.05

9

SHCS DIN 912 M5x8

0912050083

$1.49

10

PULSER COIL

58439034000

$103.78

12

VOLT.REGULATOR-RECTIFIER 12V

58411034100

$214.48

13

DIGITAL BOX CDI CB7418 '

58439031000

Unavailable

13

DIGITALBOX CDI CB7428 '97

58439031100

$200.12

14

Ignition coil

58439006000

$75.45

16

SPARK PLUG NGK DR8EA

58439093008

$8.50

17

Spark plug connector

58031010000

$13.27

18

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

19

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

20

BATTERY BRACKET LC4-E/DUKE'97

58411055100

$18.67

22

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

23

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

24

HH COLLAR SCREW M 6X80 WS=8

0015060803

$2.05

30

RUBBER BRACKET FOR CDI '97

58439030100

$6.13

31

SUPPORT FOR RUBBER BRACKET '97

58439030150

Unavailable

32

SPECIAL SCREW Z 5,5X16

0016055163

$1.49

33

SELF LOCKING NUT M6

56509064000

Unavailable

34

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08
