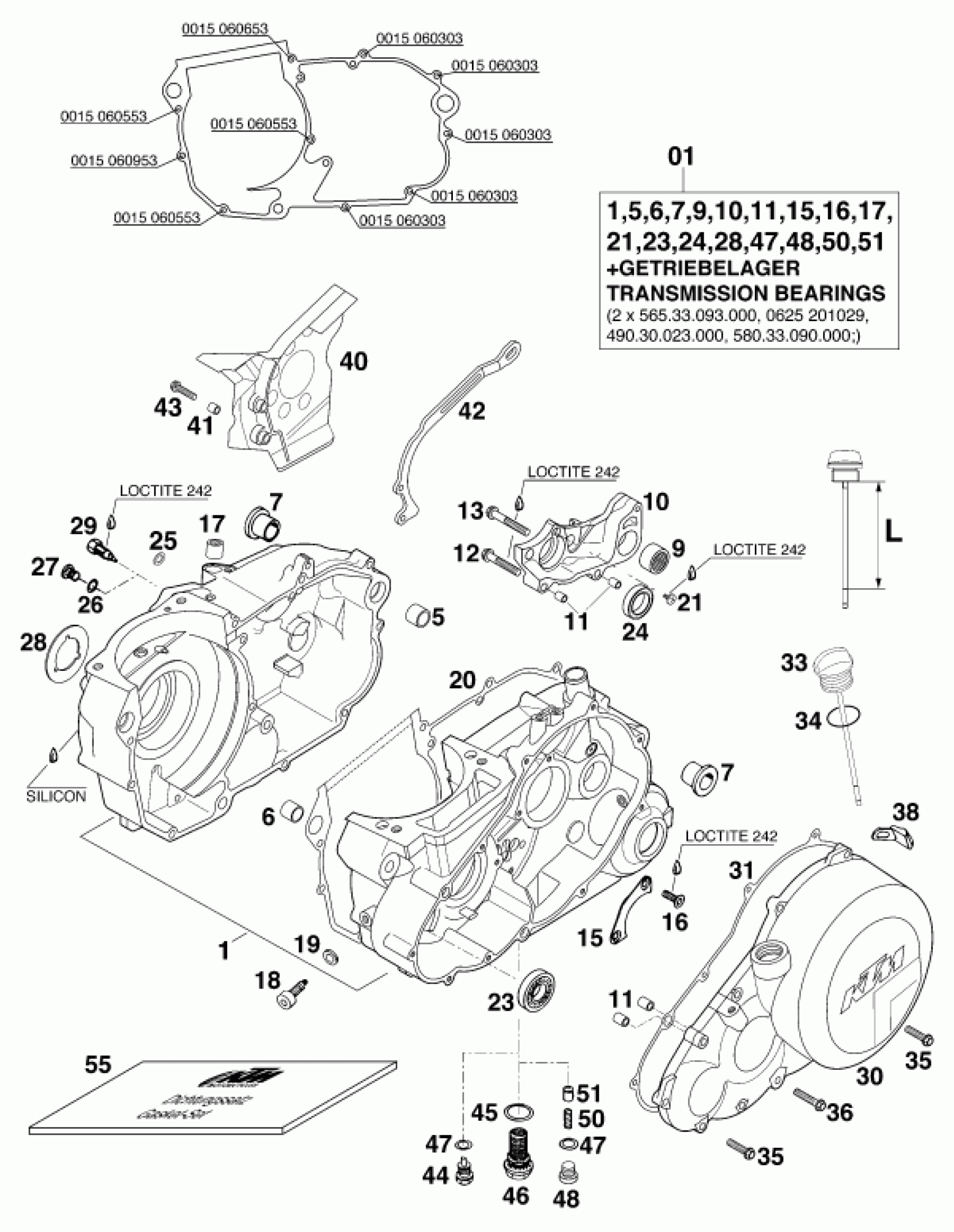

KTM 640 DUKE-E <1998> ENGINE CASE Diagram

#

Description

Price

1

ENGINE CASE CPL.W.TRAN.BEAR'98

5843000014429

Unavailable

5

DOWEL 19 X15,1X12

50130027000

$5.30

6

DOWEL 17 X 13 X 12

51030026100

$6.44

7

CRANK CASE BUSH

50130010000

$21.78

9

NEEDLE BEARING HK 2216

58033097000

$14.02

10

SHIFT MECHANISM SUPPORT LC4'94

58330011000

$90.03

11

DOWEL 9,8 X 7 X 10

49030090000

$2.05

12

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

13

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

15

RETAINING PLATE

56530017000

$12.03

16

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

$2.05

17

NEEDLE BEARING HK 1212

50332095000

$8.03

18

LOCATING SCREW M8 L=23

58030080000

$17.66

19

CU-SEAL RING 8 X 14 X 3

58030081000

$2.05

20

ENGINE CASE GASKET LC4-E '96

58430039000

Unavailable

21

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49

23

GROOVED BALL BEARING 16003 C3

0625160030

$20.56

24

BALL BEARING 61805 C3

0625618050

$43.94

25

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

26

CU-SEAL RING DIN7603-10X14X1

58038032010

Unavailable

27

OIL DRAIN PLUG M10X1,5 AH-WS=6

49030029000

Unavailable

28

STOP DISK 33 X 58 X 1,5

58440091000

$3.73

29

CONTACT SCREW M10 STEEL '98

58011081100

Unavailable

30

5833010100029

Unavailable

31

CLUTCH COVER GASKET '94

58330025000

$21.96

33

OIL DIPSTICK CPL. L=93MM '96

58330020144

$14.02

34

O-RING 16,00X3,00 NBR 70

0770160030

$2.05

35

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

36

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

38

BUMP RUBBER

58333041000

$6.62

40

* SPROCKET COVER BLACK '96

58430060000

Unavailable

41

BUSHING 6,5X8X11

54613038150

$4.11

42

CHAIN DAMPERSHEET 17T LC4-E

58430047000

Unavailable

42

CHAIN DAMPERSHEET 15/16T LC4-E

58430047100

Unavailable

43

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

44

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

45

CU-SEAL RING DIN7603-22X27X2

58038017100

$3.08

46

OIL DRAIN PLUG M22X1,5

58038019100

$26.97

47

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

48

threaded plug DIN 908 M12x1.5

0908120153

$4.11

50

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

51

VALVE PISTON D=10MM

58038028000

$37.77

55

GASKET SET LC4-E '

58430099000

Unavailable
