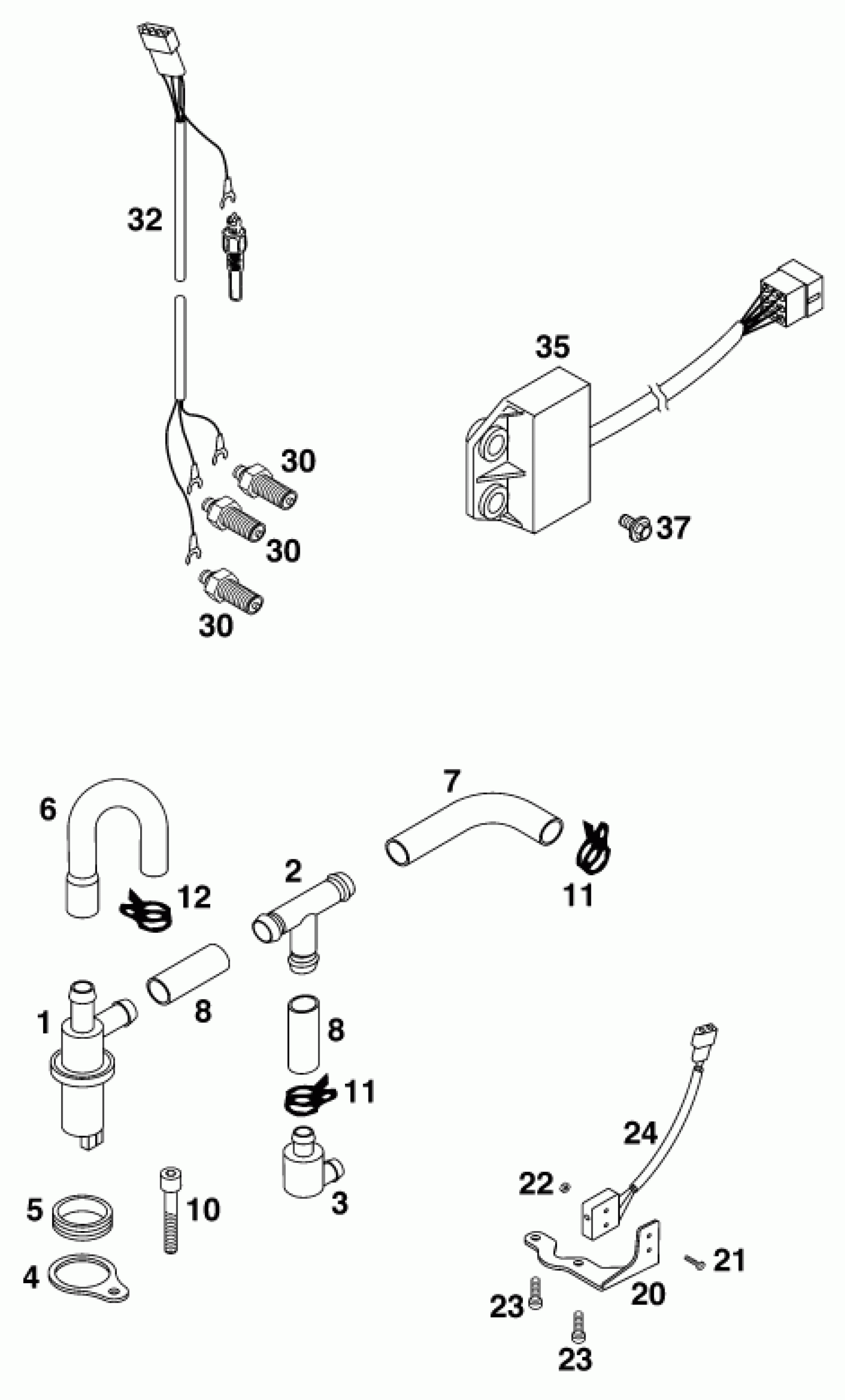

KTM 640 DUKE-E <1998> ELECTRONIC POWER CONTROL EPC Diagram

#

Description

Price

1

MAGNETIC VALVE PIRBURG EPC '98

58431067000

Unavailable

2

T-CONNECTION 12MM LC4 '98

58431072000

$8.35

3

AIR FILTER LC4 '98

58431070000

$18.56

4

BRACKET FOR MAGNETIC VALVE '98

58431069000

Unavailable

5

SLEEVE FOR STEERING HEAD

54635022000

$1.54

6

VACUUM HOSE FOR MAGNETIC V.'98

58431071000

Unavailable

7

ANGULAR HOSE T-CON.-CARBURETOR

58431097000

$13.11

8

TUBE 12MM T-CON.-FILTER '98

58431097100

$6.27

10

AH SCREW DIN0912-M 6X40 A2

0912060404

$2.05

11

YDNAC-CLAMP 15MM '98

58431082000

Unavailable

12

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

20

BRACKET FOR ENDSWITCH '98

58431080000

Unavailable

21

CYL.HEAD SCREW DIN0084-M 2X10

0084020103

Unavailable

22

HH NUT DIN0934-M 2

0934020003

$1.49

23

0500040163

Unavailable

24

MICRO SWITCH LC4 '98

58431065100

Unavailable

30

CONTACT SCREW M10 STEEL '98

58011081100

$19.35

32

WIRING HARN. EPC F. ENGINE LC4

58411085000

$7.96

35

CONTROL UNIT FOR EPC '98

58431063000

$148.32

37

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08
