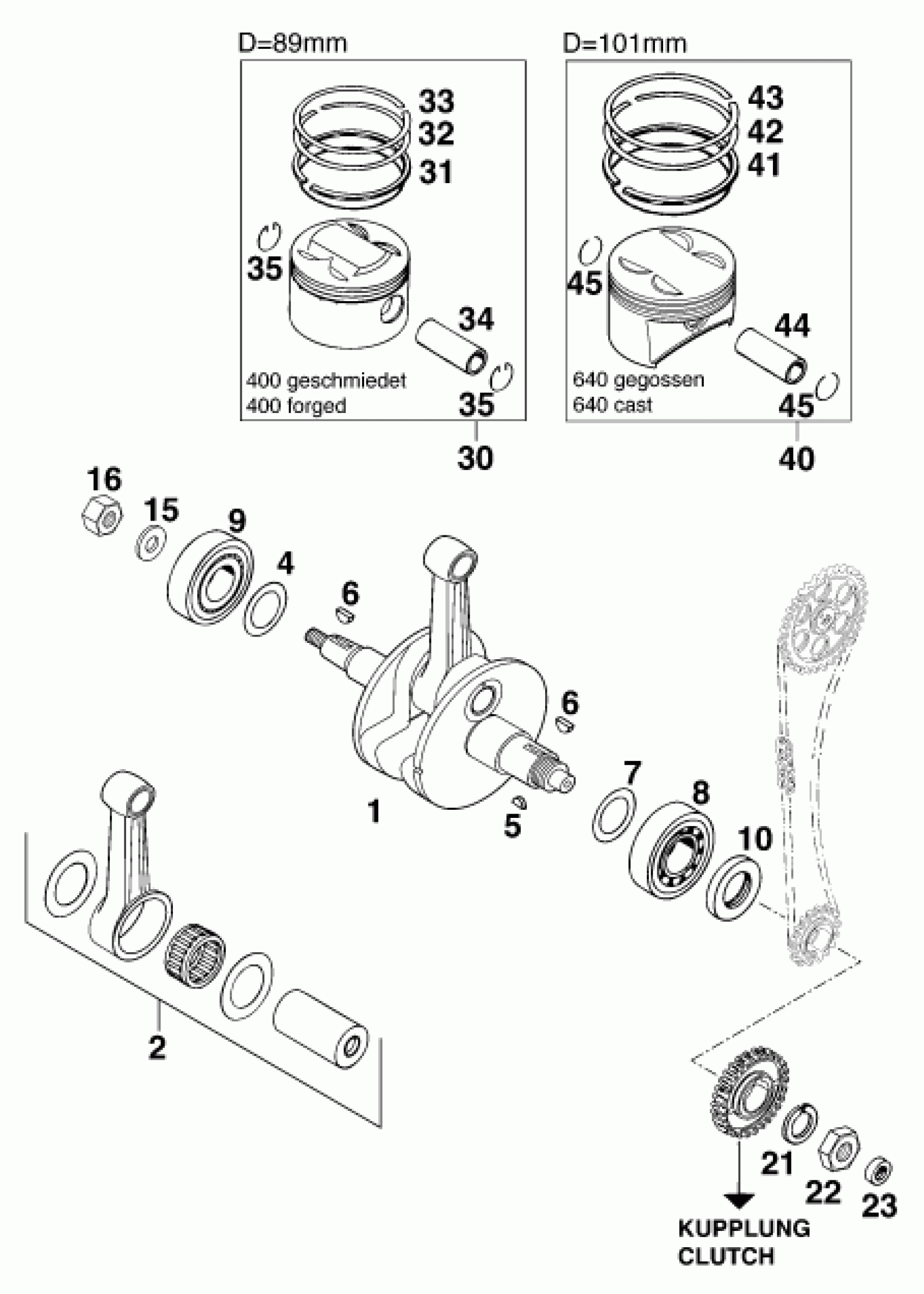

KTM 640 DUKE-E <1998 CRANKSHAFT, PISTON Diagram

#

Description

Price

1

CRANKSHAFT CPL. 400 LC4-E '97

57730018100

Unavailable

1

CRANKSHAFT CPL. 640 LC4-E '

58430018100

Unavailable

2

CONNECTING ROD REPAIR SET LC4

58030015044

$415.87

2

CONNECTING ROD REPAIR SET LC

58330015044

$345.34

4

SHIM WASHER 36X48X0,10

56530081000

Unavailable

4

SHIM WASHER 36X48X0,15

56530081100

Unavailable

4

SHIM WASHER 36X48X0,30

56530081300

Unavailable

5

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

6

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

7

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

7

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

7

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

8

CYL.ROLLER BEARING NJ 306 C3

58030082000

$115.28

9

CYL.ROLLER BEAR. NJ 207 ECP C3

56530123000

$90.13

10

SHAFT SEAL RING 30X47X7 BSL

0760304771

Unavailable

15

STEEL WASHER 16 X 30 X 3

58330095000

$2.73

16

HEX NUT M16x1,25 L/S

58430028000

$7.48

21

LOCKING RING VSK 20

58030019000

$1.73

22

HEXAGON NUT DIN0936-M20X1,5

0936200155

$6.52

23

SHAFT SEAL RING 12 X 22 X 7 B

0760122270

$15.79

30

PISTON I 89 MM CPL. FORGED

57530007000 I

Unavailable

30

PISTON II 89MM CPL. FORGED

57530007000 II

Unavailable

31

OIL SCRAPER RING 89MM

57530031000

$19.35

32

TAPERED COMPR.PISTON RING 89MM

57530132000

$14.60

33

RECTANGULAR RING 89MM

57530032000

$45.99

34

PISTON PIN 22 X 13 X 54,2

58030033000

$46.19

35

CIRCLIP A 22 X 1,5

58030074000

Unavailable

40

58330007300 I

Unavailable

40

58330007300 II

Unavailable

41

OIL SCRAPER RING 101x2,5

58330031300

$34.31

42

TAP.COMPR.PISTON RING 101X1,25

58330932100

$26.45

43

RECTANGULAR RING 101x1,25

58330832000

$37.92

44

PISTON PIN 22 X 13 X 60

58330833000

$46.27

45

CIRCLIP C 22 X 1,5

58030074100

$1.78
