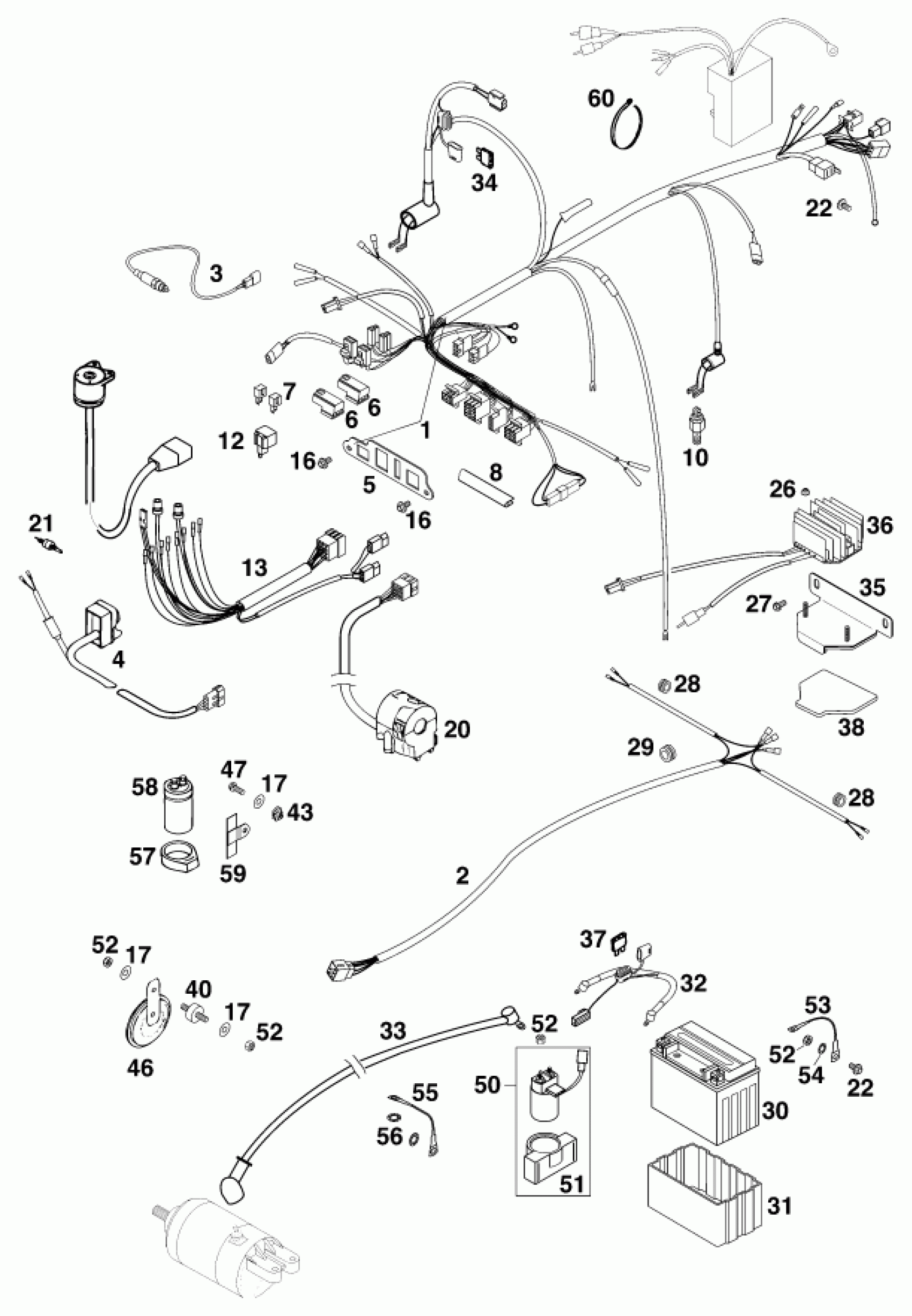

KTM 640 ADVENTURE-R D <1998> WIRING HARNESS Diagram

#

Description
Price

0

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

0

Cable tie 200/4.6mm black

44011076200

Unavailable

1

* MAIN WIRING HARNESS ADV. '98

58211075100

Unavailable

2

WIRING HAR. REAR LC4-E/DUKE'97

58411176000

Unavailable

3

CLUTCH SWITCH '96

58411049000

Unavailable

4

*START-STOP SWITCH ADVENTURE97

58211074000

Unavailable

5

BRACKET FOR PLUGS ADVENTURE'97

58211083000

Unavailable

6

STARTER RELAY '96

58411057000

Unavailable

7

DIODE S3H-15 97

58411096100

Unavailable

8

EDGE PROTECTOR PER METER

58312085100

Unavailable

10

REAR BRAKE LIGHT SWITCH '

50311051000

Unavailable

12

FLASHER UNIT 97

44611207200

Unavailable

13

WIRING HAR. F.CONTROLS ADV.'97

58211078000

Unavailable

16

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

17

WASHER DIN0125-A 6,4

0125060003

Unavailable

20

LIGHT SWITCH CPL. CEV ADV.'97

58211070000

Unavailable

21

FRONT BRAKE LIGHT SWITCH

51011050000

Unavailable

22

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

26

SELF LOCKING NUT M6

56509064000

Unavailable

27

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

28

RUBBER SLEEVE D=6MM OPEN

57511027000

Unavailable

29

rubber grommet D=8mm open

31008060000

Unavailable

30

BATTERY 12V 8AH '96

58411053000

Unavailable

31

BATTERY COVER 96

58411053050

Unavailable

32

BATTERY CABLE 190MM 10A '97

58411059150

Unavailable

33

STARTERCABLE 700 MM '97

58411059100

Unavailable

34

FUSE 5 A

58011109005

Unavailable

35

BATTERY BRACKET LC4-E/DUKE'97

58411055100

Unavailable

36

VOLT.REGULATOR-RECTIFIER 12V

58411034100

Unavailable

37

FUSE 10 A

58011109010

Unavailable

38

METAMOLL FOR BATTERY BRACKET

58411055150

Unavailable

40

RUBBER GROMMET 20X10-M6X12 (2)

49001426000

Unavailable

43

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

46

DC HORN 12V NIKKO

54511060100

Unavailable

47

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

50

STARTER RELAY WITH HOLD.RUBBER

58411058000

Unavailable

51

HOLD. RUBBER FOR STARTRELAY

58411058050

Unavailable

52

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

53

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

54

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

55

GROUND CABLE D=8MM L=140MM '97

58411097200

Unavailable

56

CONTACT WASHER M8 VSV-K8

58411098000

Unavailable

57

CAPACITOR BRACKET

54511048000

Unavailable

58

CONDENSATOR 25V, 10.000 MF

49111435100

Unavailable

59

BRACKET FOR CAPACITOR

54611448000

Unavailable

60

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable
