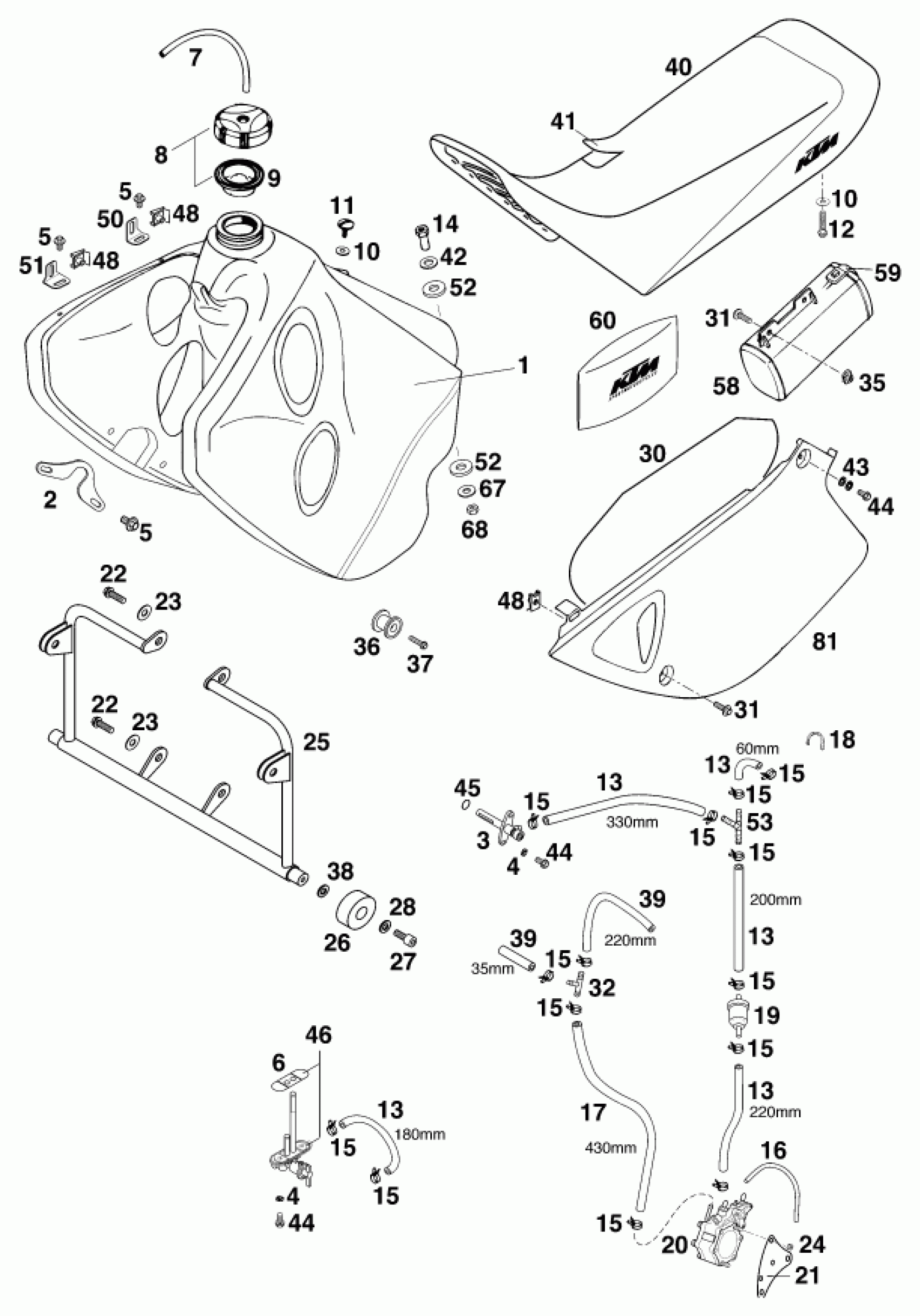

KTM 640 ADVENTURE-R D <1998> TANK, SEAT Diagram

#

Description
Price

0

BRACKET R/S TOP '97

58211001061

$11.82

0

SIDE COVER ORANGE R/S '97

5830804200004

$56.67

1

% GASTANK 30LIT. NYLON ADV. '

5820701300006

Unavailable

2

BRACKET FOR 30 LITER TANK

58507023000

$6.62

3

FUEL COCK CPL. SM. RALLYE'96

58507003000

$26.55

4

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

5

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

6

GASKET FUEL COCK MIKUNI

58307106100

$6.82

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

TANK CAP CPL. LARGE

56007008144

$30.72

9

GASKET FOR TANK CAP

56007009100

$6.38

10

WASHER DIN0125-A 6,4

0125060003

$1.49

11

OVAL HEAD SCREW M6X15

58007044000

$4.35

12

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

13

FUEL HOSE VITON 7X2MM

58007016001

Unavailable

14

SPECIAL NUT M8

58307014000

$6.26

15

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

16

PVC-HOSE 5 X 8 MM

31007007001

Unavailable

17

HOSE 6X10 PER METER

58205035001

Unavailable

18

SPRING FOR FUEL HOSE

58007016002

Unavailable

19

FUEL FILTER ELEMENT

58312099052

$16.85

20

FUEL PUMP MIKUNI RALLYE

58312093000

$90.16

21

fuel pump braket

58312095100

Unavailable

22

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

23

Washer DIN9021-A 6.4

0021060003

$2.05

24

Self locking nut DIN 985 M5

0985050003

$2.05

25

BRACKET FOR 30 LITER TANK'97

58512092000

$30.00

26

TANKROLL 13X36X16

50107015000

$4.39

27

AH SCREW DIN0912-M 6X16

0912060163

$1.49

28

WASHER DIN0125-A 6,4

0125060003

$1.49

30

HEAT PROTECTOR

58308041050

$12.86

31

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

32

T-CONNECTION 5MM TS5 FOR ADV.

58405030000

Unavailable

35

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

36

TANK BUSHING CPL. 12 X 34 X 25

58307113250

$10.20

37

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

38

WASHER 6 X 12 X 3

12011016000

$1.49

39

ND-HOSE 4X9 PER METER

58405029001

Unavailable

40

SEAT WIDE ADVENTURE '98

58207040200

Unavailable

41

* SEAT COVER BLUE/ORANGE ADV.

58207040250

Unavailable

42

WASHER 10,5 X 25 X 1,5

58307019000

$2.05

43

Pair of washers M6 NORDLOCK

50233041000

$4.11

44

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

45

O-RING 11X1,8 NBR 70

55007006200

$2.05

46

FUEL COCK CPL.MIKUNI CK-69 '96

51107004000

$69.37

48

clip nut M6

54603048100

$4.11

50

BRACKET L/S TOP '97

58211001060

$12.53

51

BRACKET BELOW FOR MASK '97

58211001062

$12.31

52

INSOLATE WASHER 12X28X3

51005067100

$2.05

53

T-CONNECTOR FOR FUEL LINE

58007015000

$1.49

58

TOOL BOX CPL. '92

58012058000

$35.48

59

RUBBER FOR TOOL BOX '92

58012058050

$6.98

60

ORIGINAL EQUIPMENT TOOL KIT

58329099000

Unavailable

67

WASHER DIN9021-A 8,4

0021080003

$1.49

68

Hexagon nut DIN934 M8

0934080003

$2.05

81

SIDE COVER ORANGE L/S '98

5830804100004

$32.05
