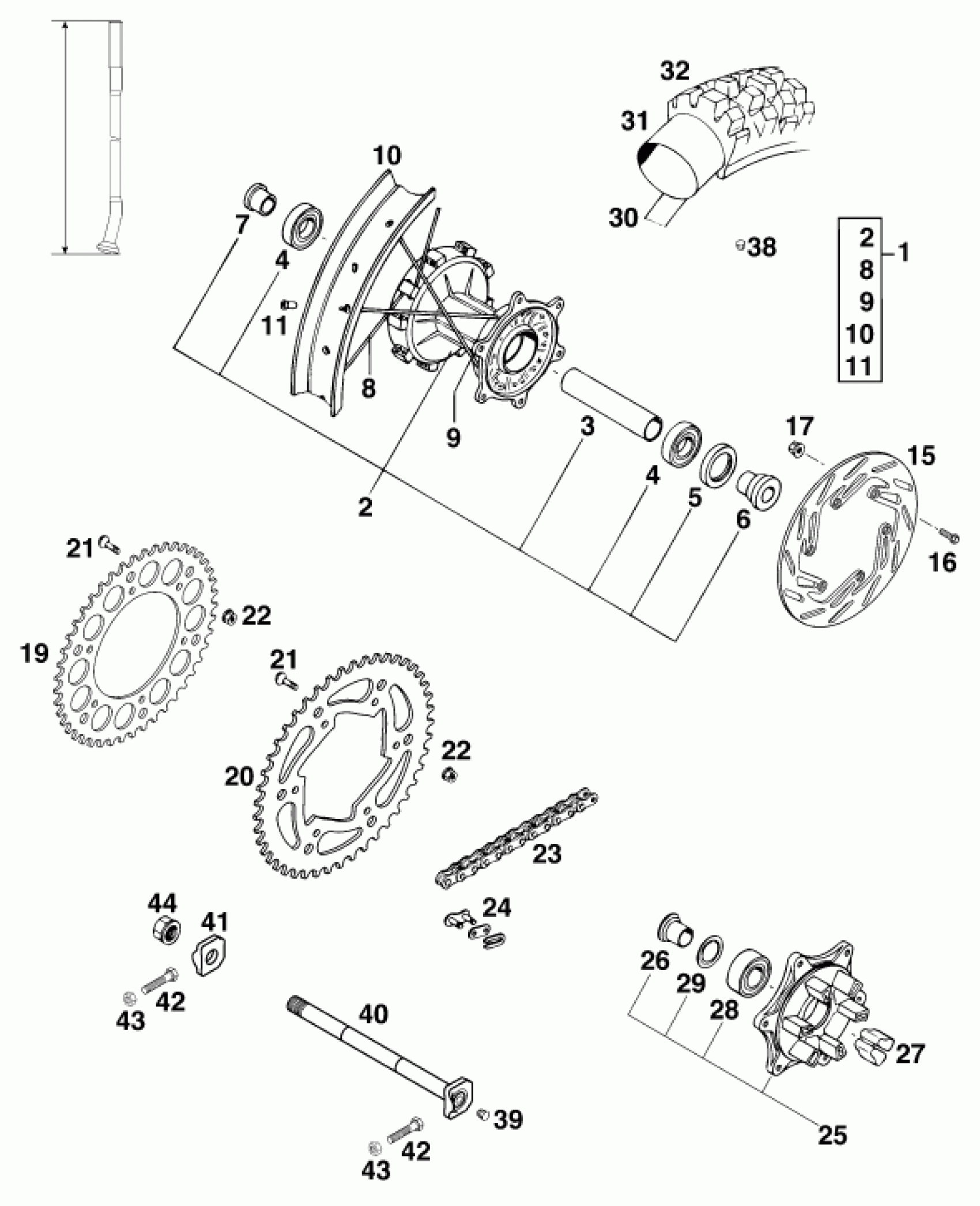

KTM 640 ADVENTURE-R D <1998> REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL 2,50X18'' DID

58310001044

$648.96

2

58310010044

Unavailable

3

BEARING SPACER TUBE L=98,3MM

54610411100

Unavailable

4

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

5

SHAFT SEAL RING 32X52X7 B

0760325272

$16.54

6

BUSHING FOR HUB

54610016000

$32.90

7

BUSHING FOR REAR DAMPED HUB

54610416300

$20.09

8

SPOKE M5X223-10G 18''

54610471000

$5.23

9

SPOKE M5X200-10G 18'' DDE

58310071200

Unavailable

10

REAR RIM 2,50X18'' DID

58010470100

$182.01

11

STEEL NIPPLE M5

56509072000

Unavailable

15

REAR BRAKE DISK 220MM COUNTERS

58010060600

$183.53

16

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

17

SELF LOCKING NUT M6

56509064000

Unavailable

19

REAR SPROCKET 38-T

58310051038

Unavailable

19

REAR SPROCKET 42-T

58310051042

Unavailable

19

REAR SPROCKET 40-T

58310151040

$63.10

19

REAR SPROCKET 45-T

58310151045

Unavailable

20

REAR SPROCKET 48-T

58310151048

Unavailable

20

REAR SPROCKET 50-T

58310151050

Unavailable

20

REAR SPROCKET 52-T

58310151052

Unavailable

21

SPROCKET SCREW-AH M 8X26

54510052000

Unavailable

22

54310086000

Unavailable

23

50010065100

Unavailable

23

X-R.CHAIN 5/8X1/4''/M W.LINK

50010065101

Unavailable

24

MASTER LINK 5/8X1/4'' X-RING

50010066100

$13.27

25

SPROCKET SUPPORT CPL.

58310050044

Unavailable

26

BUSH. F.SPROCKETSUPPORT L=25MM

54610417300

$17.38

27

Rubber damping block 91

54610459000

$8.03

28

GR. BALL BEARING 3205B-2RSRTNG

0625032057

$74.67

29

SEAL WASHER 3205 AV

54610018000

$9.34

30

52010073000

Unavailable

31

HOSE 4.00/4.50/120/130-18''

54010075000

Unavailable

32

TYRE 140/80-18'' 70R ENDURO 3

58210074000

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

$3.08

40

WHEEL SPINDLE REAR CPLL=264MM

50210085044

$70.38

41

CHAIN TENSIONER '95

56510084100

$11.28

42

HH SCREW M8X40 WS=10

50203030090

$4.11

43

Hexagon nut DIN934 M8

0934080003

$2.05

44

Hexagon nut M20x1.5

50310099000

$11.30
