INSTRUMENTS / LOCK SYSTEM

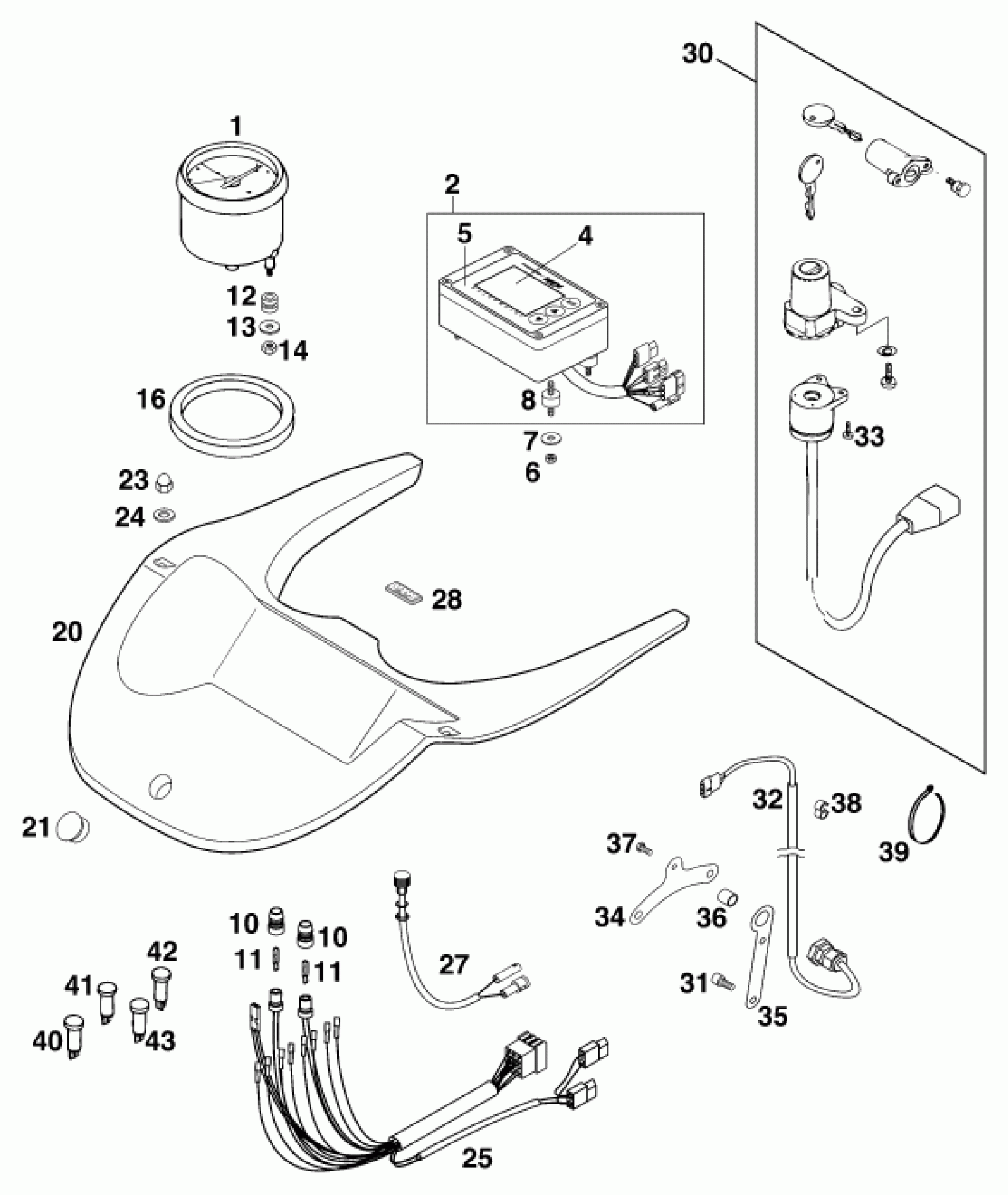

KTM 640 ADVENTURE-R D <1998 INSTRUMENTS / LOCK SYSTEM Diagram
#
Description
Price
0
Cable tie 200/4.6mm black
44011076200
Unavailable
1
% TACHOMETER 10000 RPM ADV. '
58214075000
Unavailable
2
TRIPMASTER IMO-100R CPL. '97
58212085000
Unavailable
4
DISPLAY LENS FOR TRIPM.ADV.'97
58212085050
Unavailable
5
KEYBOARD FOIL F.TRIPM. ADV.'97
58212085051
$38.72
6
SELF LOCKING NUT DIN0985-M 4
0985040003
$1.49
7
WASHER DIN9021-A 4,3
0021040003
$1.49
8
RUBBER GROMMET 15X8-M4X10 (2)
58212085052
Unavailable
10
REDUCTION RUBBER
58311088100
$1.77
11
BULB 12V 1,2W (W2X4,6D)
49111425000
$2.05
12
RUBBER FOR TACHOMETER ADV.'97
58214079000
$1.49
13
washer DIN 9021 A - 5.3
0021050003
$1.49
14
Self locking nut DIN 985 M5
0985050003
$2.05
16
FOAM RUBBER RING 81x97x10
58311054000
$2.34
20
COCKPIT COVER ADVENTURE '97
58214070000
Unavailable
21
PVC CAP D=22MM
71001012000
$3.08
23
HH CAP NUT DIN1587-M 6 BLACK
0587060001
$1.49
24
WASHER 6X17X1,5 BLACK
56032005100
$1.49
25
WIRING HAR. F.CONTROLS ADV.'97
58211078000
Unavailable
27
CONTRAST POTENTIOMETER ADV.'97
58212083000
Unavailable
28
PLATE "KTM" FOR ADVENTUR '97
58214071000
Unavailable
30
*IGNITION-HELMET LOCK ADV. '97
58211066000
Unavailable
31
AH SCREW DIN0912-M 5X10
0912050103
$1.49
32
SENSOR CABLE CPL. ADVENTURE'97
58212084000
Unavailable
33
FLAT HEAD SCREW DIN7985-M 4X12
0985040123
$1.49
34
BRACKET SENSOR MAGNET ADV. '97
58214050050
$7.79
35
BRACKET FOR SENSOR ADV. '97
58214050051
Unavailable
36
SENSOR MAGNET FOR ADVENTURE'97
58214050052
$16.99
37
HH SCREW DIN0933-M 4X 8
0933040083
$1.49
38
CLAMP D=6/8MM, BLACK
55011022000
Unavailable
39
CABLE TIE 100/2,5MM BLACK
44011076100
Unavailable
40
HIGH BEAM INDICATOR LIGHT BLUE
58011021200
$9.66
41
NEUTRAL INDICATOR LIGHT GREEN
58011023200
$8.13
42
TEMPERATURE WARNING LIGHT RED
58011022200
$8.62
43
FLASHER INDICATOR LIGHT GREEN
58011024200
$8.96
