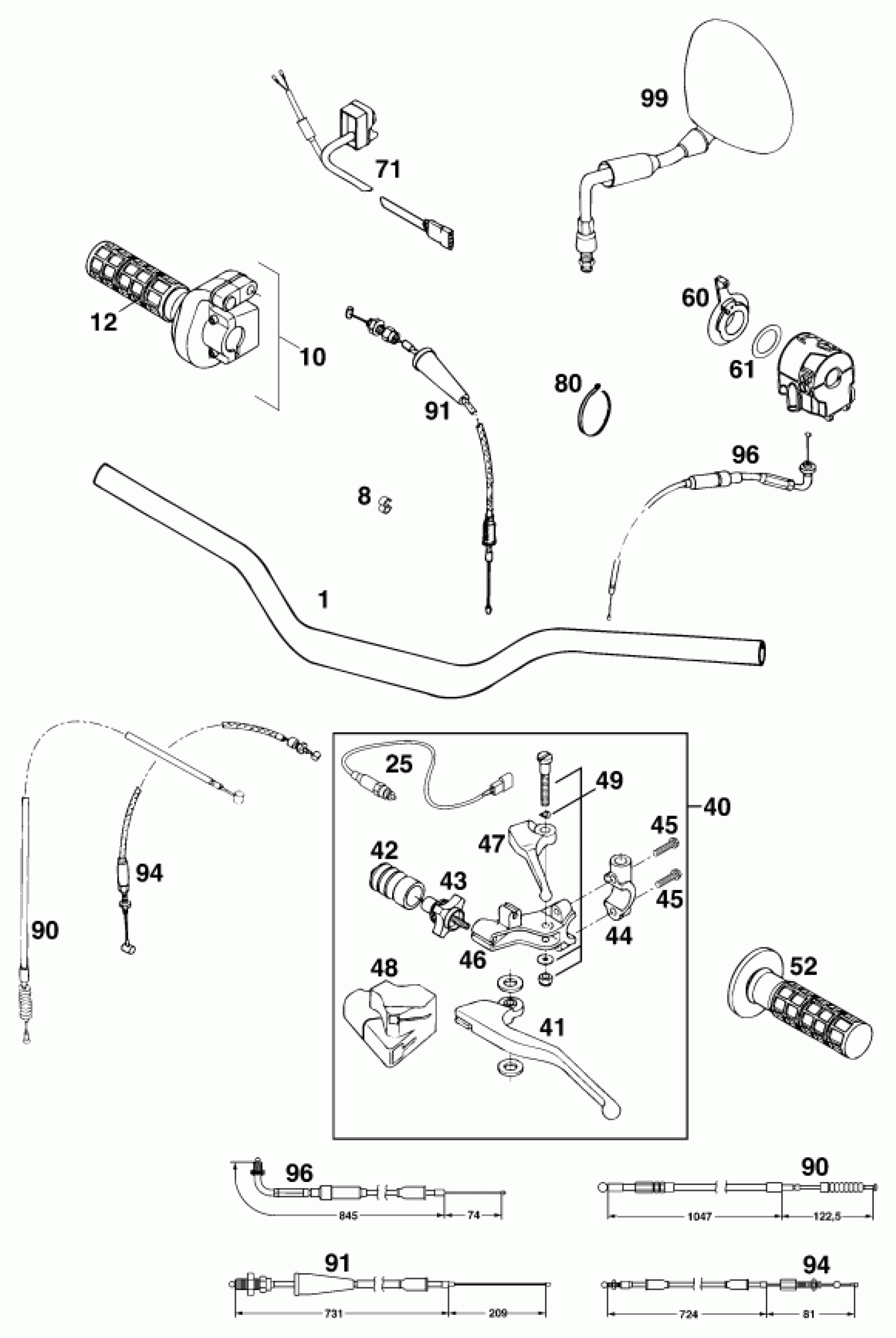

KTM 640 ADVENTURE-R D <1998 HANDLEBAR, CONTROLS Diagram

#

Description
Price

0

Cable tie 200/4.6mm black

44011076200

Unavailable

0

* REAR MIRROR R/S '95

58312140100

Unavailable

1

ALU-HANDLEBAR SX,SC,ADVENT.'97

58302001300

Unavailable

8

CLAMP D=6/8MM, BLACK

55011022000

Unavailable

10

THROTTLE GRIP CPL.DOMINO '93

58302010000

$89.51

12

TWIST GRIP COVER DOMINO

58302003000

$27.76

25

CLUTCH SWITCH '96

58411049000

$32.81

40

CLUTCH LEVER CPL. DOMINO '97

58402040100

Unavailable

41

CLUTCH LEVER LOOSE SILVER '97

58402042000

$40.10

42

CLUTCH LEVER BOOT '95

58302126000

$5.23

43

ADJUSTMENT SCREW CPL.M7

58302043000

$22.06

44

CLAMP MIRROW M10x1,25

58302044000

$13.36

45

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

46

JOINT (PIVOT) DOMINO '96

58402041000

$39.45

47

DECOMPRESSION LEVER LOOSE

58302047000

$12.05

48

PLASTIC COVER '

58402048000

Unavailable

49

LEVER SCREW CPL.

58302049000

$7.00

52

FIXED GRIP DOMINO '93

58302052000

$27.76

60

CHOKE LEVER DOMINO '94

58302050100

$10.46

61

thrust wash DIN0988-25x35x0,5

0988253505

$4.11

71

*START-STOP SWITCH ADVENTURE97

58211074000

Unavailable

80

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

90

CLUTCH CABLE 125/LC4 TSK '

50202090200

Unavailable

91

DADO FRENATO M5

58202091000

Unavailable

94

DECOMPRESSION CABLE LC4 '93

58302094000

$29.35

96

CHOKE CABLE LC4 '94

58302095100

$32.62

99

REAR MIRROR L/S '95

58312040100

$55.06
