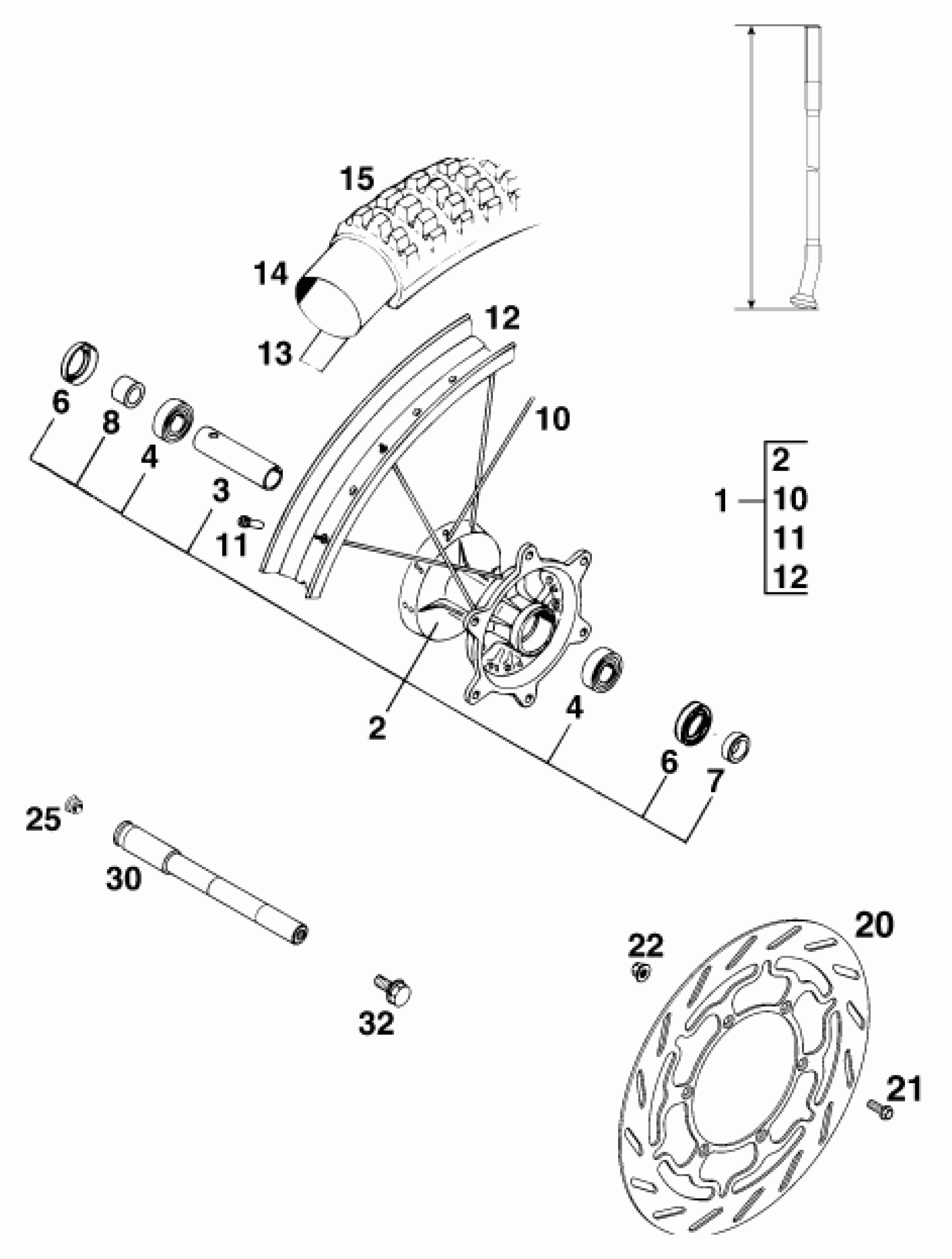

KTM 640 ADVENTURE-R D <1998> FRONT WHEEL Diagram

#

Description
Price

1

% FRT WHEEL 1,6X21'' DID SX'9

56509001744

$327.36

2

FRONT WHEEL HUB SILVER SX'94

56509010944

Unavailable

3

BUSHING SPACER TUBE 17,5X22X82

56509011400

$17.26

4

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

6

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$16.79

7

SPACER RING 17X25X7,5

54609051000

Unavailable

8

SPACER BUSHING 17X25X15

54609051100

$6.55

10

SPOKE M5X234-15G 21'' DDE

58309071234

$4.35

11

STEEL NIPPLE M5

56509072000

Unavailable

12

FRONT RIM 1,6X21'' DID

54609070200

$205.60

13

RIM BAND 21''

51009073000

Unavailable

14

51009075000

Unavailable

15

TYRE 90/90-21'' 54S ENDURO 3

58209074000

Unavailable

20

BRAKE DISK FRONT D=300MM '96

58309060100

$287.50

21

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

22

SELF LOCKING NUT M6

56509064000

Unavailable

25

PLUG SFL13

55009086000

$2.05

30

FRONT AXLE L=235MM

50309081000

$60.05

32

HH COLLAR SCREW M10X20 WS=17

49032011000

$5.88
