FRONT FORK, TRIPLE CLAMP

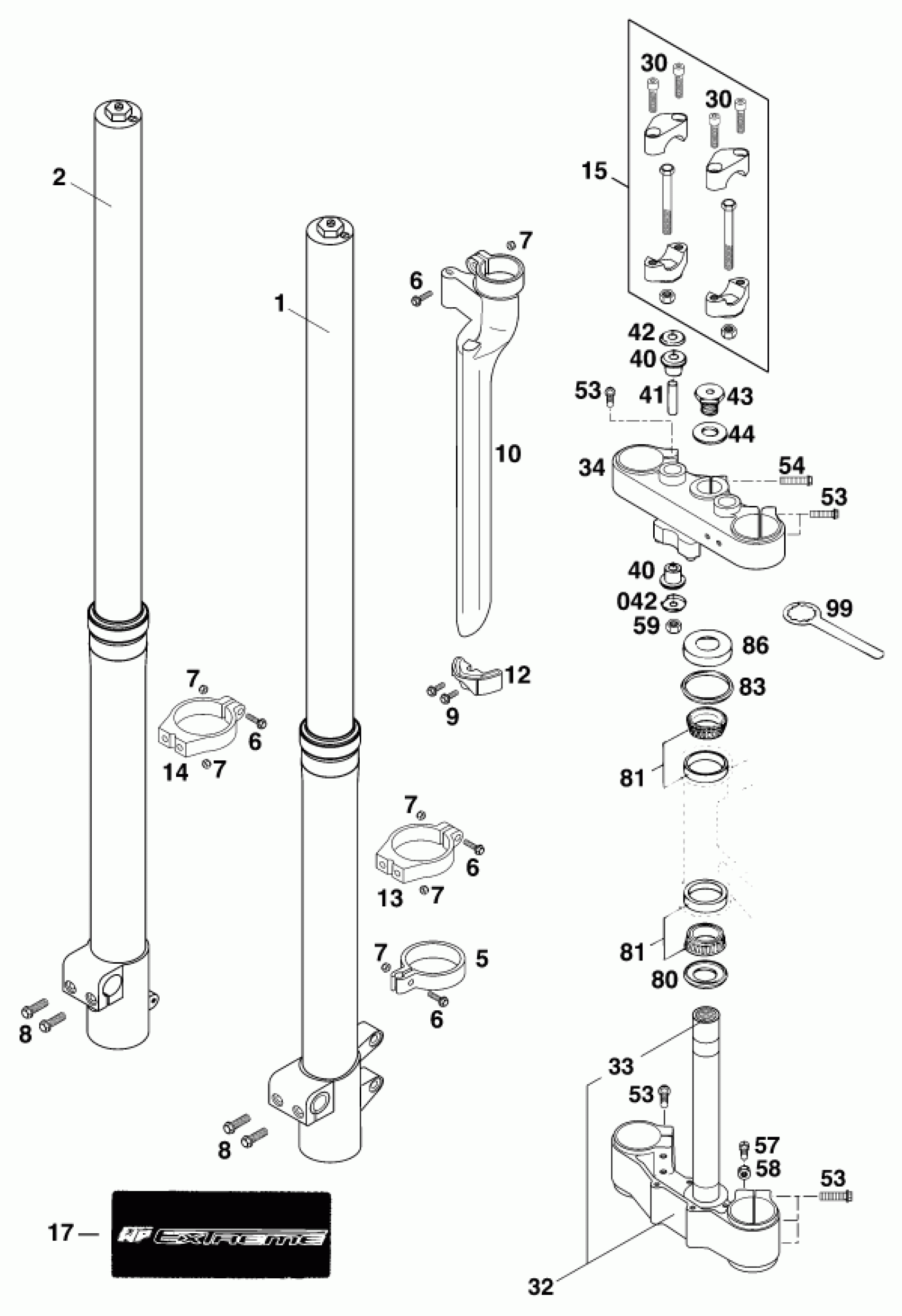

KTM 640 ADVENTURE-R D <1998 FRONT FORK, TRIPLE CLAMP Diagram
#
Description
Price
0
FORK PROTECTOR R/S BLACK '97
50301093000
$10.03
0
FORK PROTECTION GUIDE R/S '97
5460139000030
$3.44
1
% FK LEG L/S WP "0918S755" '98
58201001100
Unavailable
2
% FORK LEG R/S WP "0918S755" '
58201002100
Unavailable
5
SP.CABLE GUIDE MARZ.50,WP50'97
50301070000
$2.86
6
HH COLLAR SCREW M 5X20 WS=8
0015050203
$2.05
7
Self locking nut DIN 985 M5
0985050003
$2.05
8
HH COLLAR SCREW M 8X25 WS=10
0015080253
$2.05
9
HH COLLAR SCREW M 5X16 WS=8
0015050163
$2.05
10
FORK PROTECTOR L/S BLACK '97
50301092000
$10.03
12
FORK PROTECTION GUIDE L/S '97
5460129000030
$3.44
13
CLAMP PROTECTOR GUIDE SXC, ADV
50301090150
Unavailable
14
CLAMP PROTECTOR GUIDE '98
50301090250
$6.39
15
SUPPORTKIT F.HANDL.DUKE,ADV'97
58402001050
Unavailable
17
DECAL ''WP EXTREME''
50308093000
$16.70
30
AH SCREW DIN0912-M 8X35
0912080353
$2.05
32
BOT.TRIPLE CLAMP X=16MM/D=50MM
50301032016
$147.13
33
FORK TUBE L=244 '91
50101033100
$85.17
34
TOP TRIPLE CLAMP X=16MM/D=50MM
58201034016
Unavailable
40
rubber bushing
56401040000
$5.23
41
SPACER TUBE 10,2X12X44
56401041100
$5.88
42
washer 10.5x32x2
56401042000
$4.11
42
WASHER 10,5X31
56401142000
$4.11
43
HH SCREW M20X1,5
56401043000
$19.86
44
WASHER 21X38X3
56401044000
$5.00
53
HH COLLAR SCREW M 8X30 WS=10
0015080303
$3.08
54
HH COLLAR SCREW M 8X35 WS=10
0015080353
$4.11
57
HH SCREW DIN0933-M 8X25
0933080253
$2.05
58
Hexagon nut DIN934 M8
0934080003
$2.05
59
SELF LOCKING NUT DIN0985-M10
0985100003
$2.05
80
O-RING SUPPORT W. SEALING LIP
54601084100
$19.35
81
TAPERED ROLLER BEARING CPL.
54201081000
$51.04
83
STEARING HEAD GASKET TOP
54601184000
$7.10
86
STEERING HEAD COVER
54201086000
$8.50
99
RING WRENCH WS=32
54212035000
Unavailable
