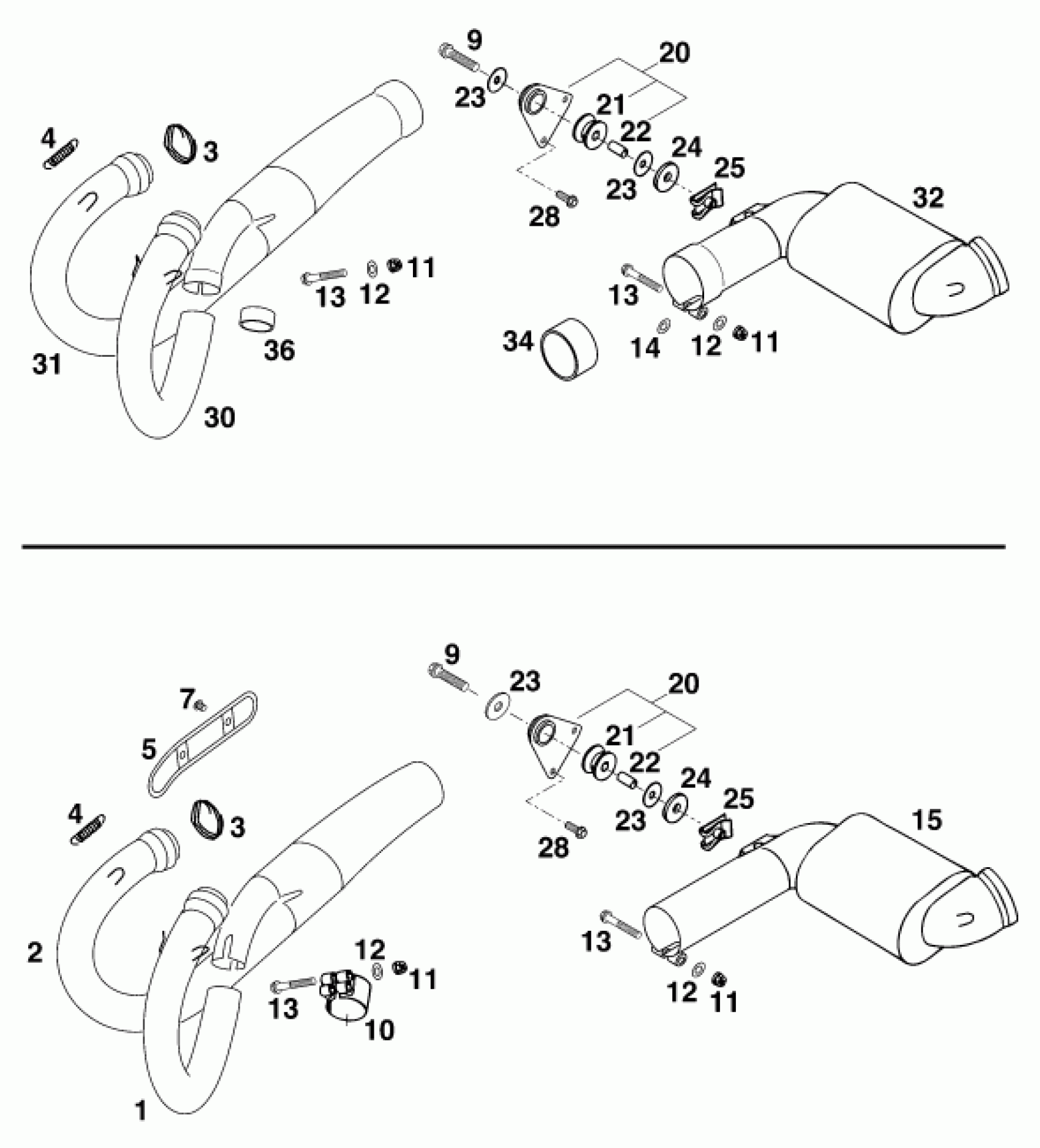

KTM 640 ADVENTURE-R D <1998 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST PIPE L/S ''KTM584'' '

58405007100

Unavailable

2

EXHAUST PIPE R/S ''KTM584'' '

58405008100

$123.38

3

CERAMIC LINE 1 METER

58305053001

$6.72

4

RETURN SPRING L=38 MM

54309036000

$5.23

5

HEAT PROTECTOR FRONT DUKE '96

58405011000

Unavailable

7

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

9

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

10

* CLAMP WH CHROMIUM-PLATED'94

58005151154

Unavailable

11

SELF LOCKING NUT M 6 COPPER

51010086000

$1.57

12

WASHER DIN0125-A 6,4

0125060003

$1.49

13

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

14

WASHER 6 X 12 X 3

12011016000

$1.49

15

PRESILENCER "KTM V2" '97

58405050100

Unavailable

20

% BRACKET-PRE SILENCER CPL. 95

58305065044

$36.38

21

damp. component silicone grey

54305068100

$8.31

22

Spacer bushing 8.4X12X16

56505069000

$4.11

23

WASHER DIN9021-A 8,4

0021080003

$1.49

24

INSOLATE WASHER 8,5X28X3

51005067000

$2.05

25

RANGE CHANGE METAL NUT M8

54603048000

$4.11

28

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

30

EXH PIPE L/S ''KTM584'' '98

58405007200

Unavailable

31

EXHAUST PIPE R/S "KTM584" '98

58405008200

Unavailable

32

PRESILENCER ''KTM V2'' '

58405050200

Unavailable

34

Graphite ring 45X50X25

58405005001

$16.92

36

GRAPHIT RING 32X37X20

58405005000

$16.92
