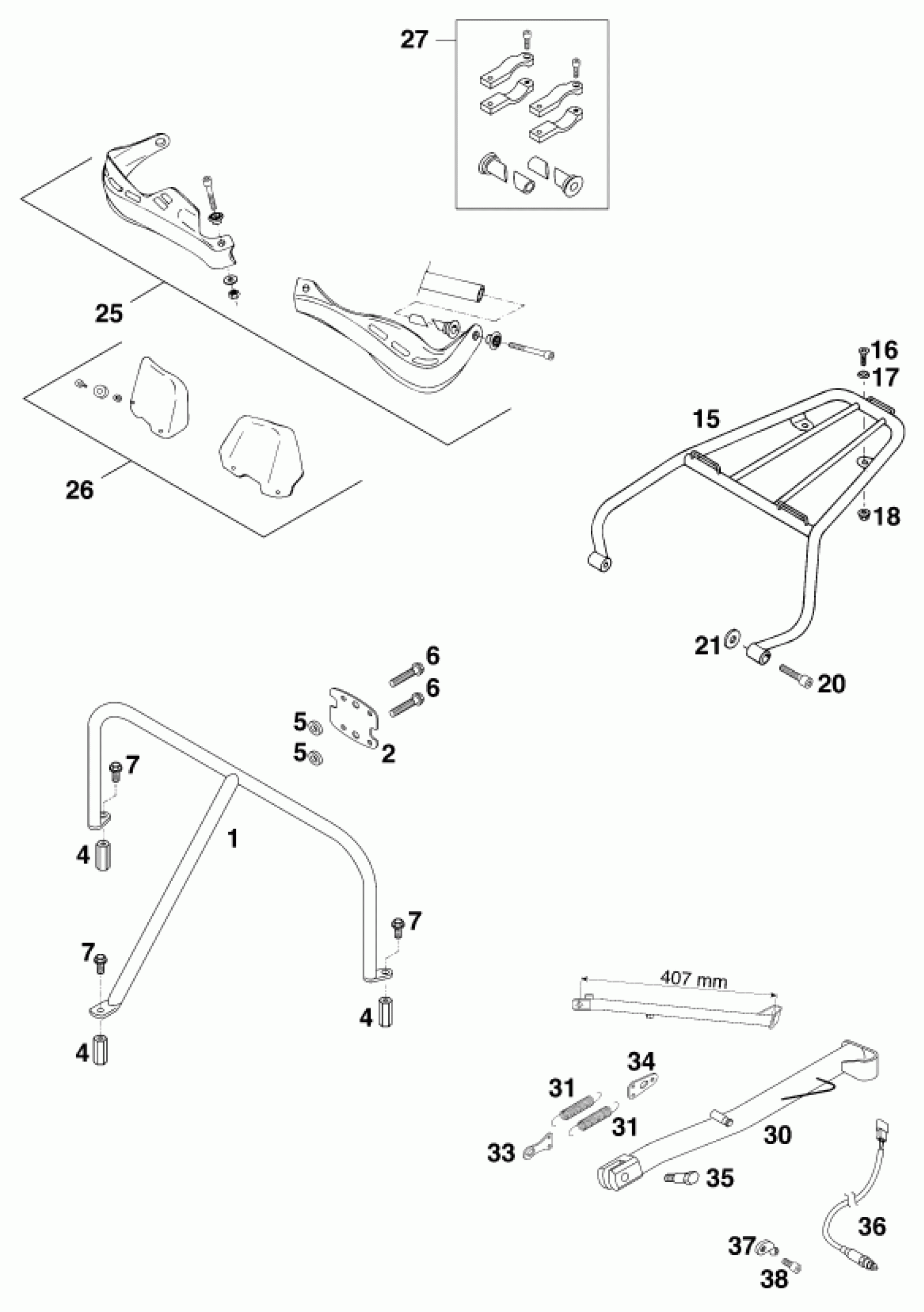

KTM 640 ADVENTURE-R D <1998> ACCESSORIES Diagram

#

Description
Price

1

% ROADBOOK CARRIER 620 ADV.'

58212090000

Unavailable

2

BRACKET FOR ROADBOOKSWITCH '97

58202070000

Unavailable

4

HH NUT M6 L=25MM WS=10

73001039100

$2.07

5

WASHER 6 X 12 X 3

12011016000

$1.49

6

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

7

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

15

BAGGAGE CARRIER ORANGE ADV.

5831201100004

$76.05

16

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

17

WASHER 6MM

40006006000

$1.49

18

SELF LOCKING NUT M6

56509064000

Unavailable

20

AH SCREW DIN0912-M 6X30

0912060303

$2.05

21

STEEL WASHER 6,4X17X3

50232050001

$5.23

25

% HAND GUARD CPL.L+R/S BLACK

5020207904430

Unavailable

26

SCREEN CPL.L+R/S BLACK

5020207905030

Unavailable

27

FASTENING KIT HAND GUARDS CPL.

50202079051

Unavailable

30

*SIDESTAND CPL.407MM ADVENT'97

58203023000

Unavailable

31

STAND SPRING SHORT

10003021000

$9.44

33

*SPRING SHACKLE TOP FOR SIDEST

51103023054

Unavailable

34

SPRING SHACKLE BELOW F.SIDEST.

51103023055

Unavailable

35

58203027000

Unavailable

36

CLUTCH SWITCH '96

58411049000

$32.81

37

SWITCH BRACKET F. ADVENTURE'97

58203029000

Unavailable

38

AH SCREW DIN0912-M10X16

0912100160

Unavailable
