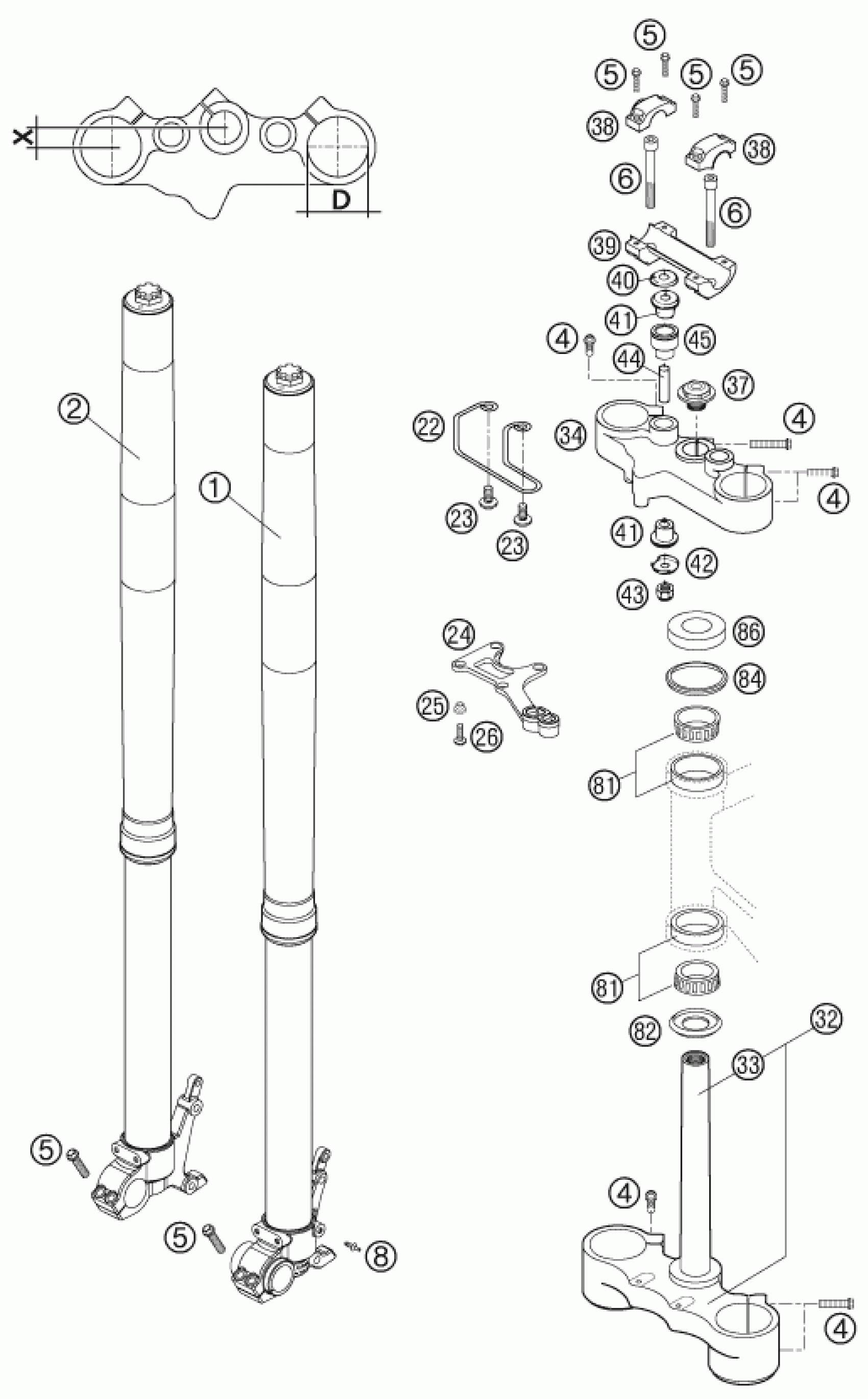

KTM 640 ADVENTURE-R 2004 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK 4860 MXMA ADV. LEFT 04

1418Y753LS

Unavailable

2

FORK 4860 MXMA ADV. RIGHT 04

1418Y753RS

Unavailable

4

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

5

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

6

AH SCREW DIN6912-M10X85

0984100856

$9.53

8

PLASTIC CAP FOR M6 03

60003088000

$1.49

22

BRAKE HOSE GUIDE 2001

58213010150

$7.34

23

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

24

BRAKE HOSE GUIDE LOWER 03

60008019000

$5.48

25

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

26

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

32

BOT.TRIPLE CLAMP X=18MM/D=60MM

58201032118

$282.69

33

FORK TUBE L=244 '91

50101033100

$85.17

34

TOP TRIPLE CLAMP X=18MM/D=54MM

58401034318

$176.53

37

STEER.HEAD SCREW M20X1,5 WS=27

50301036000

$10.38

38

HANDLEBAR CLAMP D=28MM 2000

59001038200

$27.76

39

HANDLEBAR SUPPORT 28MM SC'99

59001039100

$147.25

40

washer 10.5x32x2

56401042000

$4.11

41

rubber bushing

56401040000

$5.23

42

WASHER 10,5X31

56401142000

$4.11

43

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

$2.05

44

SPACER TUBE 10,2X12X62 04

58201041000

$2.42

45

HANDLEBAR RISER 04

59001043000

$9.29

81

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

82

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

86

STEERING HEAD COVER

54201086000

$8.50
