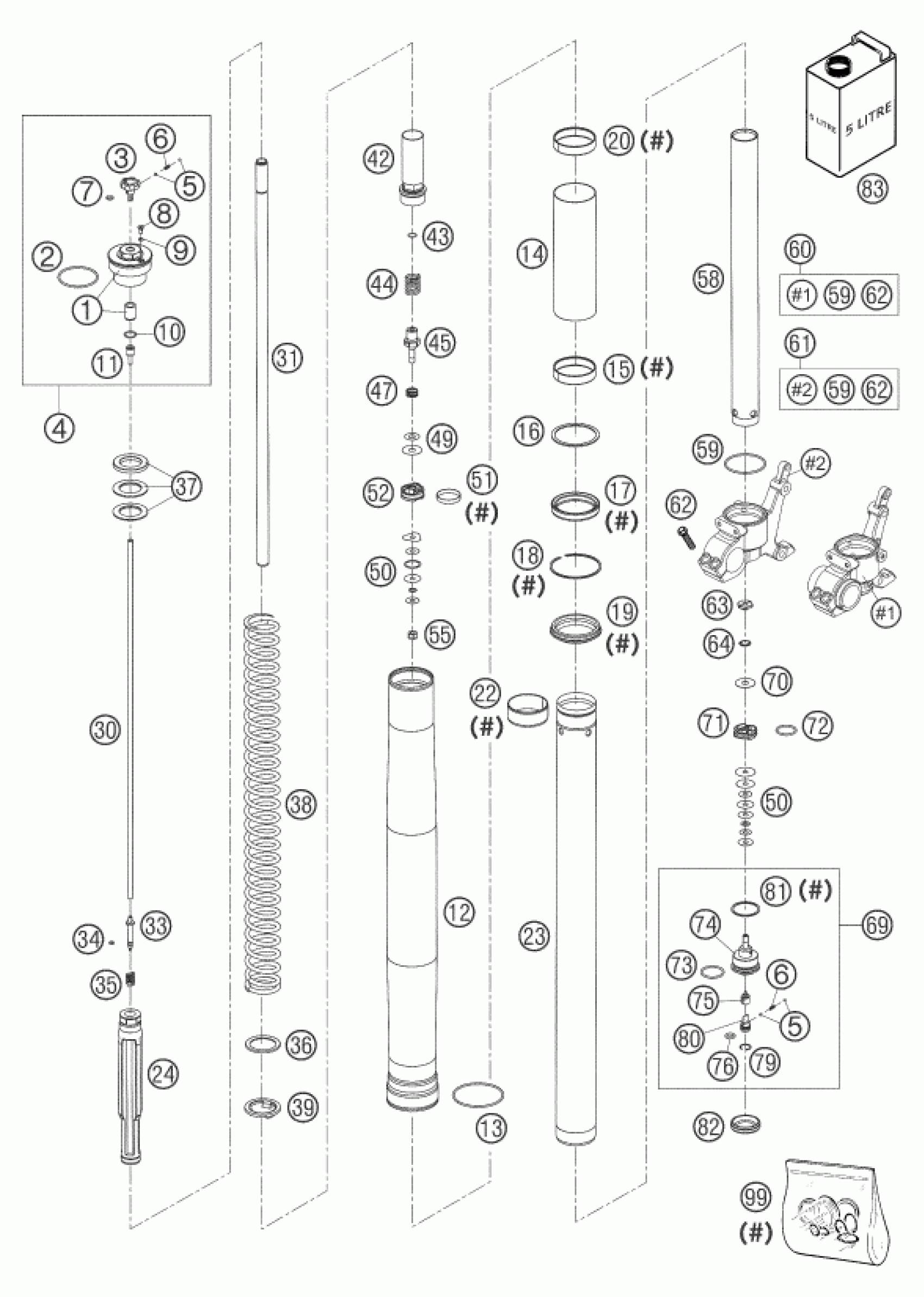

KTM 640 ADVENTURE-R 2004 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

SREW CAP+BUSH M51X1,5

48600020S

$39.06

2

O-ring 45x2 NBR70 siliconized

46810340

$1.49

3

Adjuster rebound

48600018

$4.11

4

SCREW CAP M51X1,5 CPL.

48600020S1

$98.26

5

Steel ball d3

40540603

$1.49

6

Spring (1,7) l7,9

48600028

$3.08

7

O-ring 6x1,5 NBR70

48600044

$1.49

8

Cross flat head screw M4x6

48600058

$1.82

9

O-ring 3,7x1,6 NBR70

48600009

$1.49

10

O-ring 12x1,5 NBR70

48600043

$2.05

11

Tube tap d4x25

48600019

$3.08

12

OUTER TUBE L=577 D=54/60 SM 03

48600268

$443.86

13

Round-wire snap ring 48x2

48600016

$3.08

14

SPACER 50,95X0,85X161,5

48600245

$26.22

15

DU-BUSH 48X52X12

48600205

$32.25

16

Supportwasher 50x57,6x1,5

48600013

$3.08

17

OIL SEAL RING 48X57,8X9,5 03

48600347

$13.64

18

Snap ring SB58x1,5 acc drawing

48600070

$2.05

19

DUST STRIPPER D=48

48600186

Unavailable

20

Guide bushing 48x51x12

48600236

$22.99

22

DU-BUS 47X49X20

48600204

$12.05

23

INNER TUBE D=48 L=595 2003

48600240

$276.38

24

HYDR.STOP L=200MM D=31,9 CPL

48600241S

$65.03

30

ADJUSTMENT TUBE L=492MM

48600094

$15.01

31

PISTONROD 14X11X1 L=526

48600254

$63.06

33

Needle 6x42,6 rebound

48600189

$34.68

34

O-ring 3x1,5 NBR70

48600046

$1.49

35

Spring (7,2) 4-23 needle

48600033

$5.23

36

Washer 32x42x2,5 plastic

48600113

$11.12

37

Preload bush 42x26,5x2,5

48600036

$2.05

37

Preload bush 26,5x42x5

48600037

$4.11

37

Preload bush 26,5x42x1,5

48600053

$4.11

38

SPRING 4,4N/MM SET D=5,1MM

91410006S

$121.01

38

SPRING 4,6N/MM SET D=5,1MM

91410019S

Unavailable

39

Spring retainer 33,5x43x3

48600021

$16.73

42

Screw sleeve M29,3x1 cpl.

48600196S

$82.08

43

O-ring 8x1,25 NBR70 siliconize

48600239

$1.49

44

REBOUND SPRING D=15MM L=34,5MM

48600192

$14.87

45

Tap 6x45 rebound

48600203

$8.37

47

Spring (11,7) 1,5-8 valve

35480377

$2.05

49

CHECK VALVE 8X24X0,1

48600062

$2.05

49

CHECK VALVE 8X18X0,1

48600068

$2.05

49

Shim 8x20x0,10

48600215

$2.05

49

Shim 8x22x0,10

48600216

$2.05

50

Shim 6x24x0,10

48600063

Unavailable

50

Shim 6x22x0,10

48600064

Unavailable

50

Shim 6x20x0,10

48600065

Unavailable

50

Shim 6x24x0,10 delta

48600116

Unavailable

50

Shim 6x14x0,10

40540401

Unavailable

50

Shim 6x16x0,10

40540402

Unavailable

50

Shim 6x18x0,10

40540403

Unavailable

50

SHIM 6X16X0,25

40540414

Unavailable

50

SHIM 6X18X0,25

40540415

Unavailable

50

SHIM 6X8,5X0,10

40540417

Unavailable

50

Shim 6x10x0,30

40540447

Unavailable

50

Shim 6x11x0,30

40541391

Unavailable

50

SHIM 6X14X0,15

40540405

Unavailable

50

SHIM 6X16X0,15

40540406

Unavailable

50

Shim 6x18x0,10

40540403

Unavailable

50

Shim 6x24x0,10

48600063

Unavailable

51

Pistonring 26x28x5

48600060

$5.23

52

Piston 6,05x27,65x12 rebound

48600042

$11.78

55

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$4.11

58

Tube 29.3X1X385 ALU

48600140

$82.49

59

O-ring 46x2 NBR70 siliconized

48600048

$3.08

60

AXLE CLAMP L/S CPL. D=30 04

48600207S

Unavailable

61

AXLE CLAMP R/S CPL. D=34 04

48600208S

Unavailable

62

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

63

Nut valve M6x0,5 h6,5 WAF17

48600163

$3.08

64

Spring (8,5) l6,5 valve

48600202

$2.05

69

TAP COMPRESSION CPL. 03

48600152S1

$37.67

70

Shim 8x24x0,40

48600061

$2.05

71

Piston 6x27,8x9 compression

48600047

$9.81

72

O-ring 21x2 NBR70

46811499

$1.49

73

O-ring 24x2 NBR70

35480320

$1.49

74

TAP COMPRESSION

48600152

$37.67

75

Needle 10x11,6 compression

48600190

$13.64

76

O-ring 8x2 NBR70

48600049

$1.49

79

Round-wire snap ring 12x1 DIN7

48600051

$3.08

80

Adjustment screw slot compress

48600034

$7.35

81

Copper disc 29,5x33,5x1

48600004

$4.11

82

Rubber cap 35x10 NBR80

48600141

$4.11

83

FORK OIL SAE 5

48600211S1

Unavailable

99

REPAIR-KIT GASKET 4860 MXMA 03

R14007

$106.21
